Home >> Volvo >> 2004 >> V70R AWD L5-2.5L Turbo VIN 52 B5254T4 >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Specifications

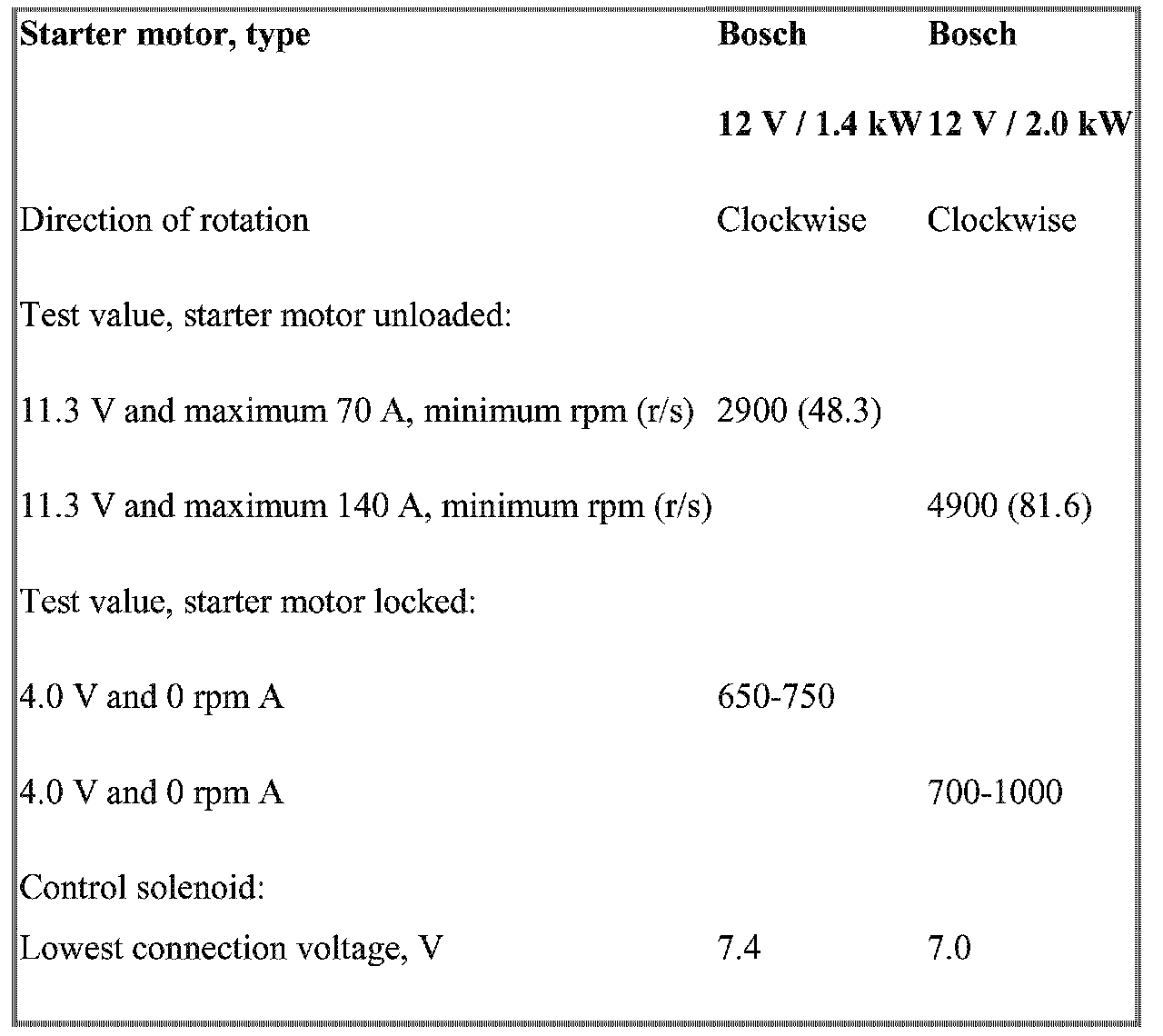

Starter Motor: Specifications





Starter Motor/Control Solenoid

Starter motor

Power Type
1.4 and 1.7 kW Gasoline engines Bosch 12 V
