Electrical Diagrams

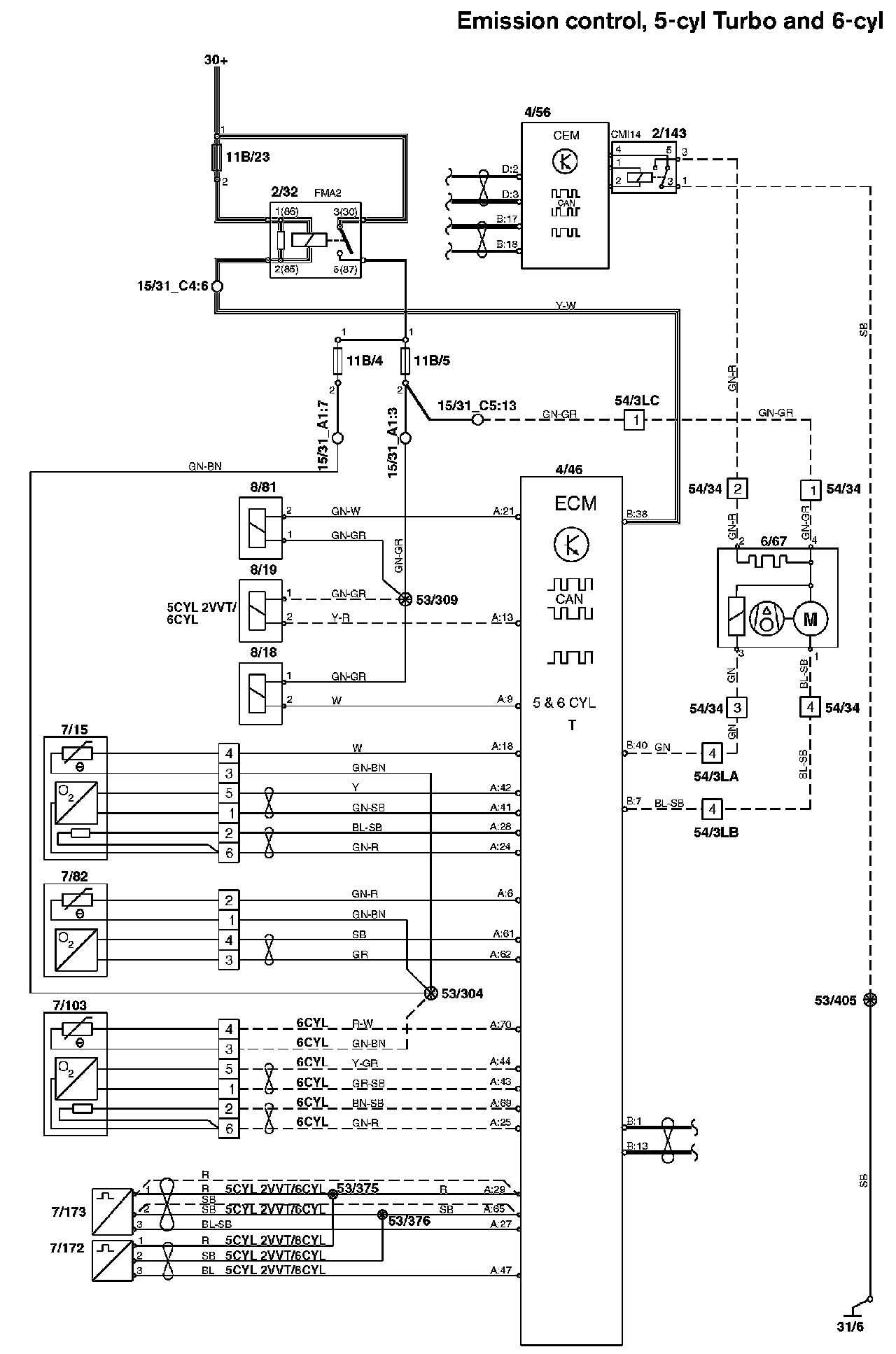

Emission Control, 5-Cyl Turbo and 6-Cyl

Emission Control, 5-cyl Turbo and 6-cyl:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
