Electrical Diagrams

Position/Parking Light
Tail Lights and License Plate Lighting

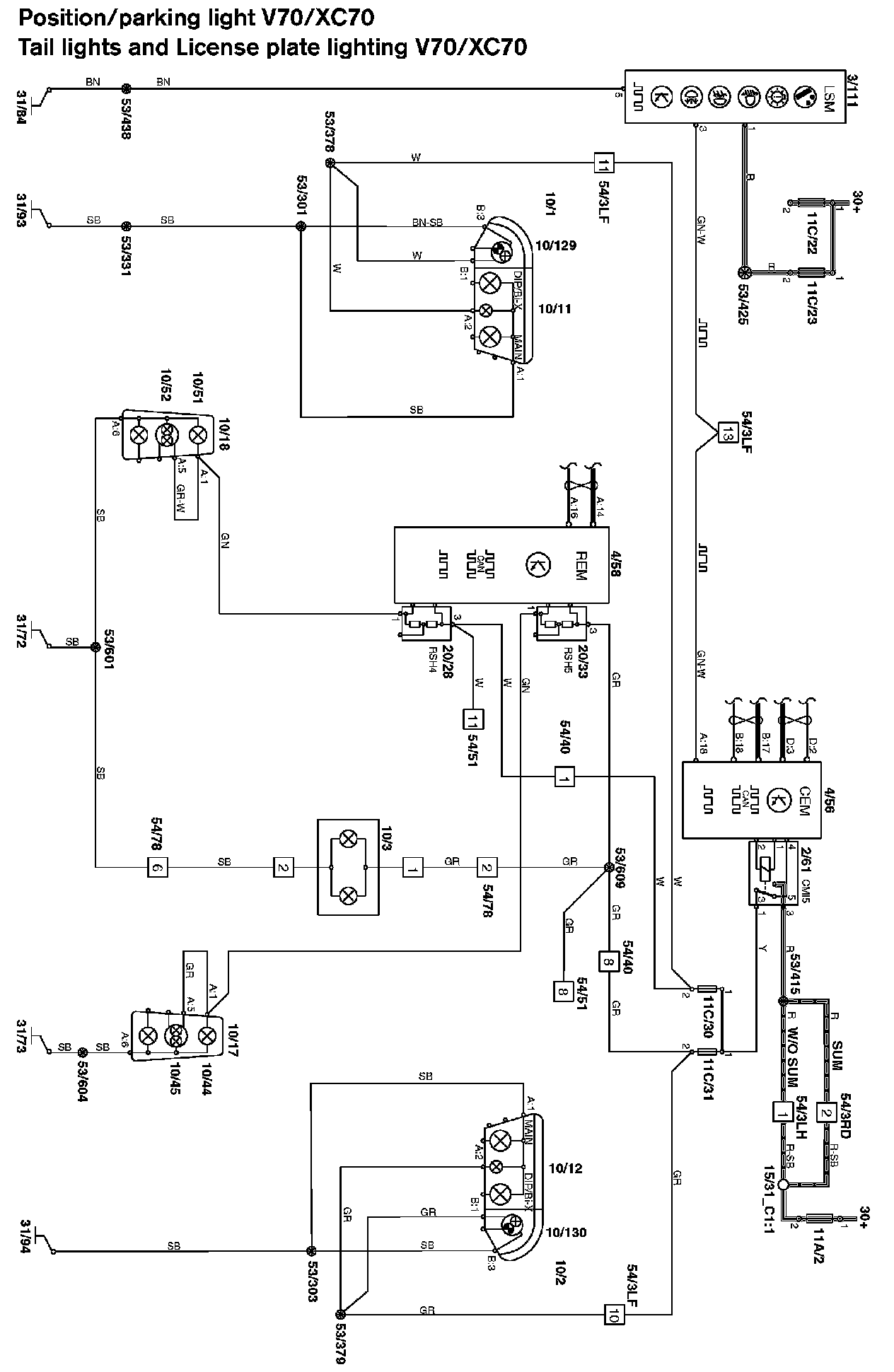

Position/Parking Light, Tail Lights And Licence Plate Lighting:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
