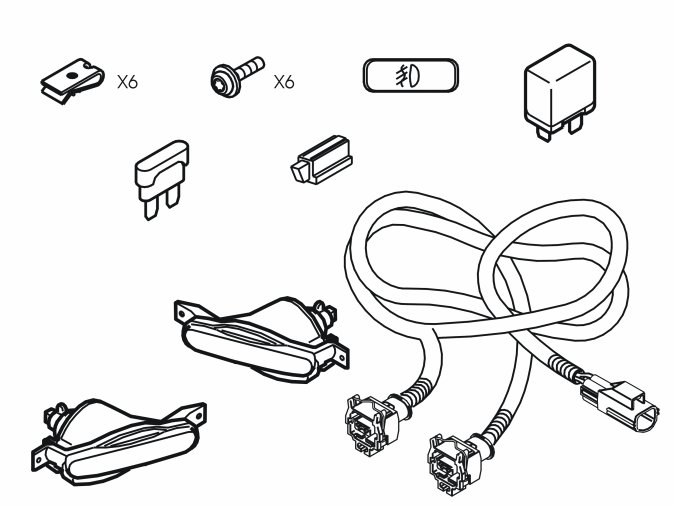

Fog Lamps

Fog lamps






















Fog lamps

Note! This accessory requires software unique to the car.

Preparations and installation

- Move the left front seat to the rearmost position.




- Raise the car
- Cut out the embossed covers (1) on the left and right-hand sides of the bumper cover.

Note! Cut around the outer (2) marking.

- Score around the marking
- Carefully cut through the material
- Remove the cut-out section. Sand the edges if necessary.

Applies to cars with air baffles on the left and right-hand sides





Remove:
- the screw (1) in the air baffle (2) on both sides
- the air baffle by pulling backwards.




- Remove the screws (1). Slacken off the air baffle (2)
- Release the catches (3). Pull the air baffle backward
- Remove the air baffle.

Applies to model year 01-





Remove:
- the pre-routed connector (1) from the parking connector in the fog lamp mounting
- the parking connector from the fog lamp mounting. This will not be reused.
- Repeat the operation on the other side.




- Install the spring nuts (1) in the holes on the left and right-hand sides.




- Install a fog lamp on the right and left-hand sides. Use the screws (1) (from the kit).

Connection and finishing work

Applies to model year 2000








- Take the cable harness from the kit. Connect the short cable end (1) to the left-hand fog lamp. Connect the long cable end to the right-hand fog lamp
- Press the cable into the two clamps (2)
- Connect the connector (3) to the pre-routed connector at the left-hand wing liner
- Press the cable harness for the right-hand fog lamp into place under the air intake. Use the existing clamps (1). See illustration B.

Applies to model year 01-




- Connect the pre-routed connectors to the fog lamps on the right and left-hand sides.

- Reinstall the air baffle(s), if applicable
- Lower the car.




- Remove the cover (1) for the fuse holder
- Install a 15A fuse:
in terminal 3 for cars from model year 2000 inclusive.
in terminal 18 for cars from model year 01- inclusive
- Reinstall the cover.





Remove:
- the side panel (1). First slacken off the screw clip at the rear edge of the panel. Pull the panel outward and backward
- the soundproofing panel (2). First remove the screws (3). Then pry off the soundproofing panel at the rear edge, where it is secured using three clips (4).




- Install the relay (1) from the kit in the relay holder socket marked MI11
- Reinstall the soundproofing panel and the side panel.




- Remove the cover (1) on the lighting control panel
- Install the fibre optic (2) and the button (3) from the kit. Press the button into place
- Program the software. See the service information in VIDA
- Check the function. Align the lamps.
