Cargo Lamp: Service and Repair

Bulb, Cargo Compartment Lighting, Replacing

Lighting

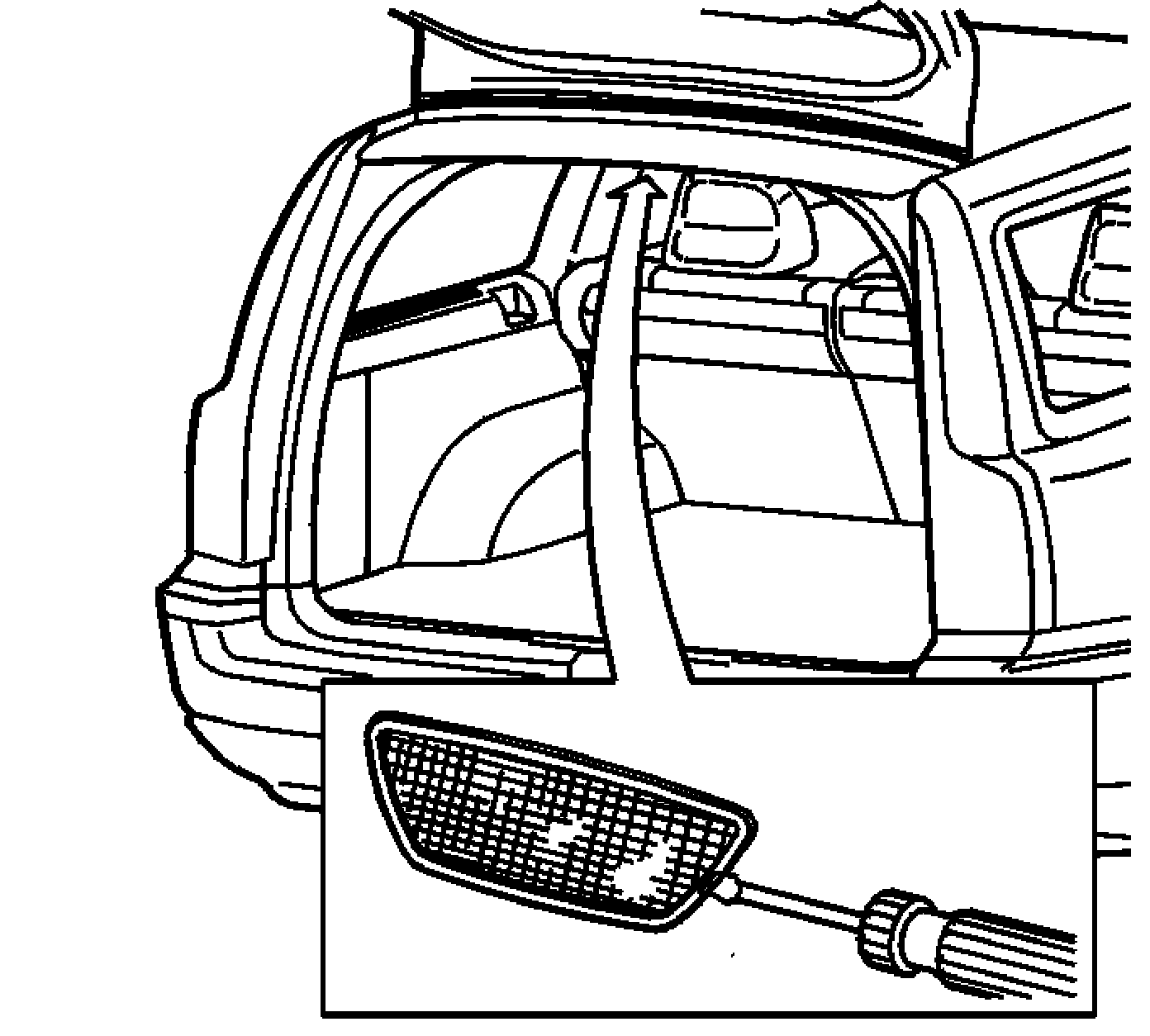

Removal
- Release the lighting
- Disconnect the connector.

Installation
- Connect connector
- Position the lighting. Press the lighting into place.

Bulb







Removal
- Release the cargo compartment lighting.
- Remove the bulb.

Installation
- Install the bulb
- Secure the cargo compartment lighting.
