Engine Compartment

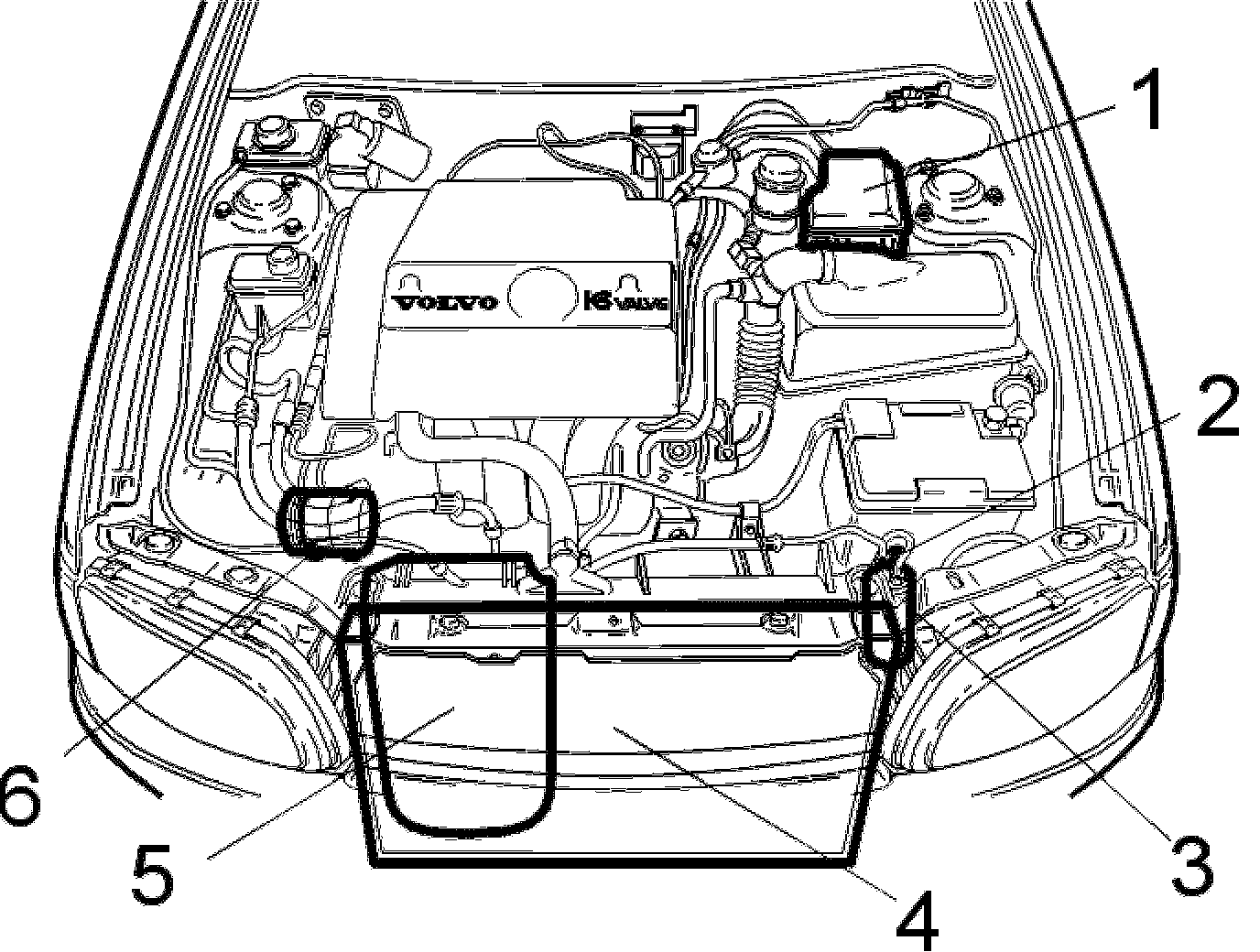

Engine Compartment







1. Integrated relay/fusebox 11/A
2. Pressure switch (ECC, MCC)
3. Receiver/drier (ECC, MCC)
4. Condenser (ECC, MCC)
5. Condenser fan (ECC, MCC)
6. Compressor (ECC, MCC).
