Climate Control Unit

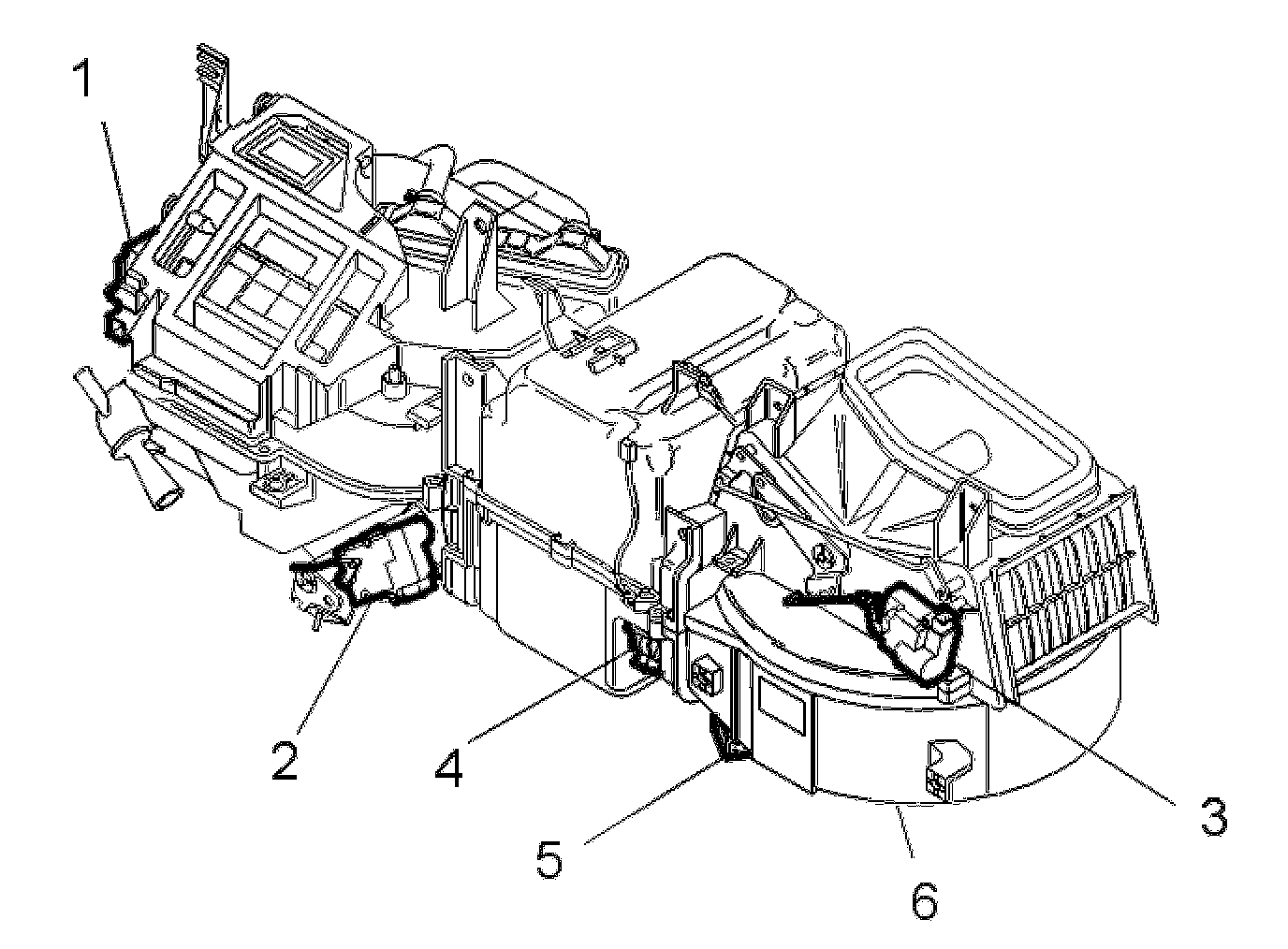

Climate Control Unit







1. Air distribution damper motor
2. Temperature damper motor
3. Recirculation damper motor
4. Blower fan power unit
5. Blower fan relay (maximum relay)
6. Blower fan.
