Engine Mount, Right, Replacing

Engine Mount, Right, Replacing

Special Tools: 951 2050, 999 5972

Removal
Raise the car.







Remove
- the right front wheel
- both the plastic nuts and the reinforcement panel holding the cover in the right fender liner. Bend the fender liner out of the way

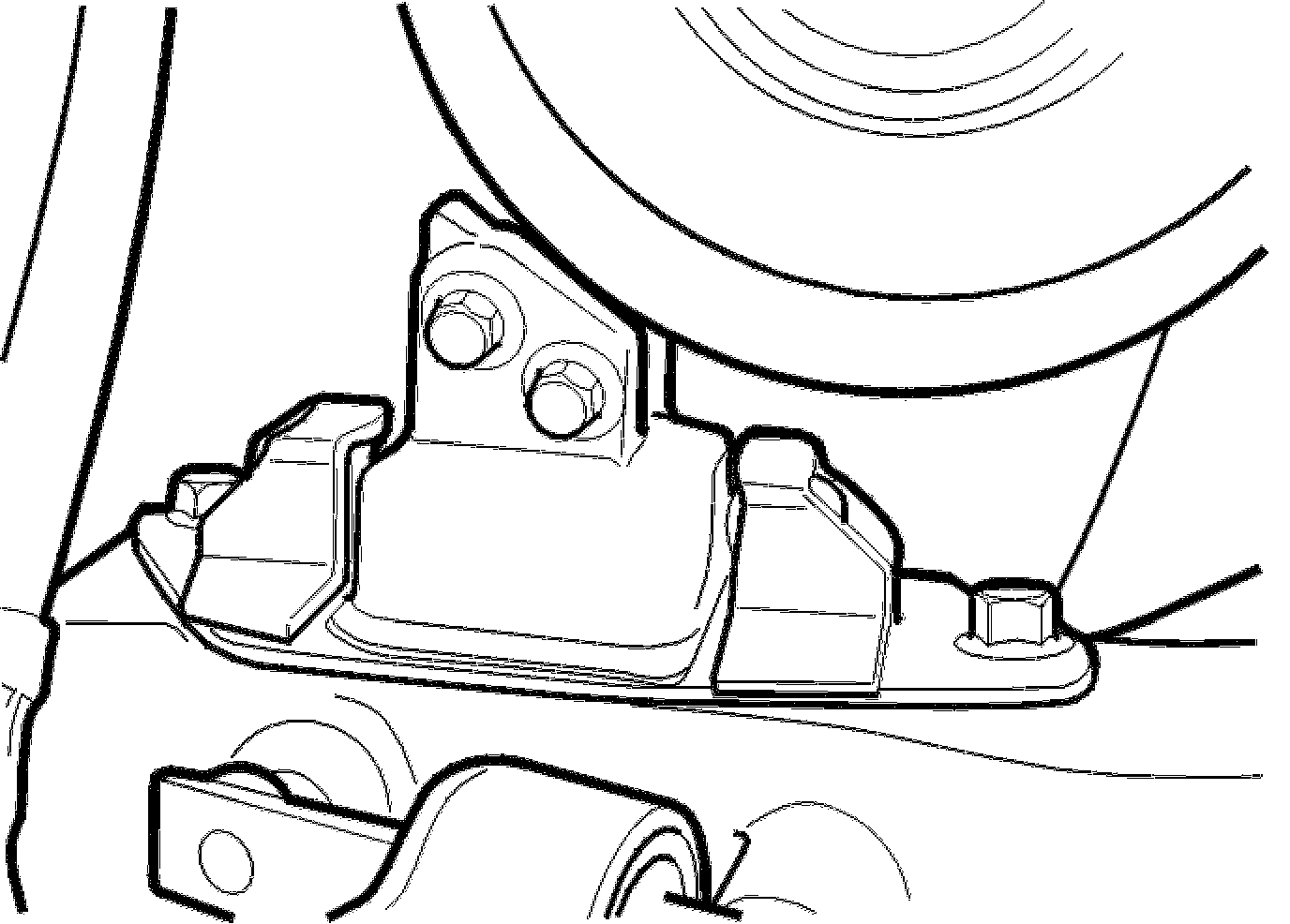

- the four screws for the right engine pad
- the splash guard under the engine.

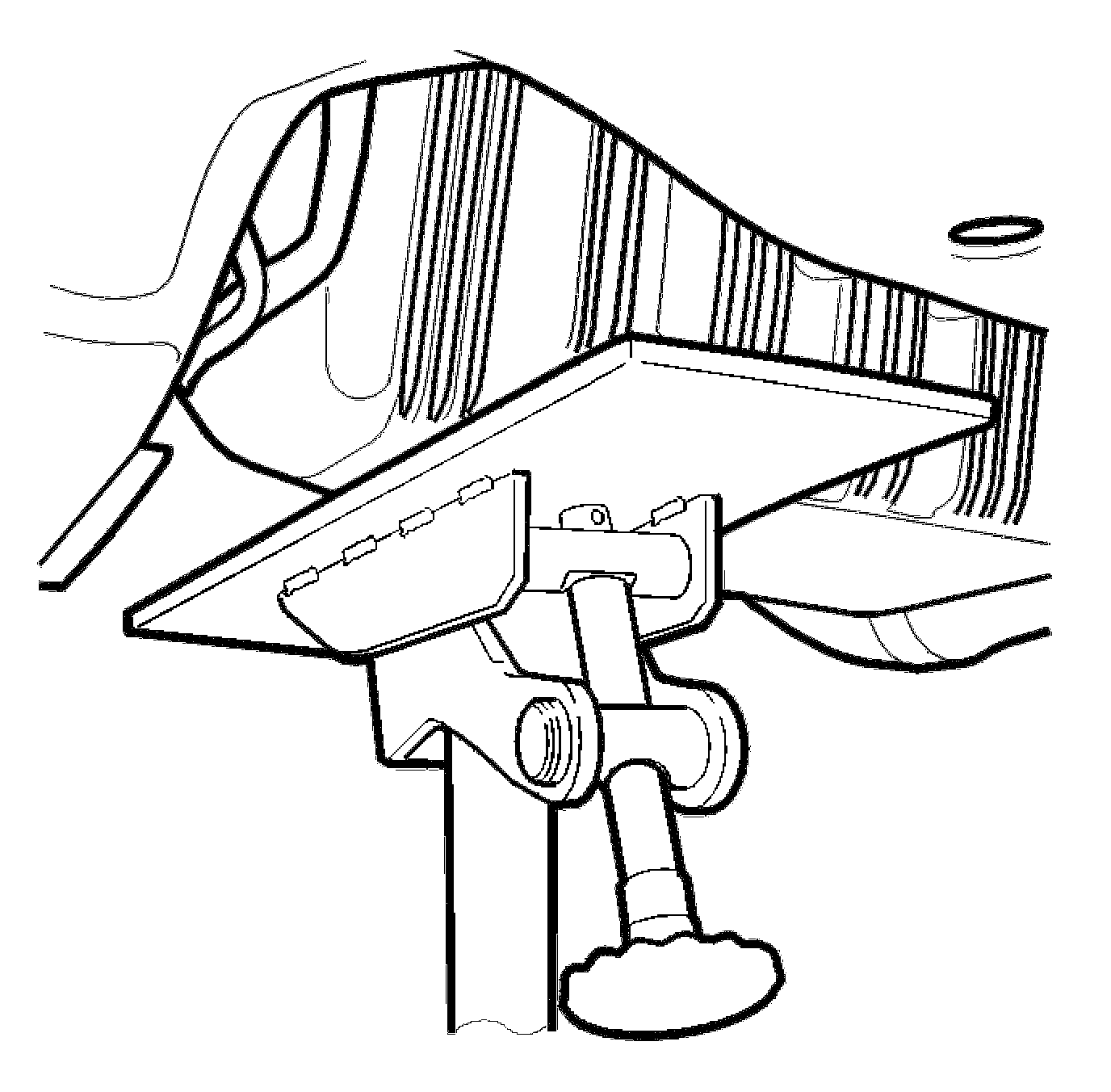

- Position a mobile jack with universal plate 999 5972 under the oil pan on the right side of the engine
- Check that the plate does not catch in the sub-frame
- Carefully lift the engine slightly so that the engine pad can be removed.

Installation

Install

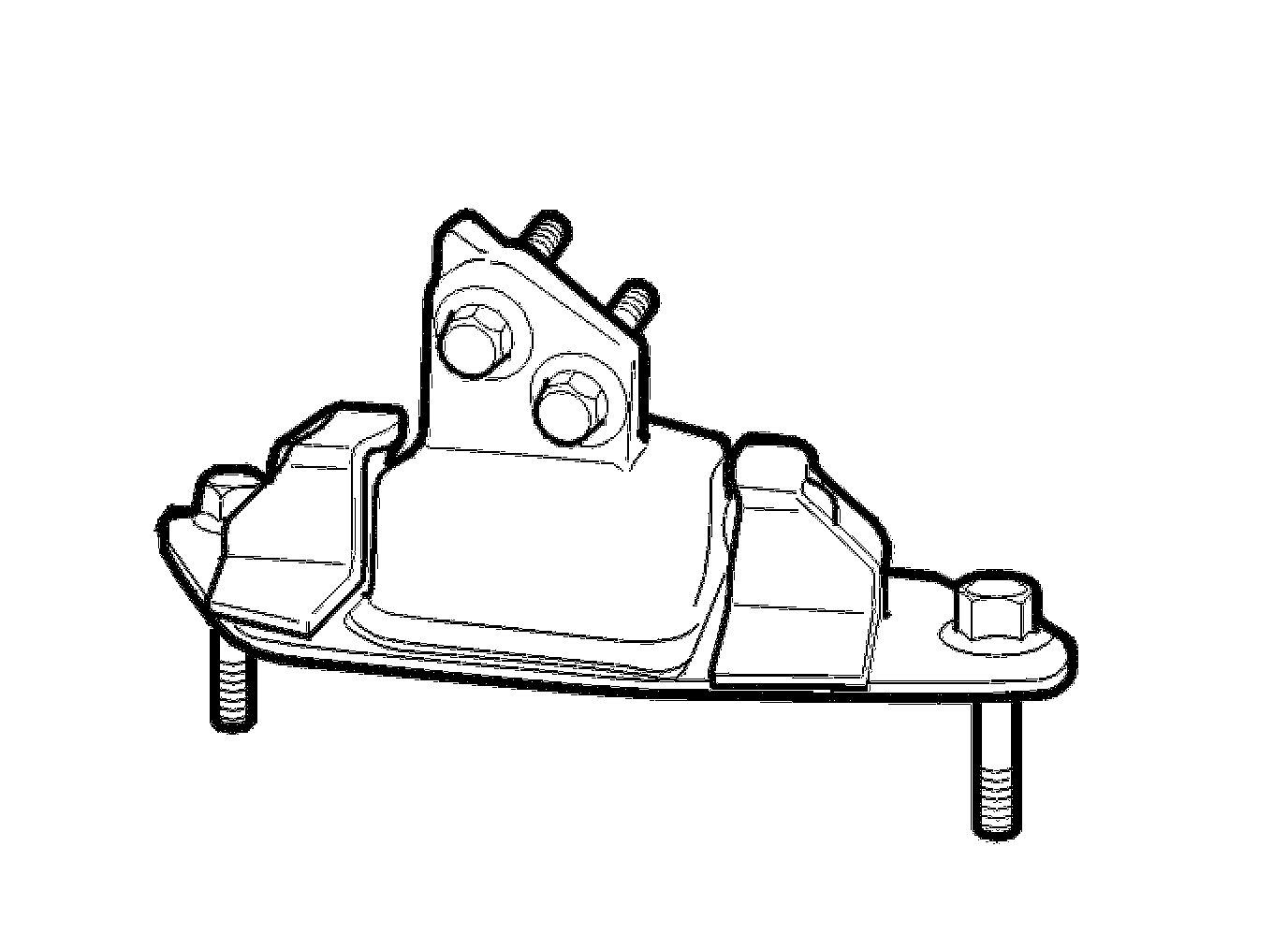

- the new engine pad
- use new screws for the mounting in the subframe and engine. Do not tighten yet.
- Carefully lower the engine and remove the mobile jack







- Tighten the screws against the engine. Tighten to 35 Nm. Angle-tighten 90 degrees. Use bevel protractor 951 2050.
- Tighten the screws to the sub-frame. Tighten to 65 Nm and angle-tighten 60 degrees. Use bevel protractor 951 2050.
- the splash guard under the engine. Tighten to 25 Nm
- both the plastic nuts and the reinforcement panel holding the cover in the right fender liner
- the right front wheel.
