Torque Rod, Lower, Replacing

Torque rod, lower, replacing

Removal

Removing the lower torque rod




Raise the car.

Remove
- the splash guard under the engine
- the torque rod from the transmission and sub-frame.




- install the new torque rod

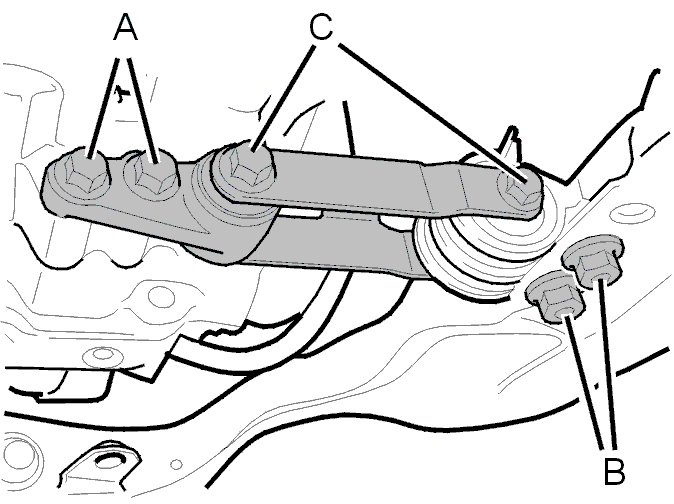

- Tighten the screws (A) to the transmission. Tighten to 35 Nm. Angle-tighten 40°
- tighten the nuts (B) to the sub-frame. Tighten to 65 Nm. Angle-tighten 60°
- Tighten the nuts (C). Tighten to 35 Nm. Angle-tighten 90°.
