Replacing the Engine Torque Bracket

Replacing the engine torque bracket

Removal

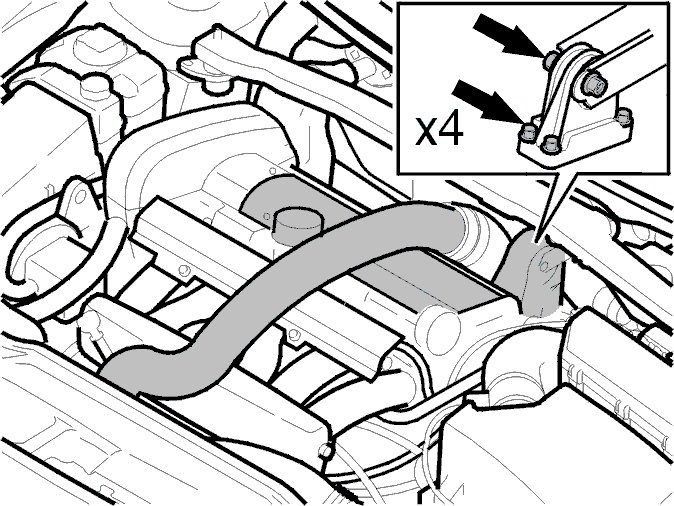

Removing the torque bracket

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.





Remove
- the engine stabilizer brace
- the charge air pipe (only turbocharged (TC) engines)
- the screw for the dip stick pipe (6 cylinder automatics only)
- the oil filler cap
- the cover over the ignition coils
- the torque bracket.

Installation

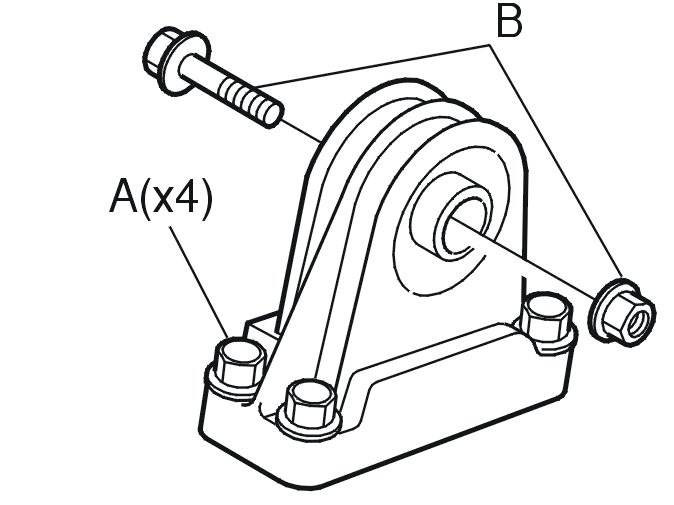

Installing the torque bracket





Install
- the torque bracket. Tighten the screws (A). Tighten to 50 Nm
- the screw for the dip stick pipe (6 cylinder automatics only)
- the cover over the ignition coils
- the oil filler cap
- the charge air pipe (only turbocharged (TC) engines)
- the engine stabilizer brace.
Tighten the screws on the suspension turrets. Tighten to 50 Nm.Tighten the screw in the torque bracket (B). Tighten to 80 Nm.
