R.H.D

Heat exchanger, replacing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing heat exchanger

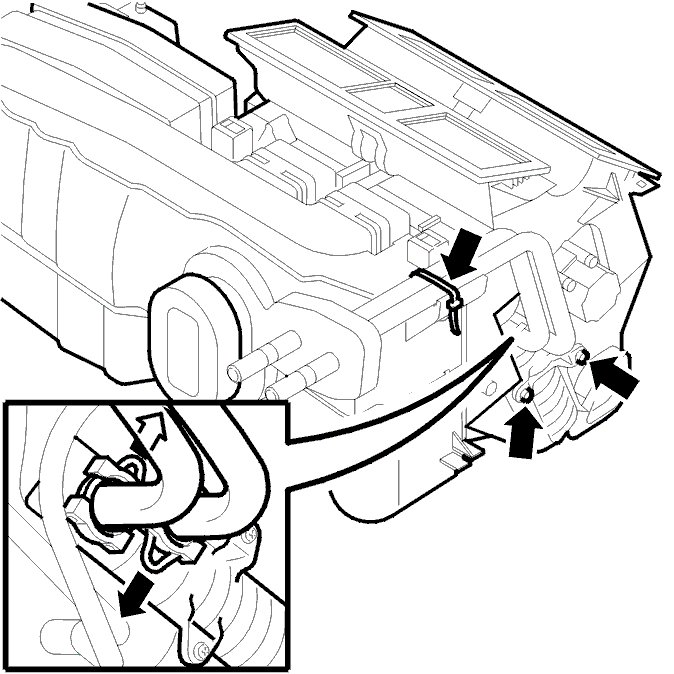

Remove:
- the climate control system. See Climate control unit, replacing, L.H.D, R.H.D Service and Repair
- the tie strap for the pipe
- the mounting brackets for the pipe
- the screw/screws for the heat exchanger
Loosen the pipe for the heat exchanger and drain the coolant.

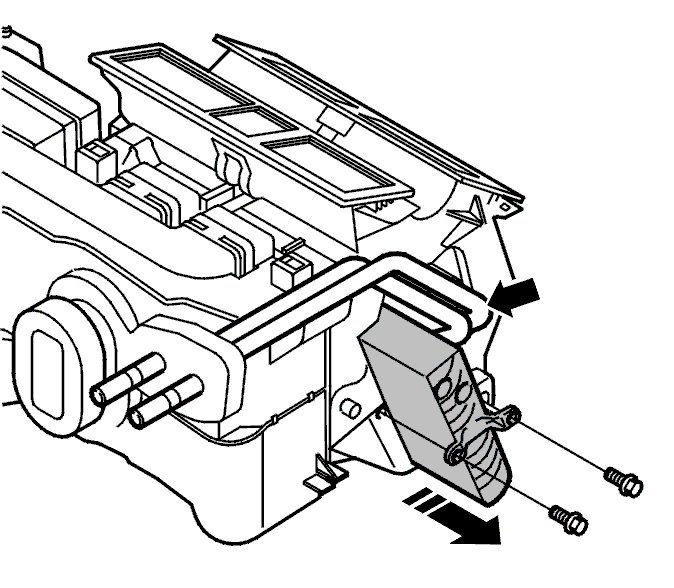

Remove the screws, 3 pcs., for the fan housing-central unit.
Fold out the central unit and remove it.
Pull out the heat exchanger from the central unit.

Installation

Installing heat exchanger
Carefully place the heat exchanger in the central unit and check that the seals are okay.
Screw the heat exchanger into place.
Install the seals for the central unit on the fan housing and bolt down.
Install the pipe. NOTE! New O-rings.
Brace the pipe.
Install the strip clamps for the pipes.
Install remaining components in reverse order.
