Home >> Volvo >> 2004 >> V70R AWD L5-2.5L Turbo VIN 52 B5254T4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> System Diagram >> Wipers/Washers, Windshield

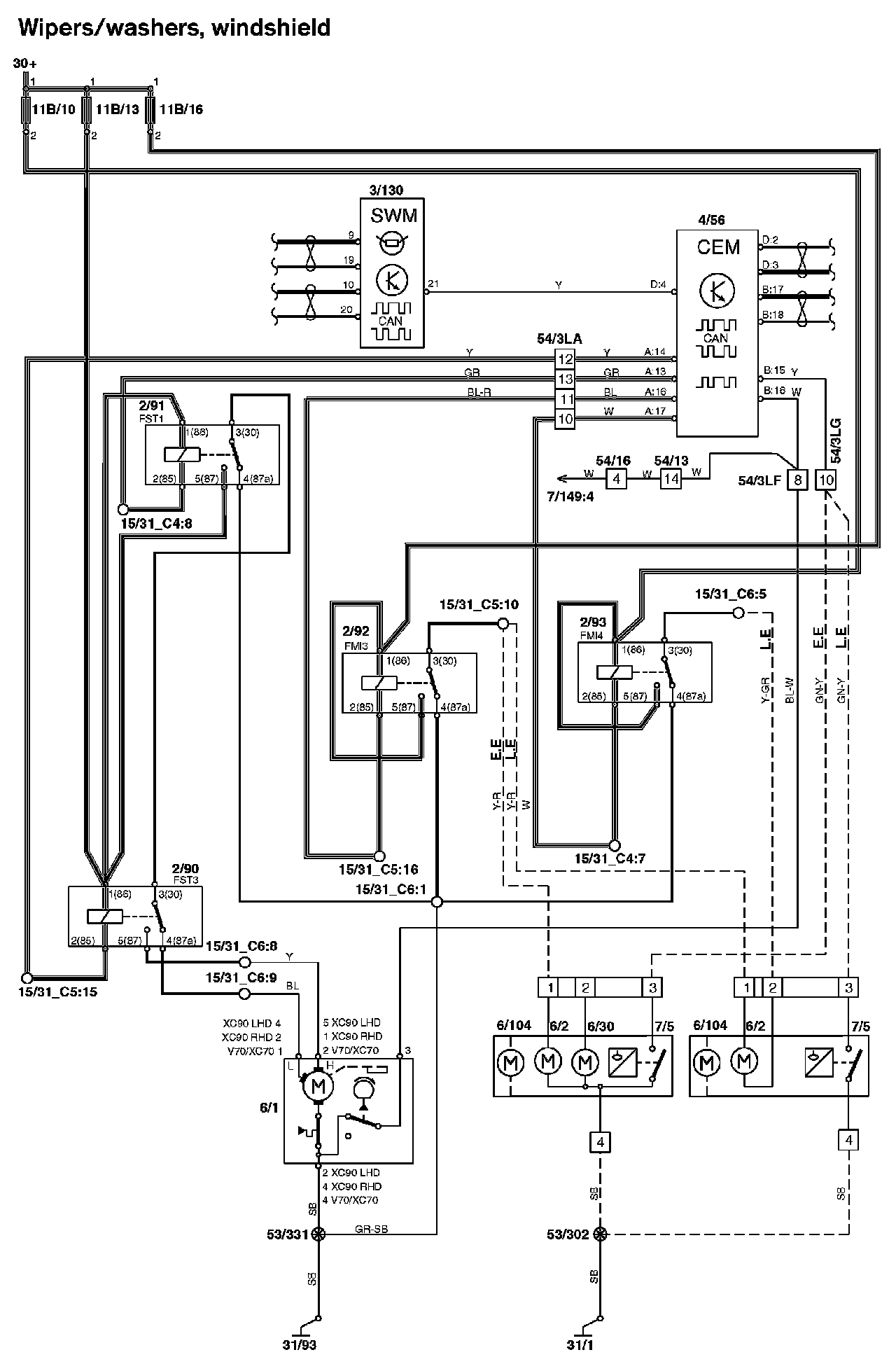

Wipers/Washers, Windshield



Wipers/Washers, Windshield

Wipers/Washers, Windshield:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
