4-Pin

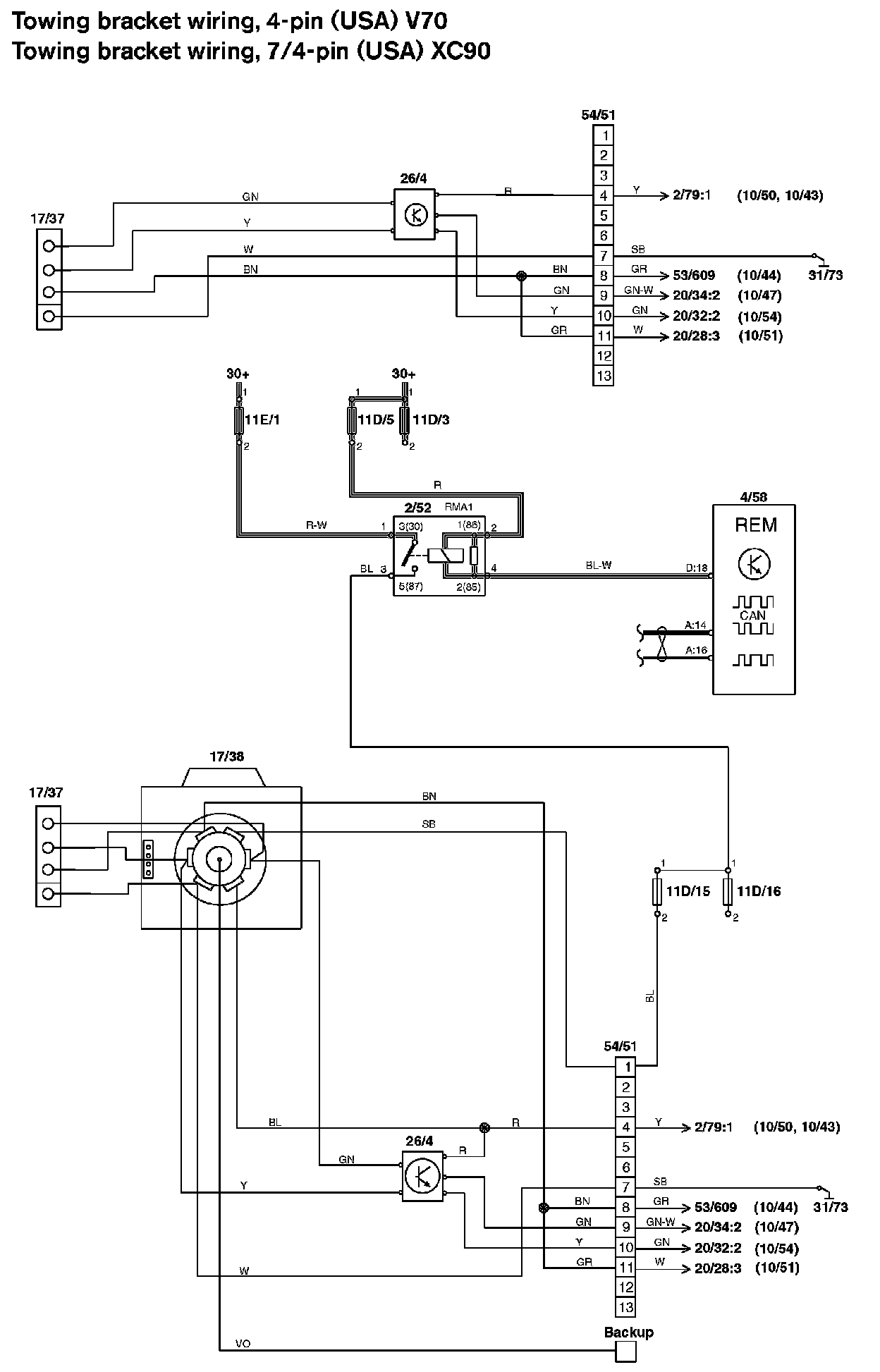

Trailer Bracket Wiring, 4-Pin

Towing Bracket Wiring, 4-pin, 7/4-pin:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
