13-Pin

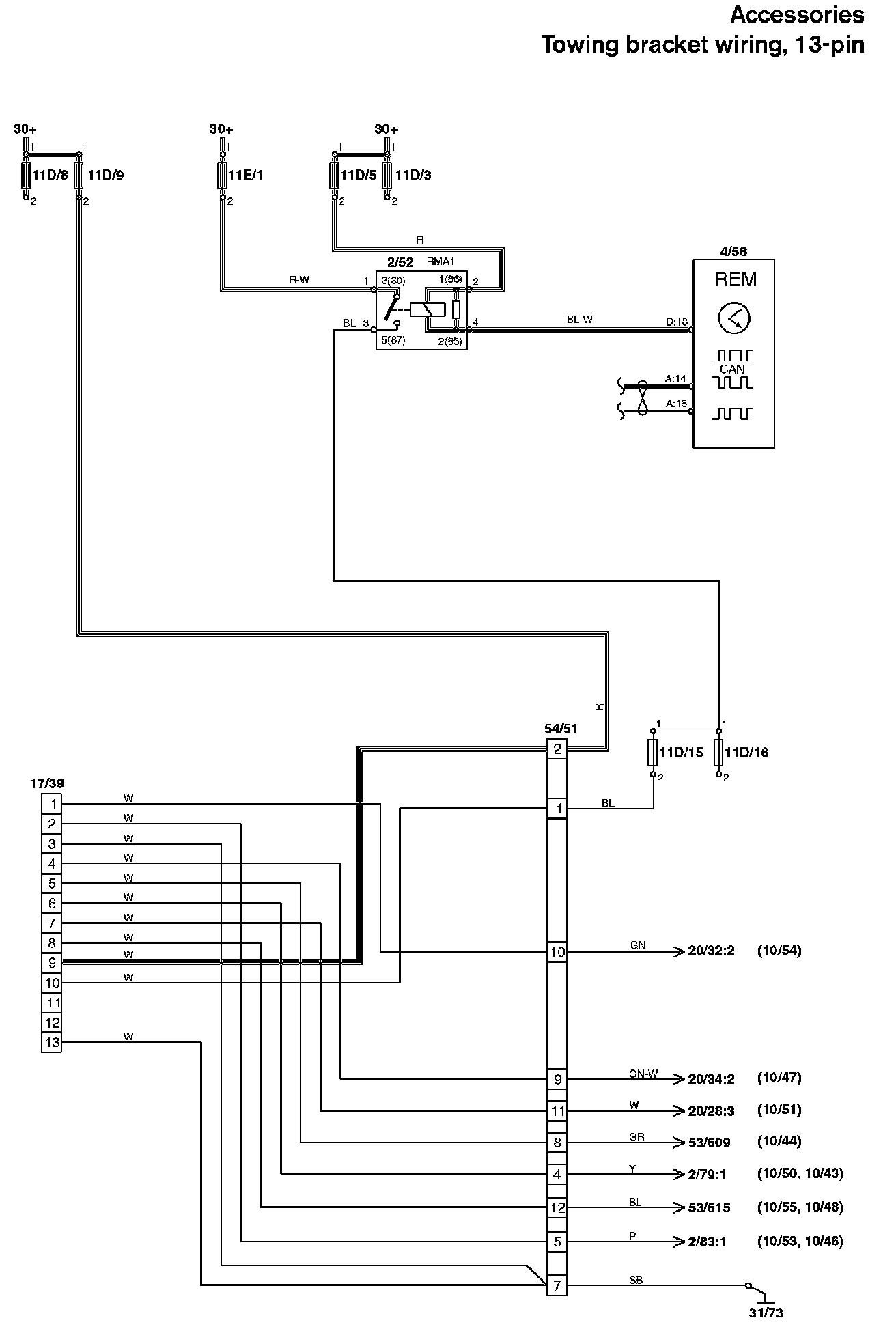

Trailer Bracket Wiring, 13-Pin

Accessories, Towing Bracket Wiring, 13-pin:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
