Home >> Volvo >> 2004 >> V70R AWD L5-2.5L Turbo VIN 52 B5254T4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Accessory, Audio Adapter Wiring

Accessory, Audio Adapter Wiring

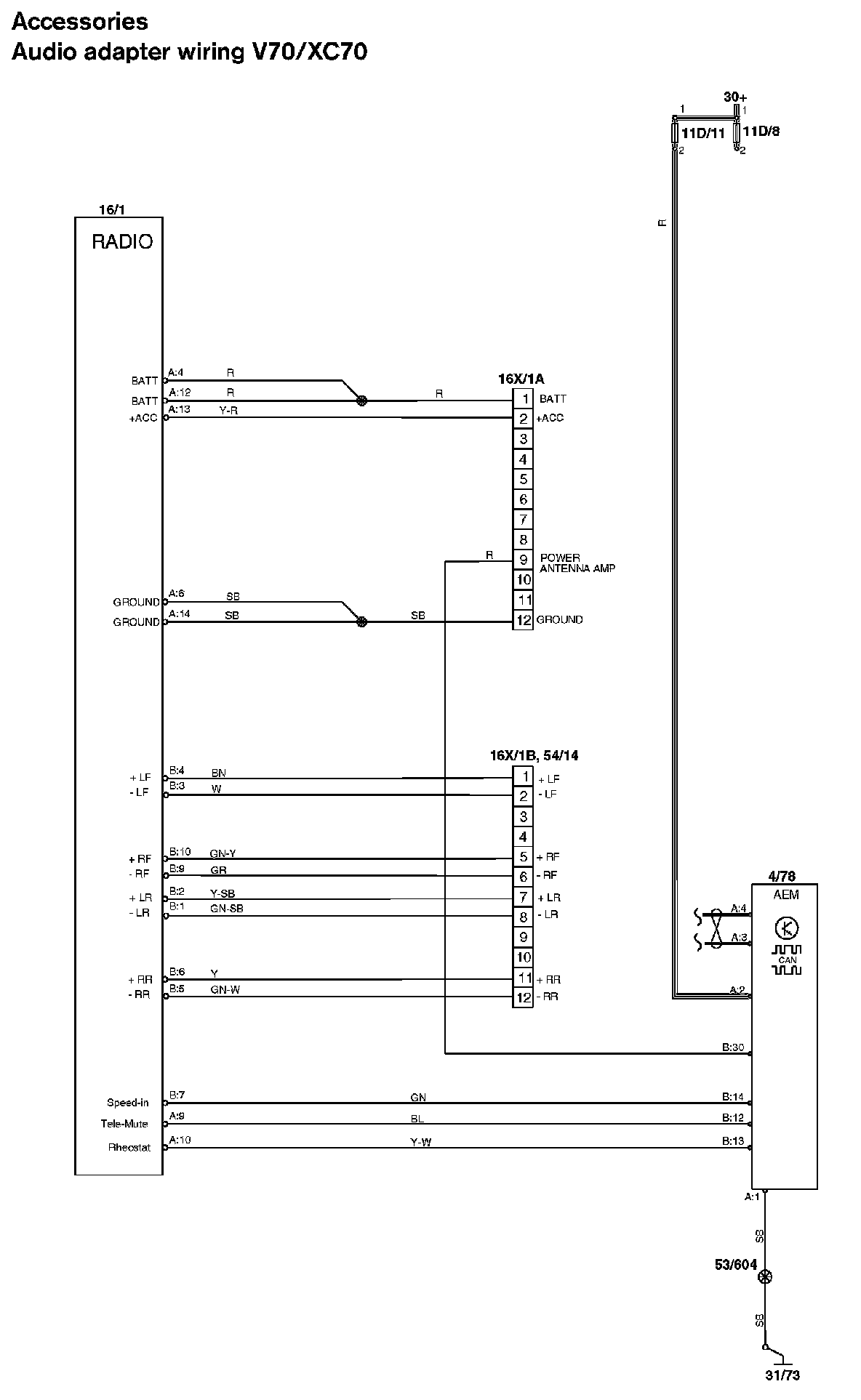

Audio Adapter Wiring

Accessories, Audio Adapter Wiring:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
