Cellular Telephone



Cellular Telephone

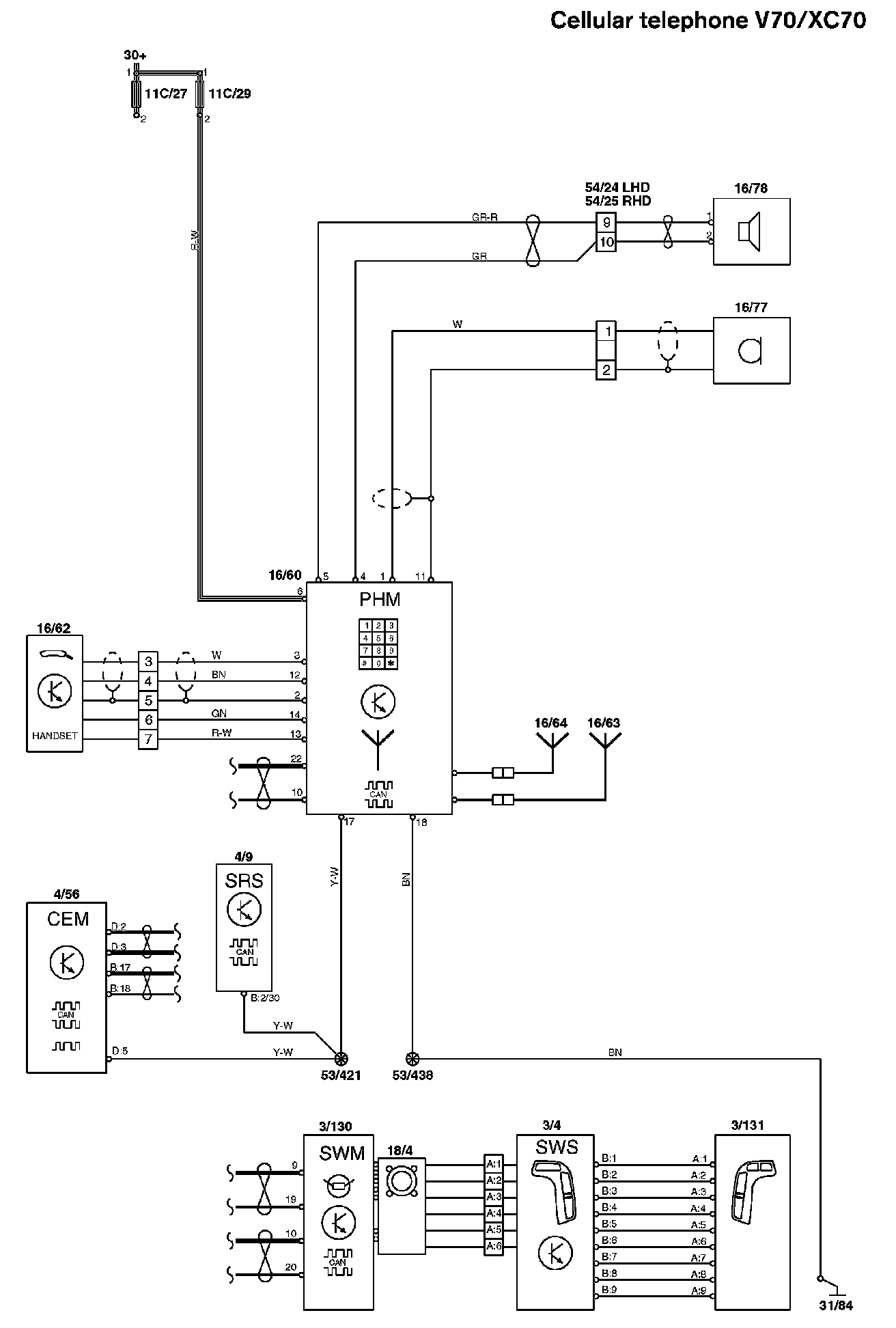

Cellular Telephone:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
