V70R AWD L5-2.5L Turbo VIN 52 B5254T4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
54/39
54/39
54/39:

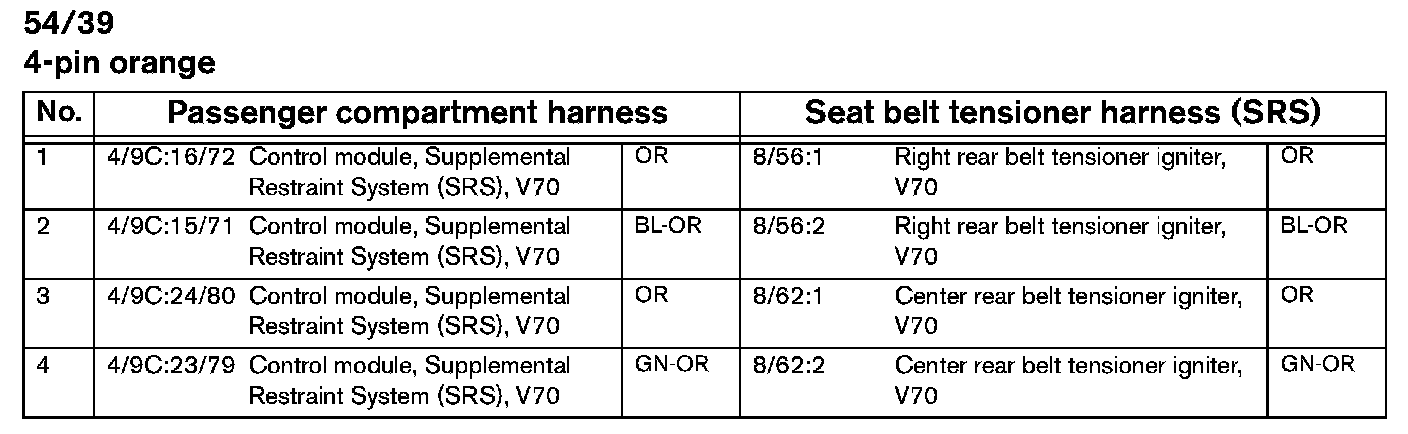

54/39 Connector:
