Body - Waste Paper Basket Mounting
Section8
Group
88
No.
0028
Year
03
Month
07
Waste paper basket mounting, repairing
Background:
The mounting for the waste paper basket is now available as a replacement part. This Service Bulletin describes how to replace the mounting.
Materials
Description Quantity Part No.
Mounting left-hand drive (LHD) 1 9491263
Pop rivet 2 975595
Waste paper basket mounting, replacing
1
Removing the waste paper basket
Remove:

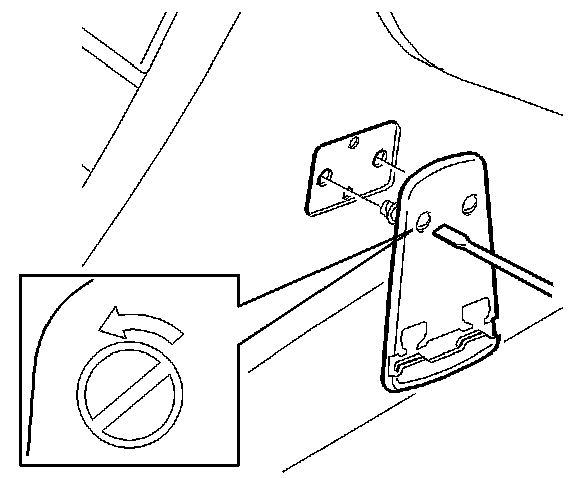

- the waste paper basket from the bracket
- the bracket.
2
Removing the radio/carphone
Remove the radio/carphone see VADIS:
Repair and installation
Function group 39
Radio/carphone
3
Removing the mounting

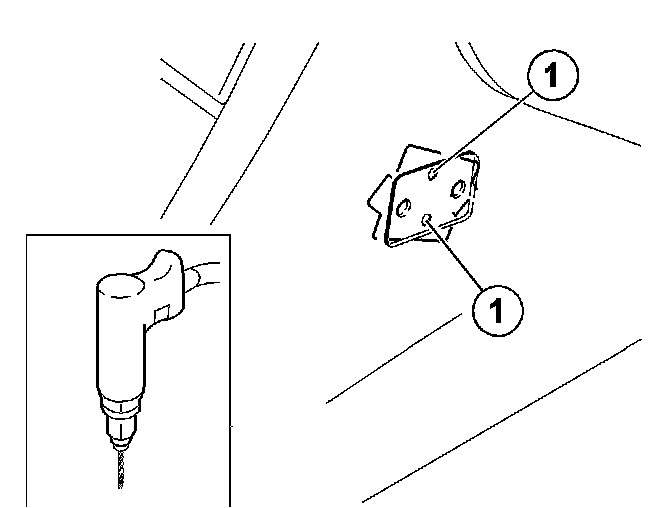

Drill out the pop rivets (1) holding the mounting. Use a 5 mm drill bit.
Remove the mounting.
4
Installing a new mounting

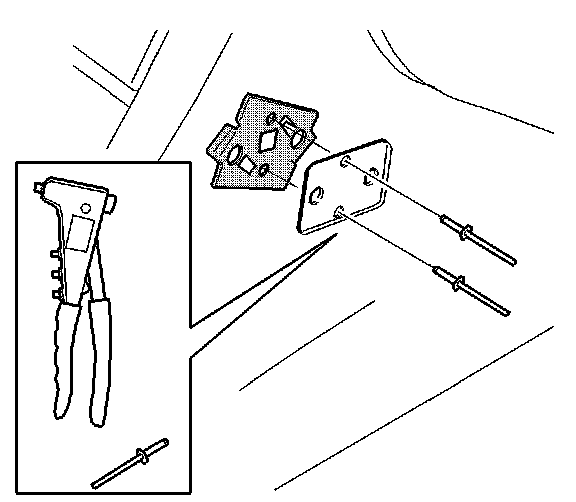

Install the new mounting using pop rivets.
5
Installing the bracket
Install:

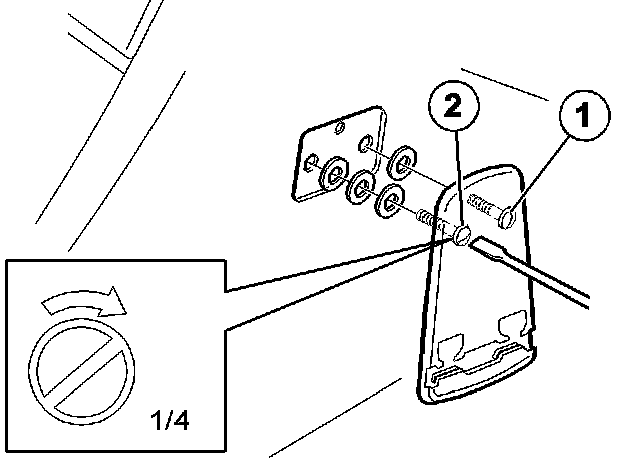

- the short screw in the front hole (1) on the bracket
- the longer screw in the rear hole (2)
- a washer on the front screw (1)
- three washers on the rear screw (2).
Note! The washers must be positioned between the bracket and the dashboard.
Position the mounting. Tighten the screws a 1/4 turn.
Install the waste paper basket.
6
Installing the radio/carphone
Reinstall the radio/carphone see VADIS:
Repair and installation
Function group 39
Radio/carphone

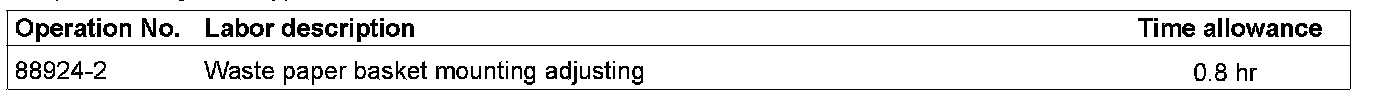

WARRANTY STATEMENT: Claims may be submitted under the New Car Warranty when there is a documented customer complaint using claim type 01.
