Lumbar Support Strap

Lumbar Support Strap
- Carry out "Lifting the front seats in and out" and "Lumbar support adjustment knob".
- Pull the side piece straight out.
- Carry out Backrest adjustment knob.







- Fold the backrest or position the backrest in the forward angled position.
- Slacken off tension in lumbar support.

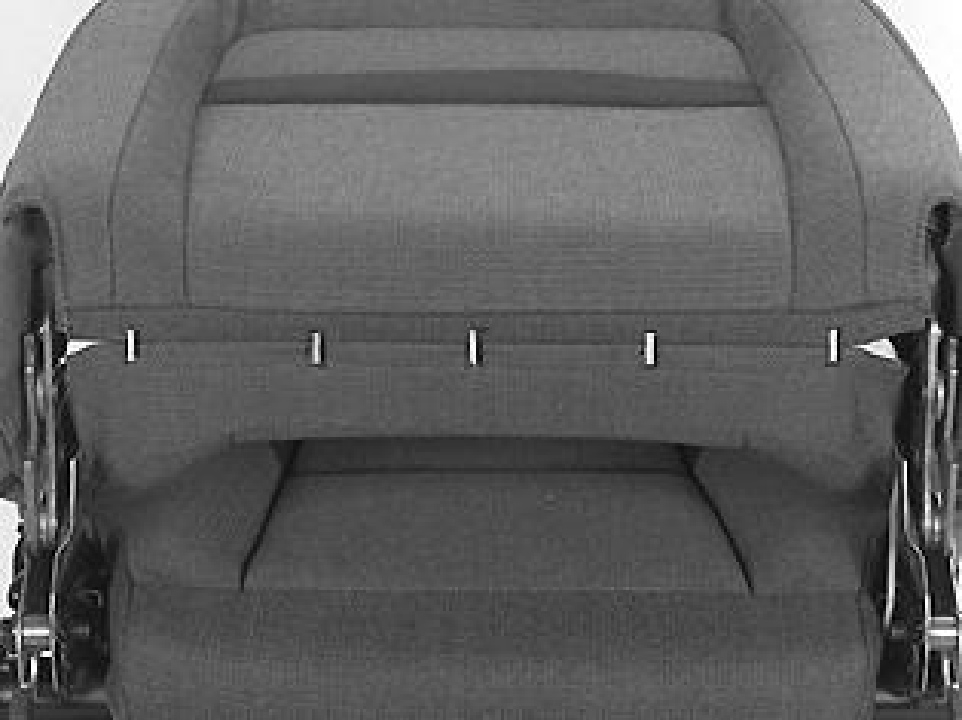

- Remove the five half moon clips at the bottom edge of the backrest.

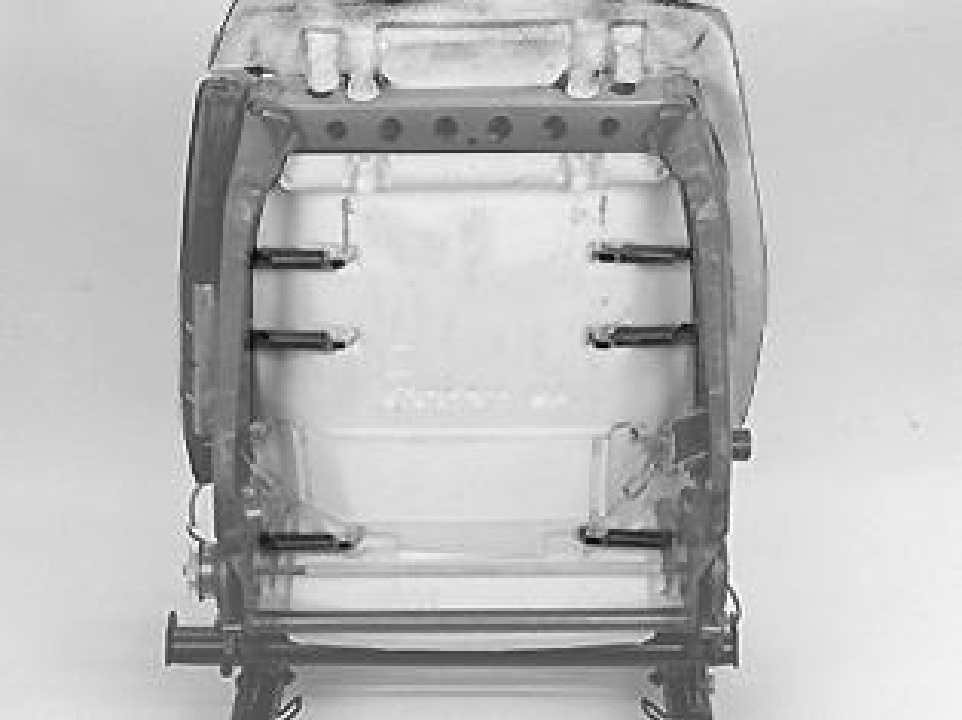

- Disconnect the springs from the mountings in the backrest frame and lumbar support adjustment mechanism.
- Replace damaged components.

Install:
In reverse order.
