Underbody Cover: Service and Repair

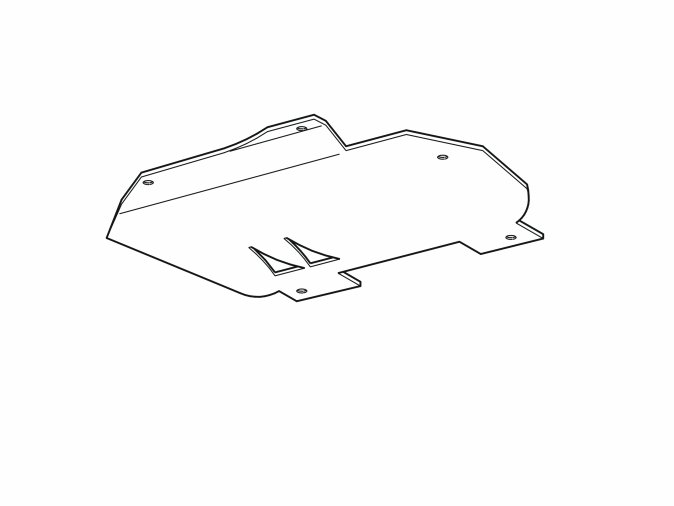

Protective panel

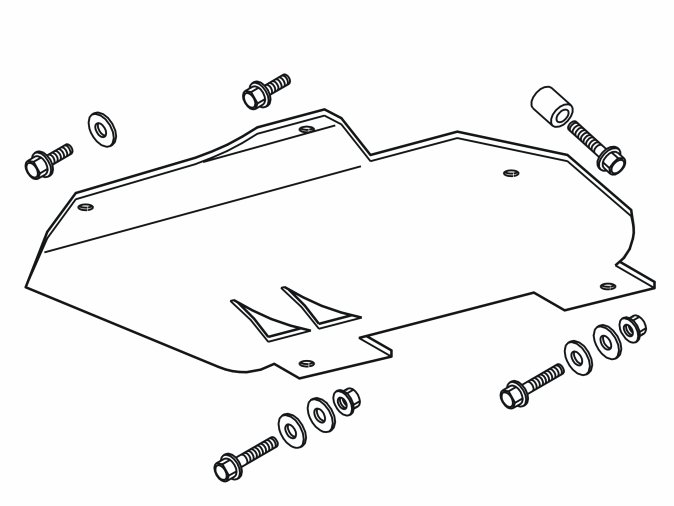

Protective panel

Applies to diesel engine cars




On diesel engine cars, the left air baffle must not be used.
- Turn the protective panel around
- Drill out the four pop rivets (1). Remove the air baffle
- Remove the drill and rivet swarf.




- Raise the car

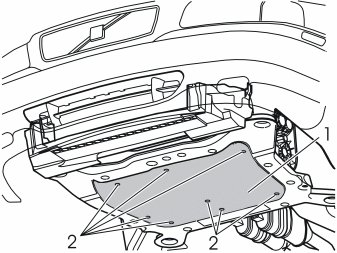

- Remove the air baffle (1) by slackening off the screws (2).

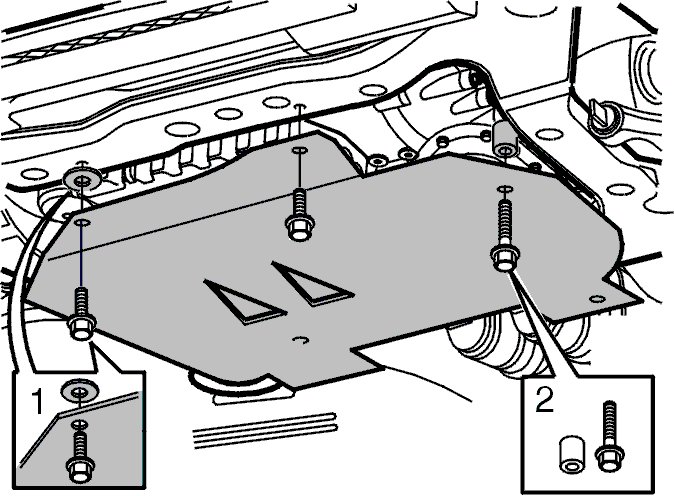

- Lift up the protective panel towards the sub-frame. Install the small screws in the front holes (1). Position all the washers between the sub-frame and the protective panel in the right hole. Loosely screw the screws into place
- Position the sleeve between the protective panel and the sub-frame by the hole (2). Screw the long screw into place.

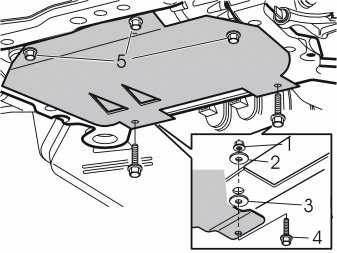

- Position the nuts (1) and the washers (2) above the rear holes in the sub-frame. Position the washers (3) between the sub-frame and the protective panel. Loosely screw the screws (4) into place
- Tighten the front screws (5). Tighten to 25 Nm (19 ft.lb)
- Tighten the rear screws (4). Tighten to 50 Nm (38 ft.lb)
- Post-tighten the screws after approximately 1 minute so that the materials have time to settle.
