Information About Combined Diagnostic Trouble Codes (DTCs)

Information About Combined Diagnostic Trouble Codes (DTCs)

5 Cyl Non Turbo Engines

Combined Diagnostic Trouble Codes (DTCs)
The following table is available to facilitate fault-tracing of ETM related diagnostic trouble codes (DTCs).

NOTE: Probable root diagnostic trouble codes (DTCs) are in bold and listed at the top of each cell.

Example of how to read the table: If the codes 903F and 980F are generated in a vehicle with a Denso management system, then 903F is the probable root diagnostic trouble code. The diagnostic trouble codes (DTCs) can also be stored individually or together with other diagnostic trouble codes (DTCs) that do not affect ETM.

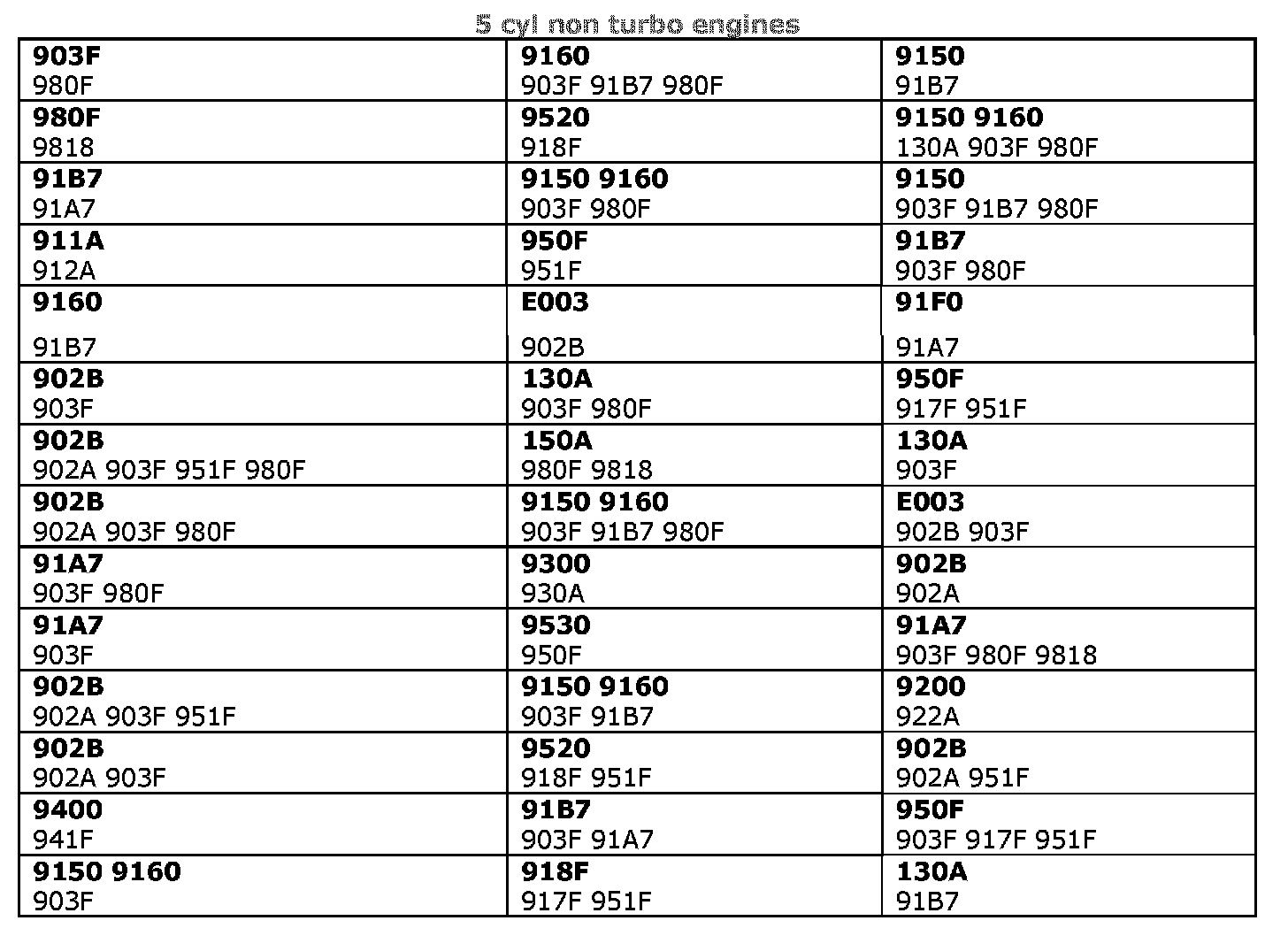

5 Cylinder Non-turbo Engines:

5/6 cyl turbo and 6 cyl non turbo engines

Combined Diagnostic Trouble Codes (DTCs)
The following table is available to facilitate fault-tracing of ETM related diagnostic trouble codes (DTCs).

NOTE: Probable root diagnostic trouble codes (DTCs) are in bold and listed at the top of each cell.

Example of how to read the table: If the codes 130A and 91CF are stored in a vehicle with a Bosch control system then 130A is the probable root diagnostic trouble code (DTC). The diagnostic trouble codes (DTCs) can also be stored individually or together with other diagnostic trouble codes (DTCs) that do not affect ETM.

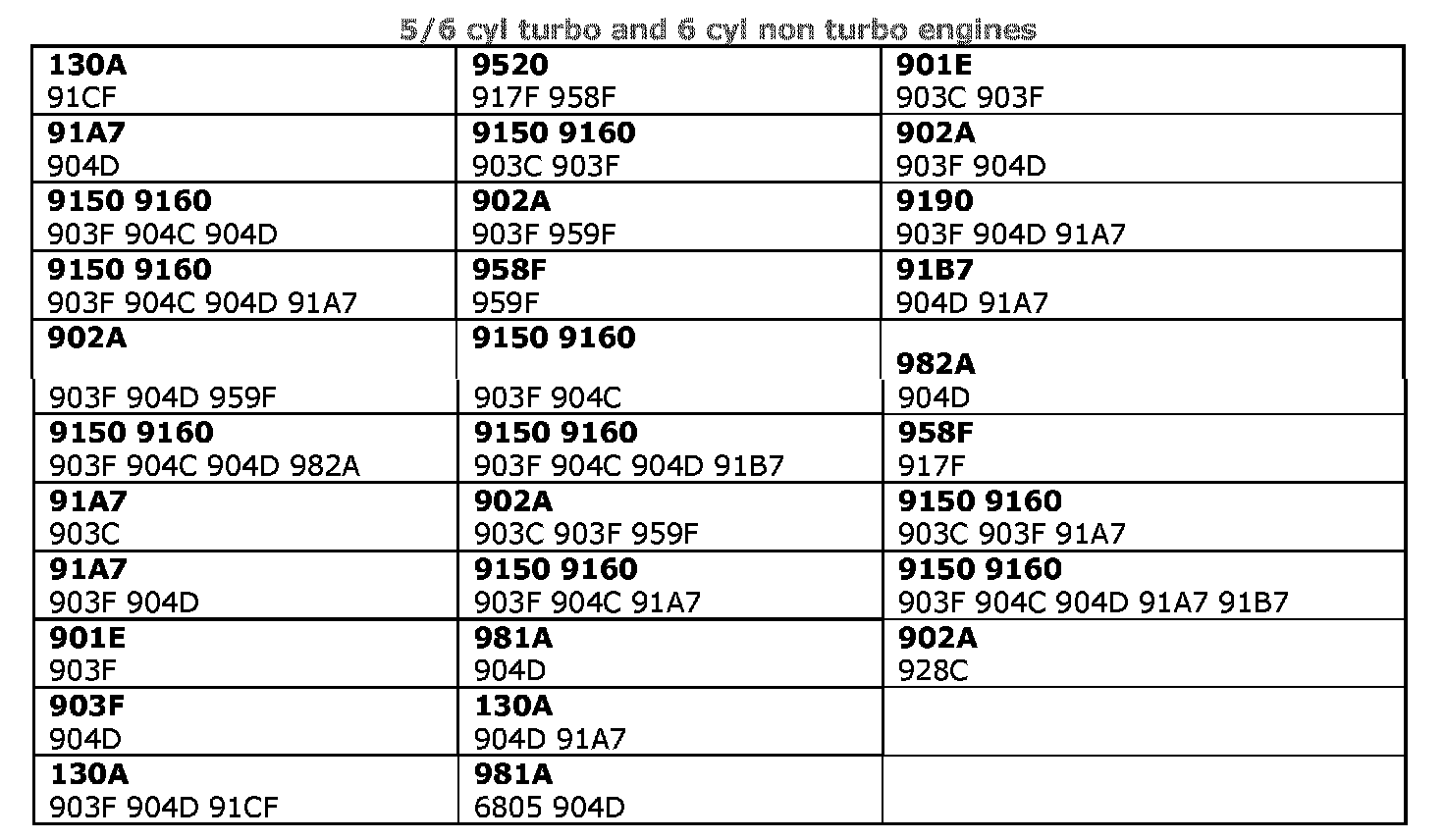

5/6 Cylinder Turbo And 6 Cylinder Non-turbo Engines:
