Computers and Control Systems: Locations

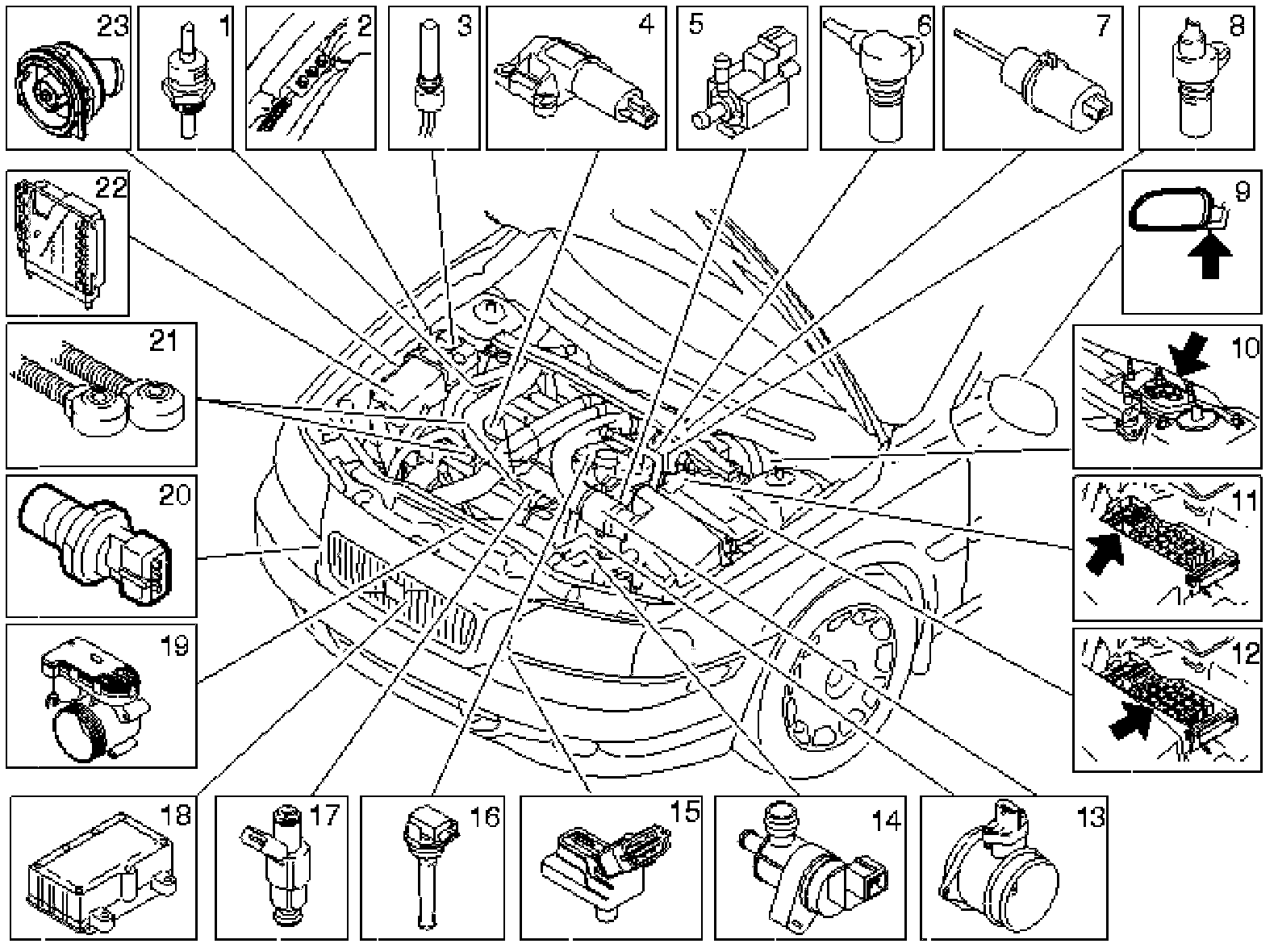

Location Of Components, Engine Compartment







NOTE: For S60/V70 2004- B5254T2 AW55-50SN US market, see Location of components, engine compartment.

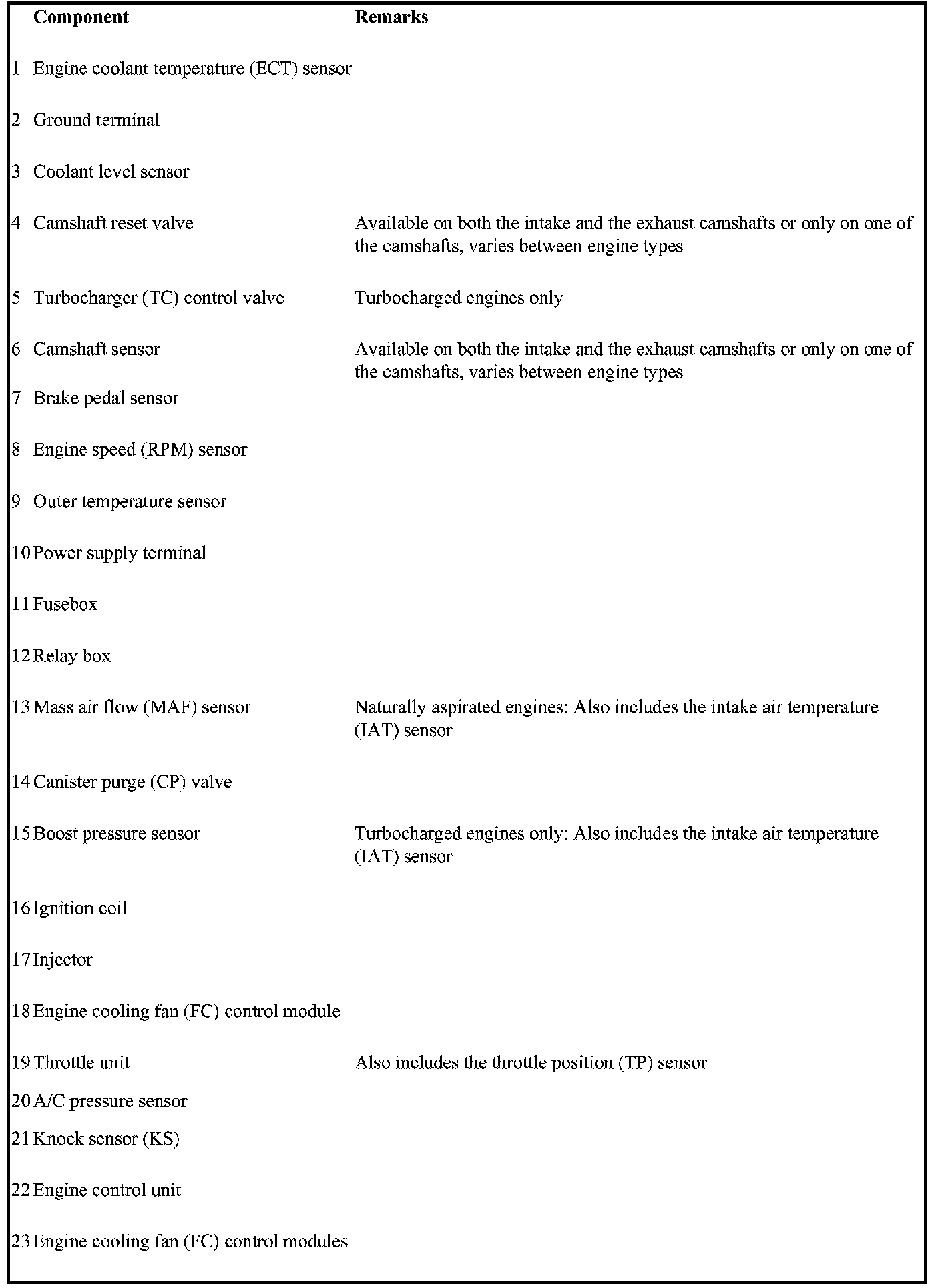

Not all the following components are necessarily in the car. The components vary between engine types.
