Engine Compartment 11A/11B

Engine Compartment 11A/1-8:

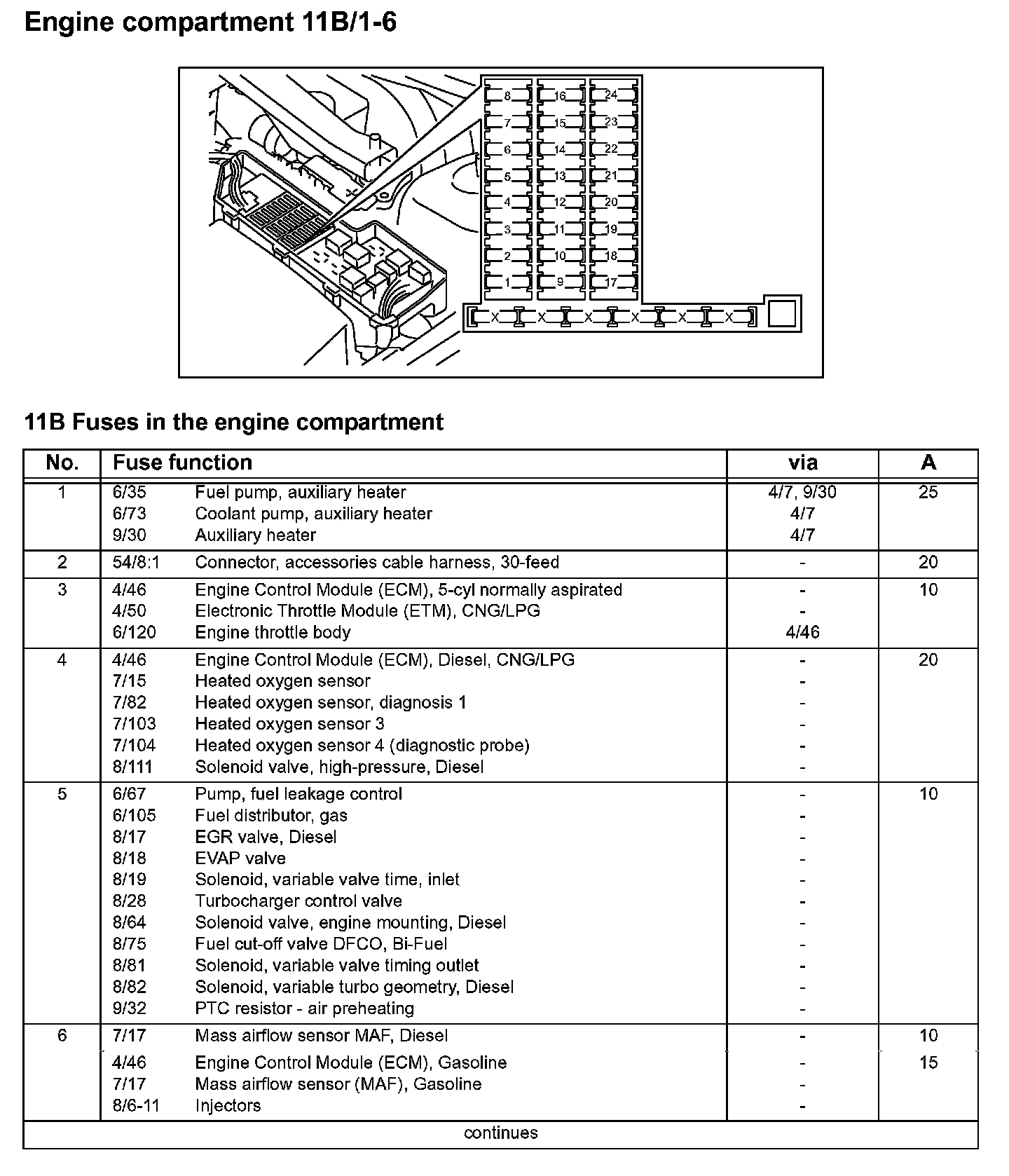

Engine Compartment 11B/1-6:

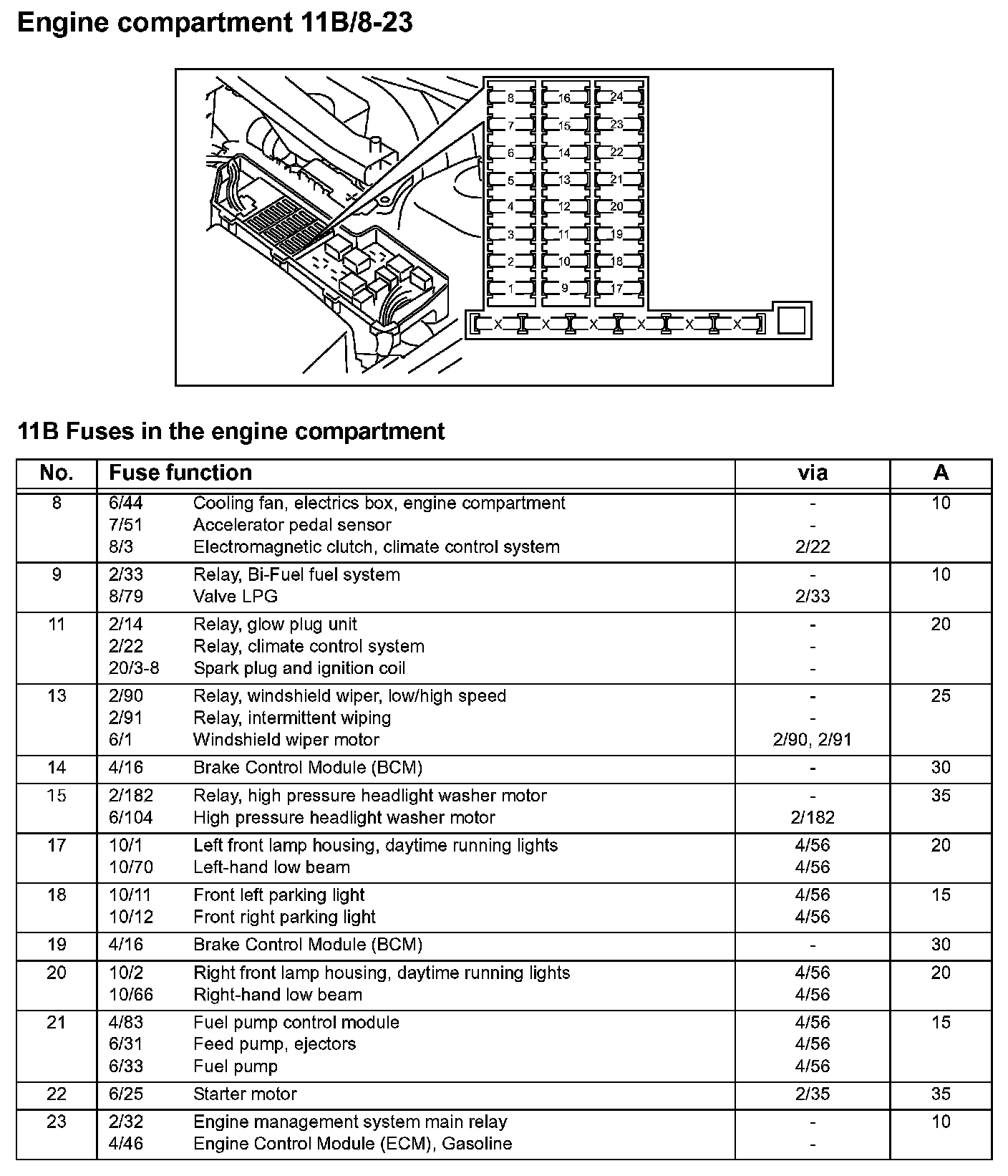

Engine Compartment 11B/8-23:
