Central Electronic Module (CEM)

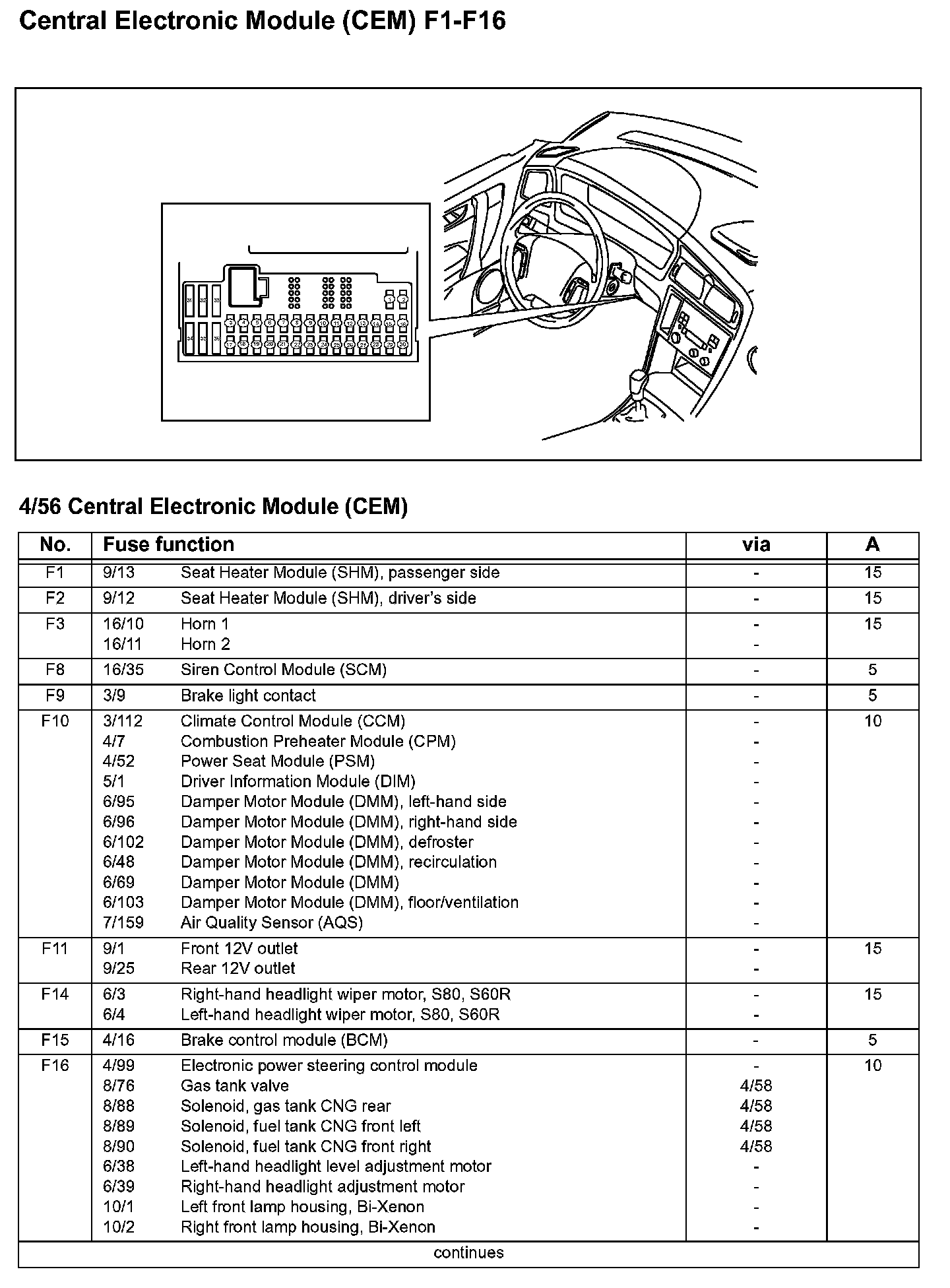

Central Electronic Module (CEM) F1-F16:

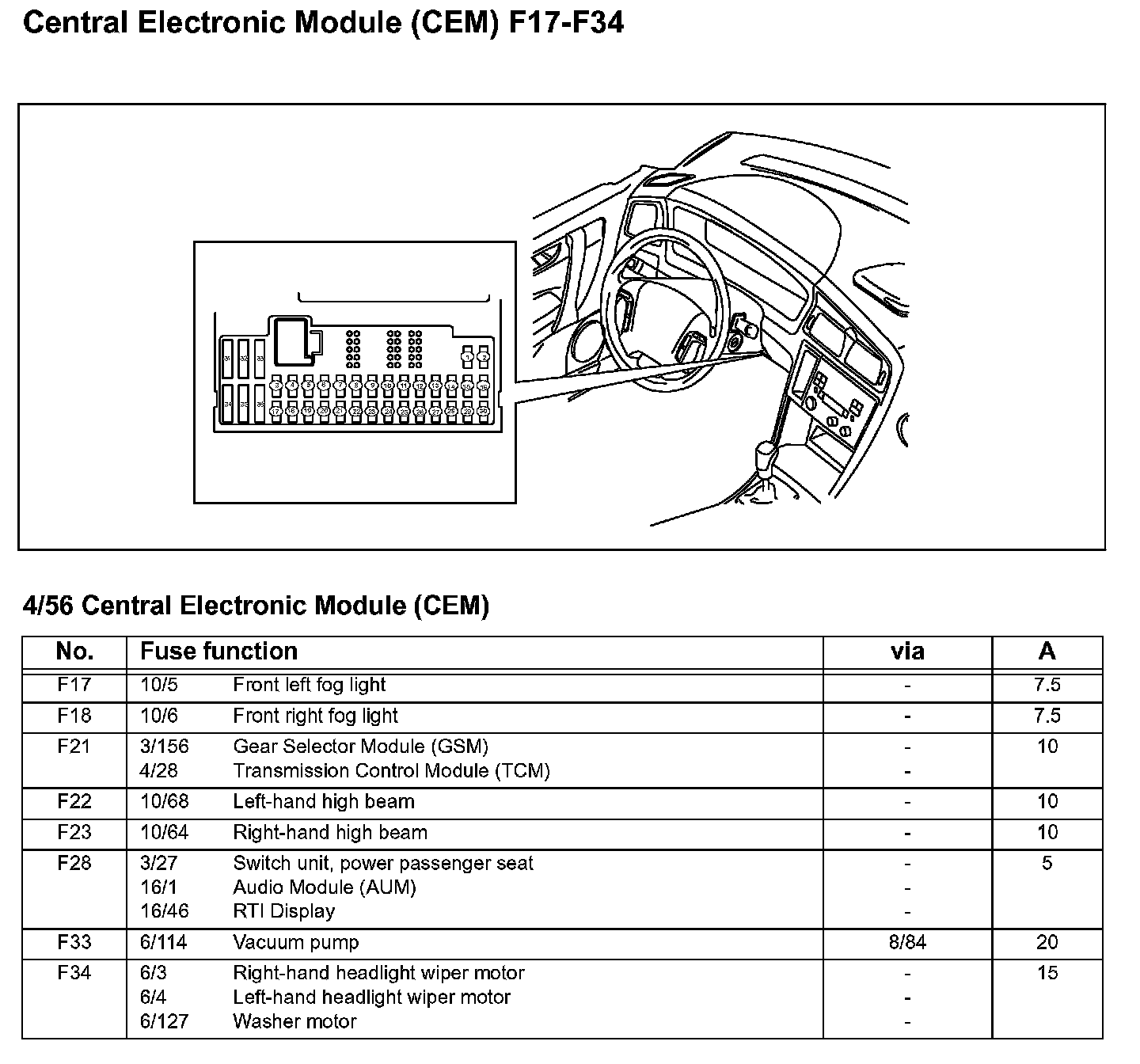

Central Electronic Module (CEM) F17-F34:
