Rear Fog Lamp Bulb

Bulb Tail Lamp/Stop Lamp/Back-up Lamp/Fog Lamp, Replacing

Removal

Preparations
- Switch off the ignition
- Reset the lighting switch
- Open the catch for the side panel and fold down.

Bulbs

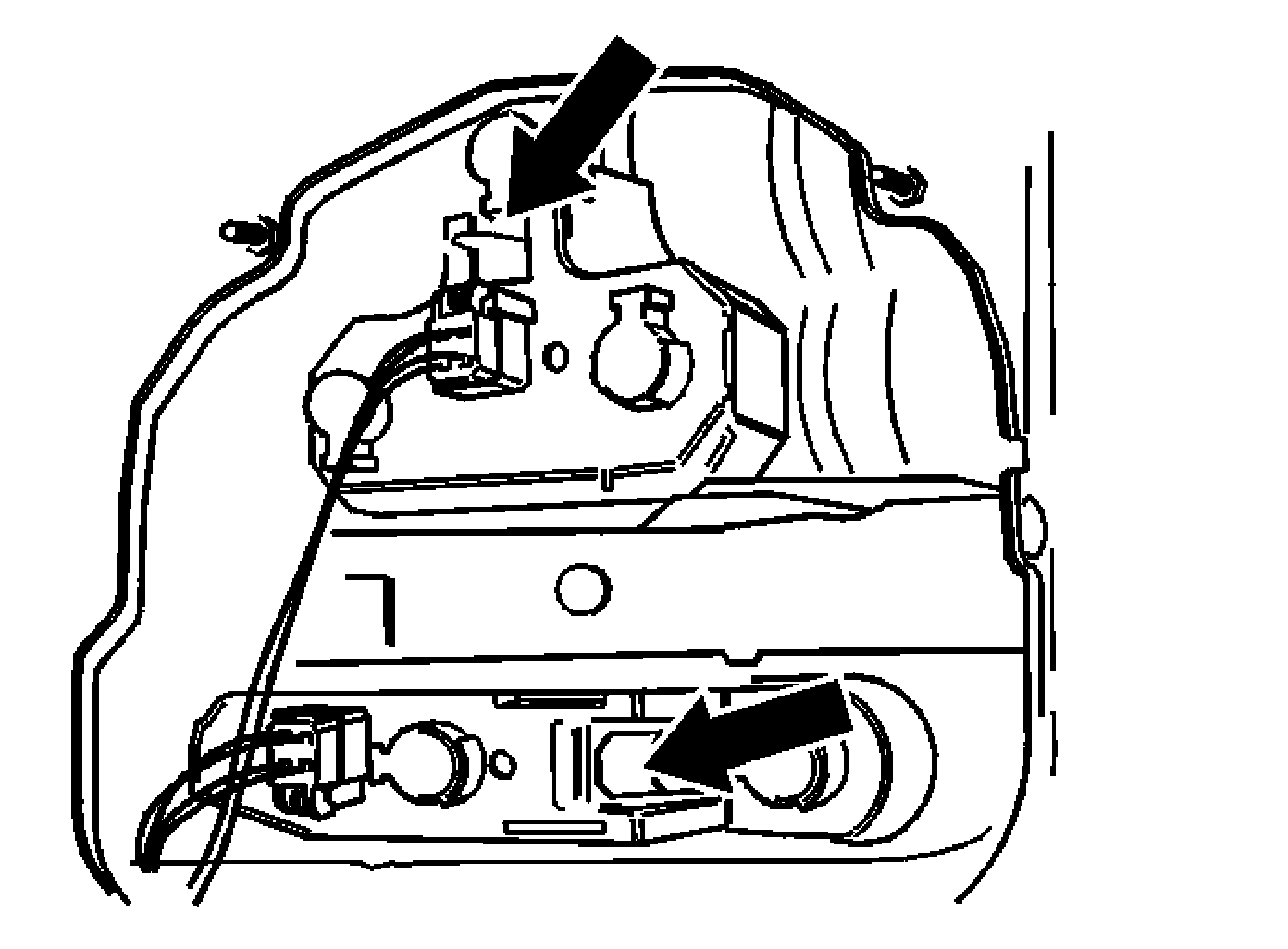

- Press the spring clip on the lamp holder. Angle out and remove the lamp holder
- Remove the bulb.

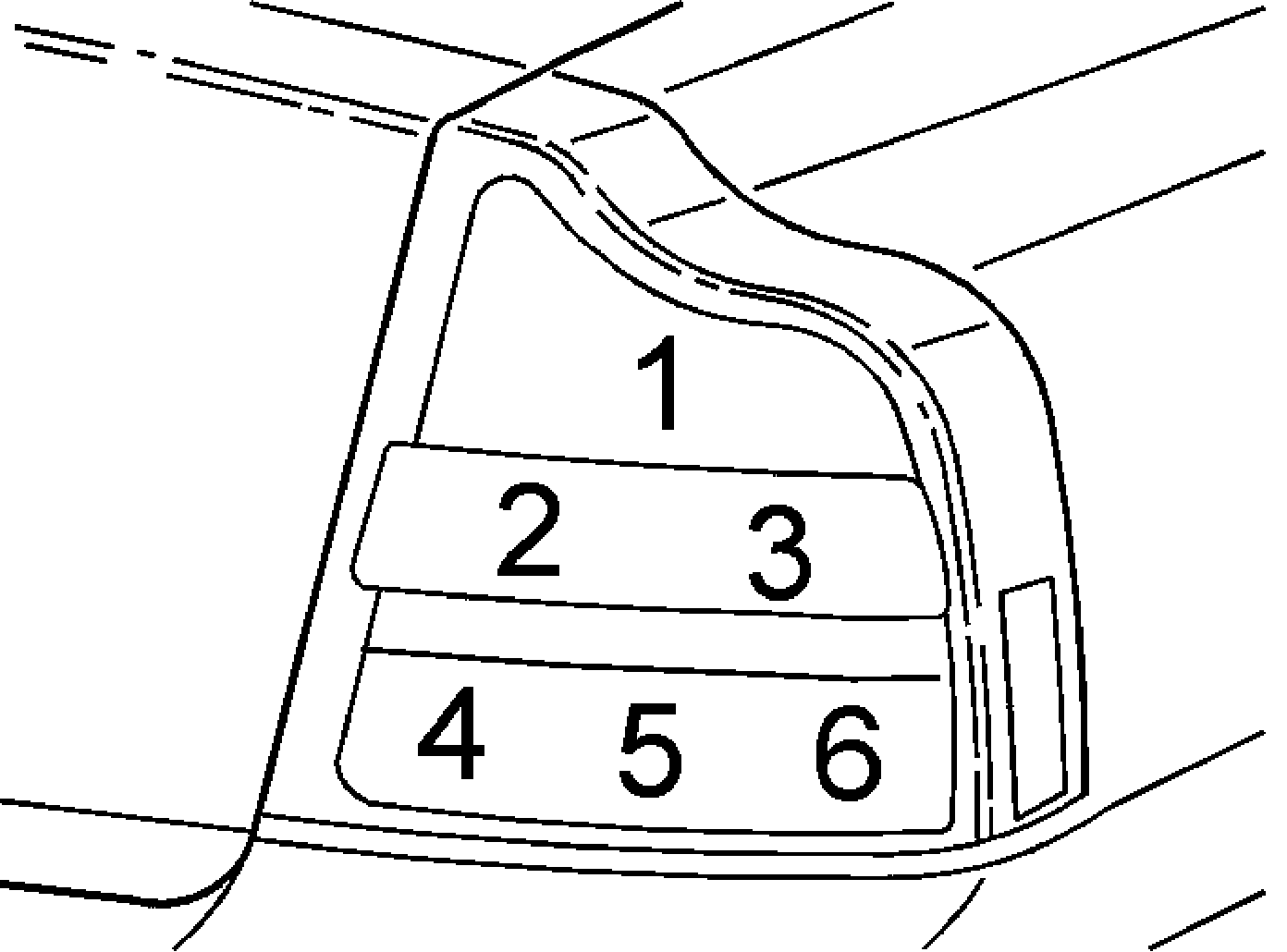

For the location of lamps in the tail lamp, see the below figure.






1. Stop (brake) lamps
2. Back-up (reversing) lamps
3. Turn signal lamps
4. Rear fog lamps
5. Tail lamps
6. Tail lamps.

NOTE: There is only a fog tail lamp bulb in one of the tail lamps. In the left tail lamp on left-hand drive cars and in the right on right-hand drive cars.

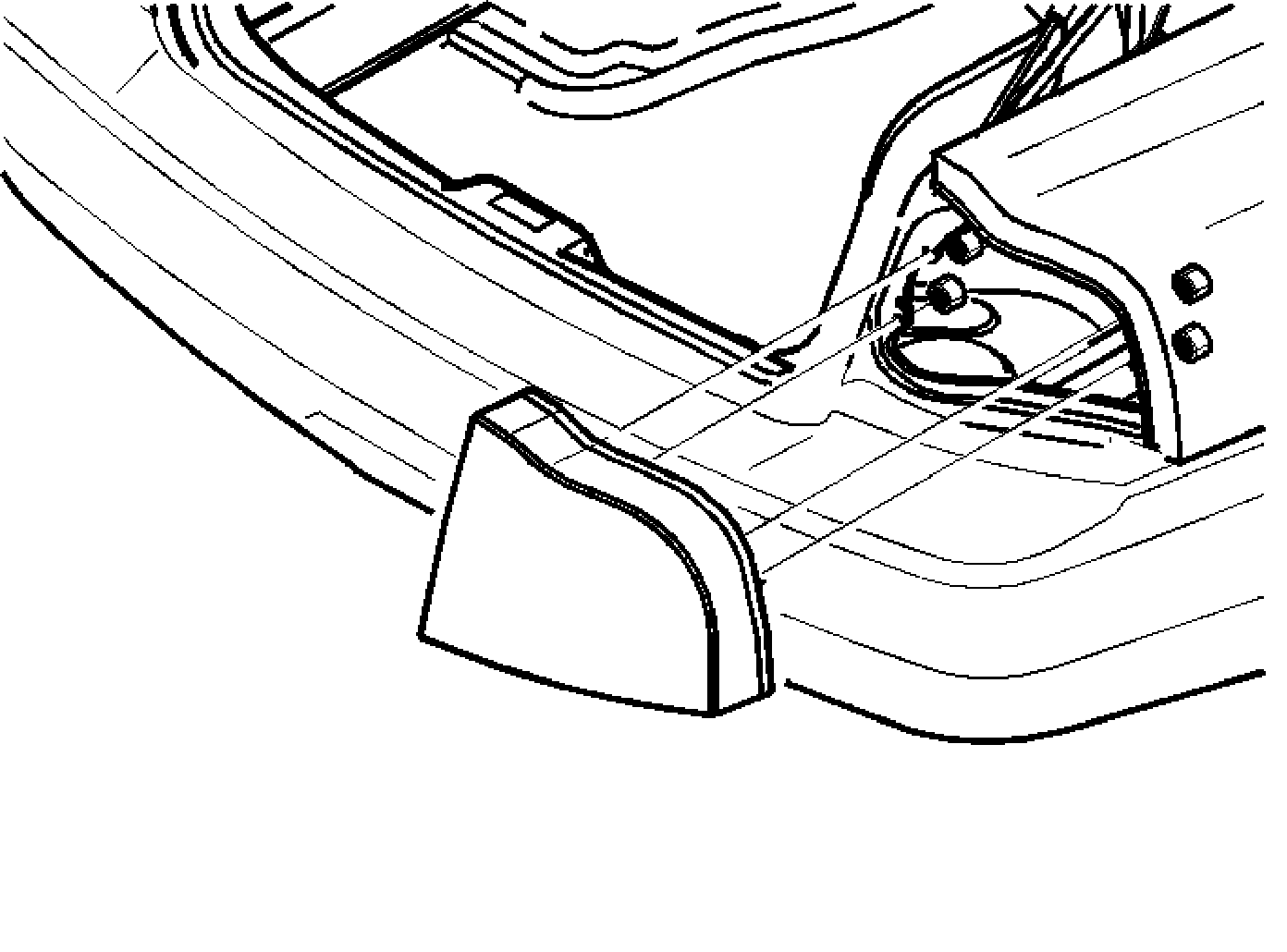

Tail lamp assembly






- Disconnect the connectors
- Remove the 4 tail lamp nuts
- Remove the tail lamp.

Installation

Tail lamp and bulbs
In reverse order.

Tighten the nuts. Tighten to 10 Nm.
