LIN Data Communication

LIN Data Communication

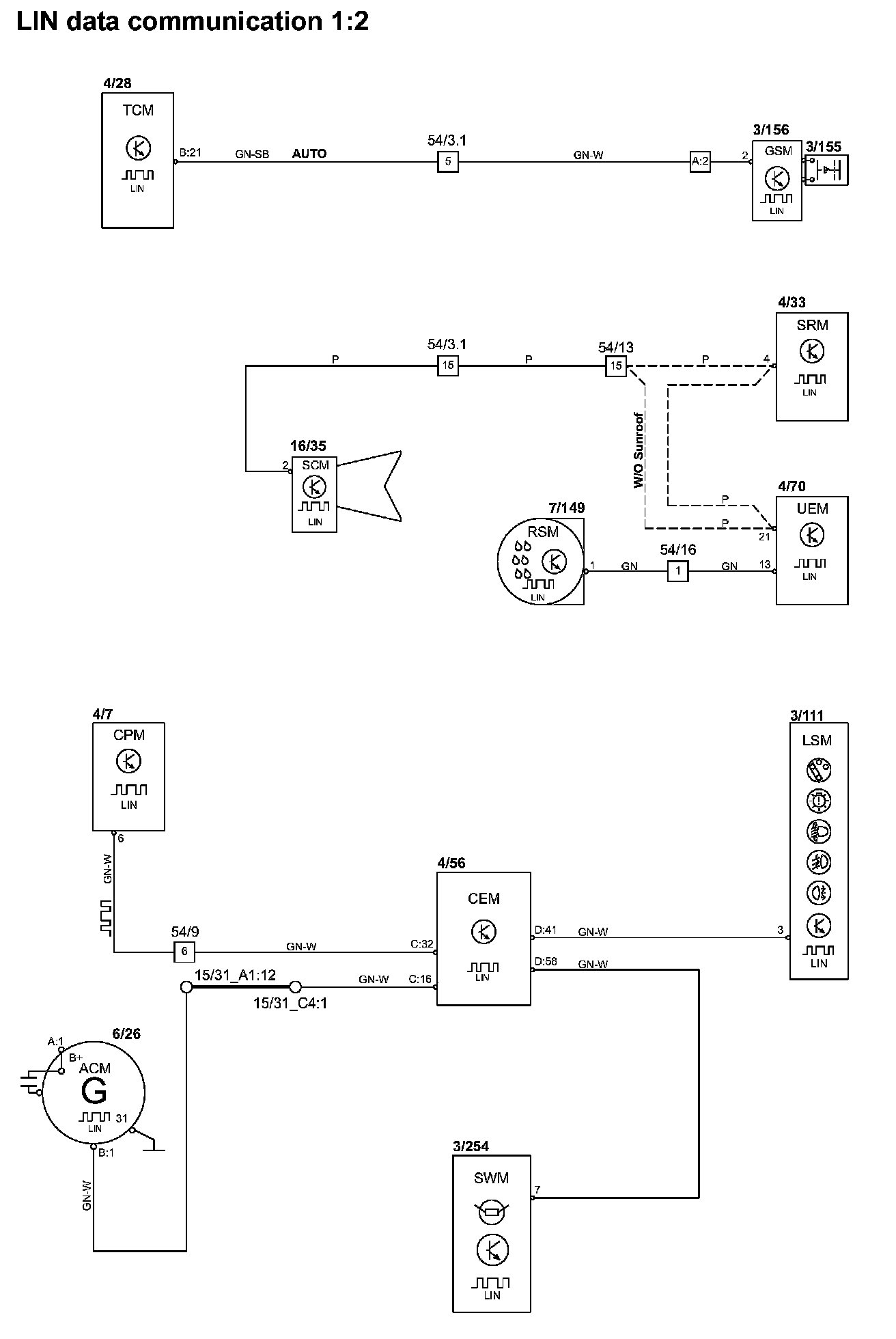

LIN Data Communication, Part 1:

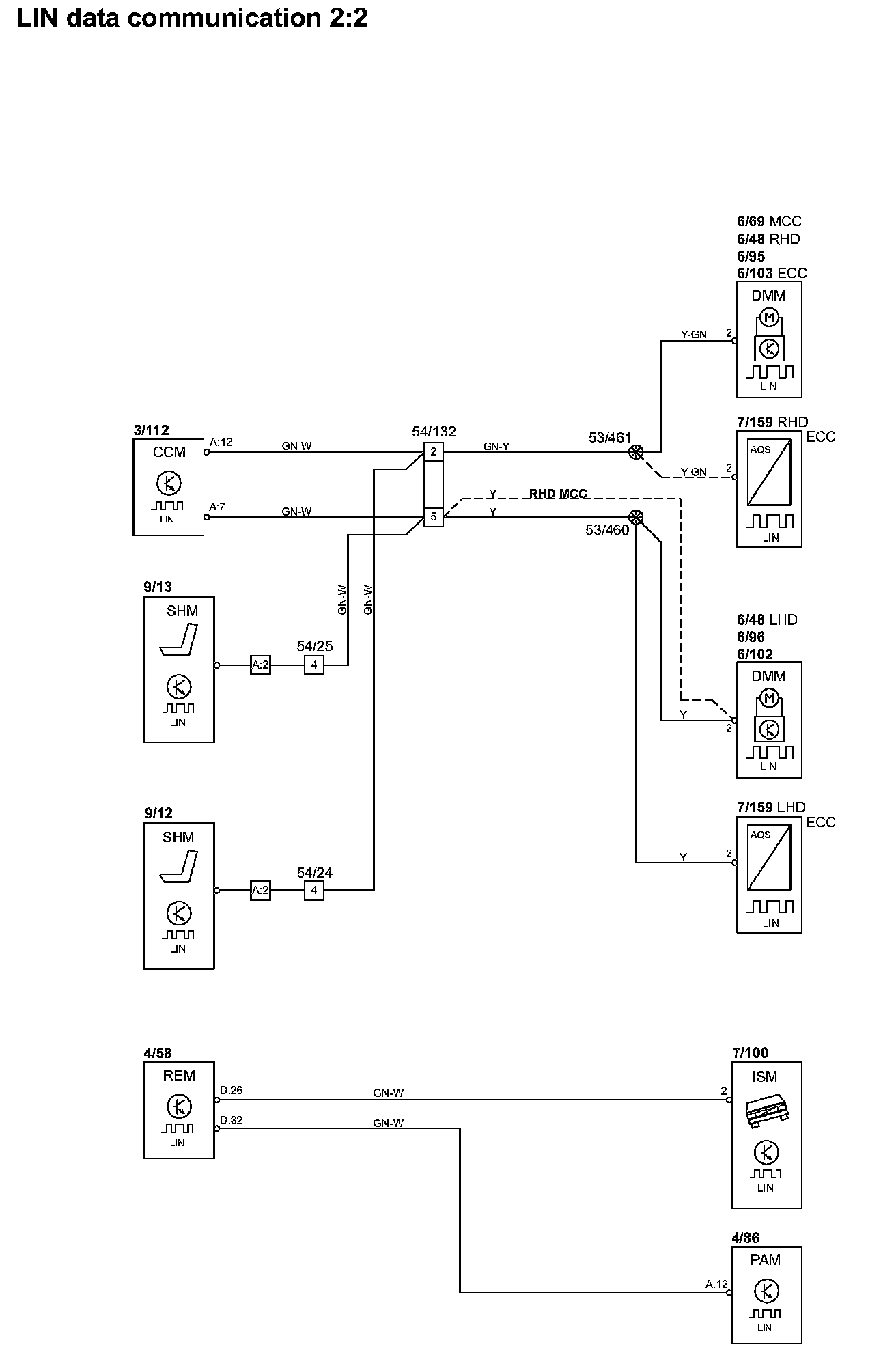

LIN Data Communication, Part 2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components by Component Number: List of Components By Component Number
