High Speed CAN Data communication

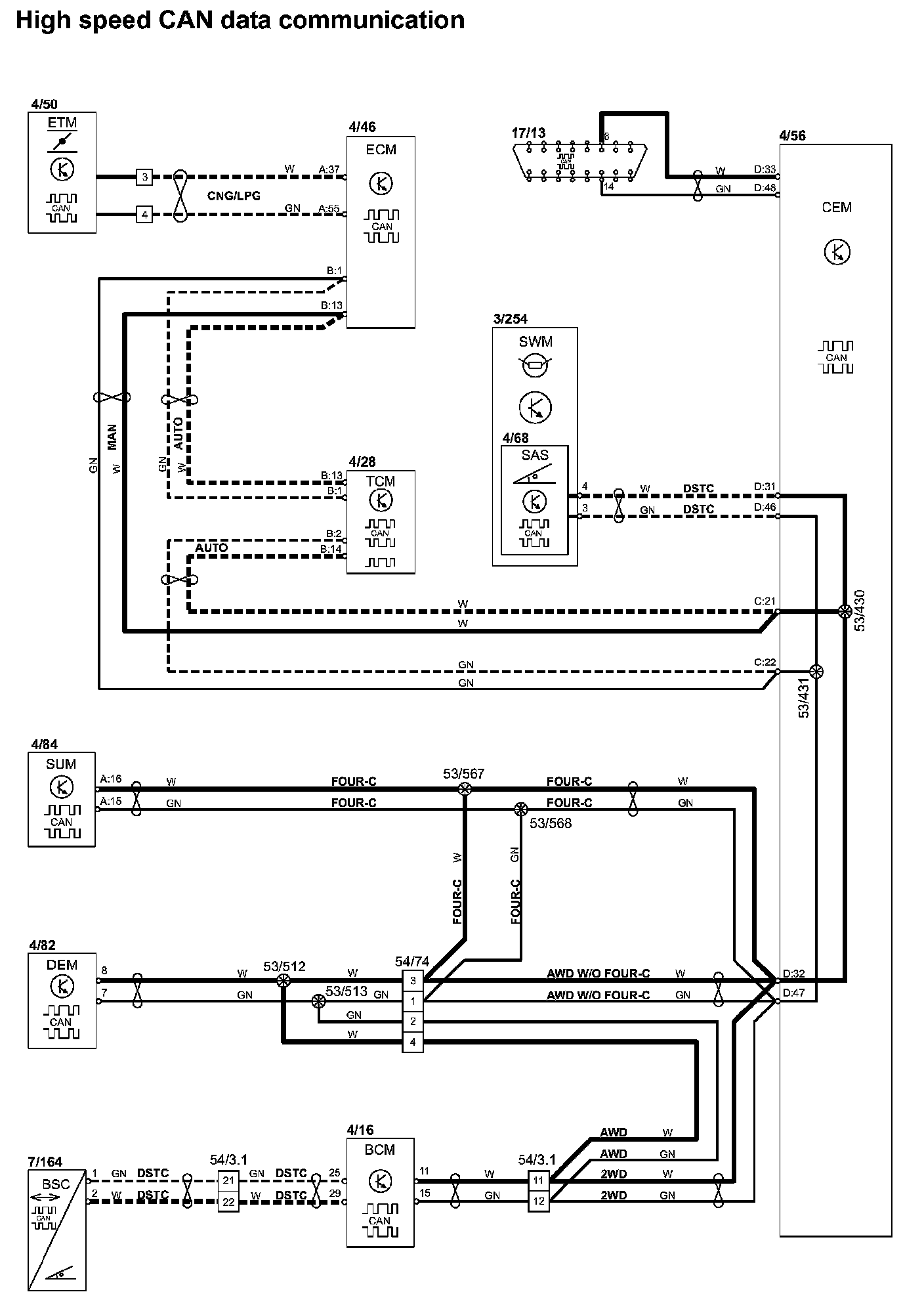

High Speed CAN Data Communication


High Speed CAN Data Communication:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations

List of Components by Component Number: List of Components By Component Number
