Home >> Volvo >> 2004 >> S80 AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

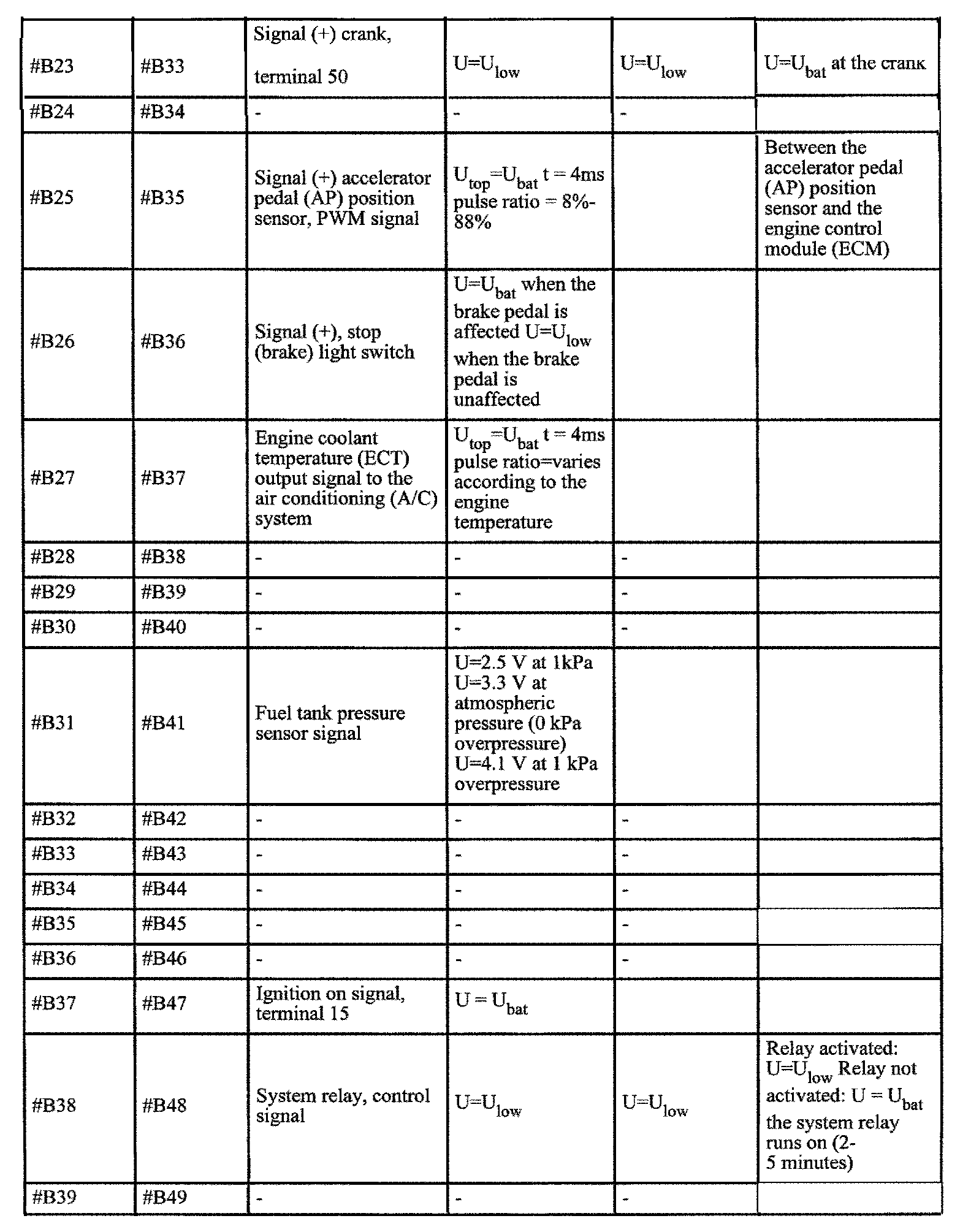

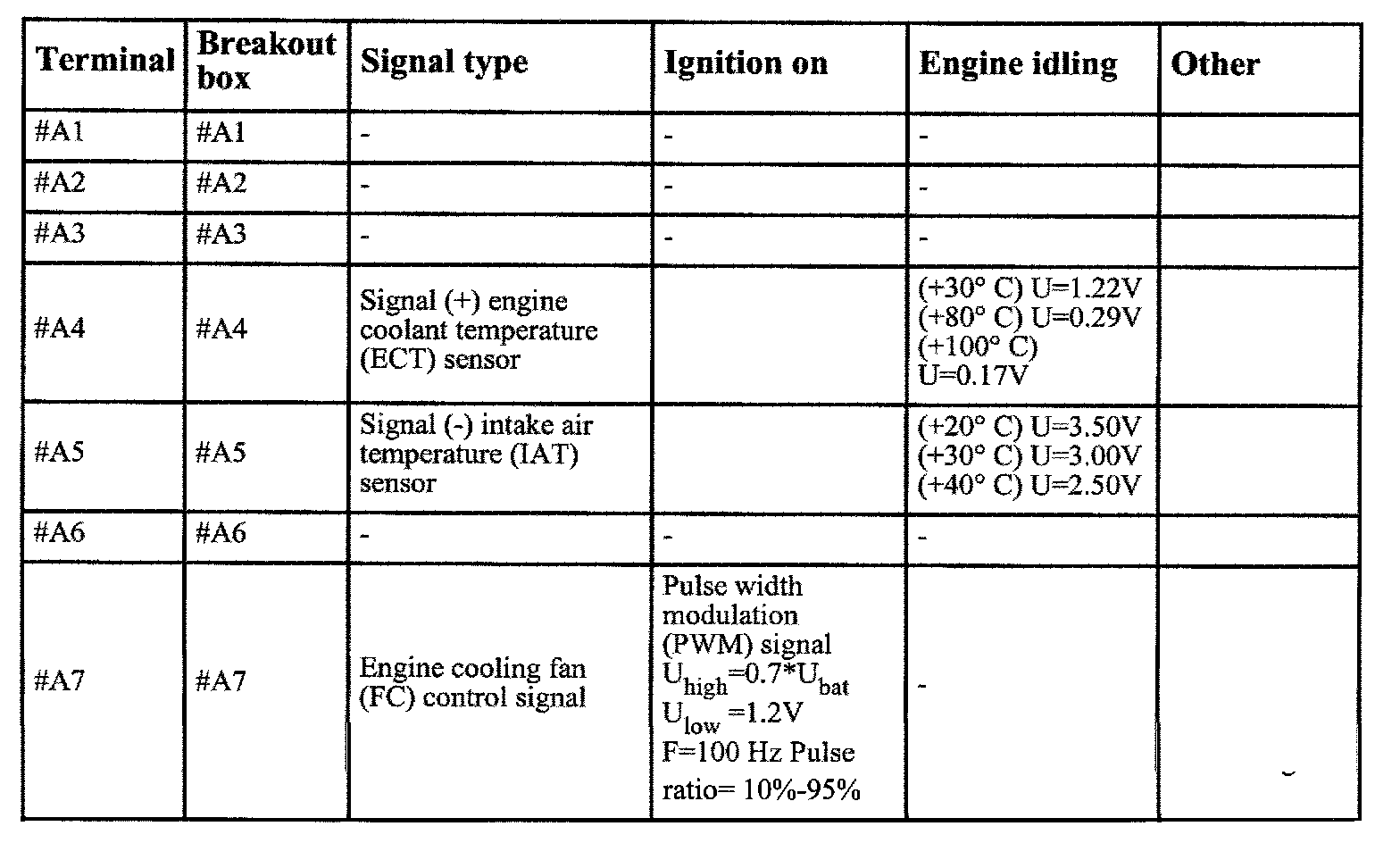

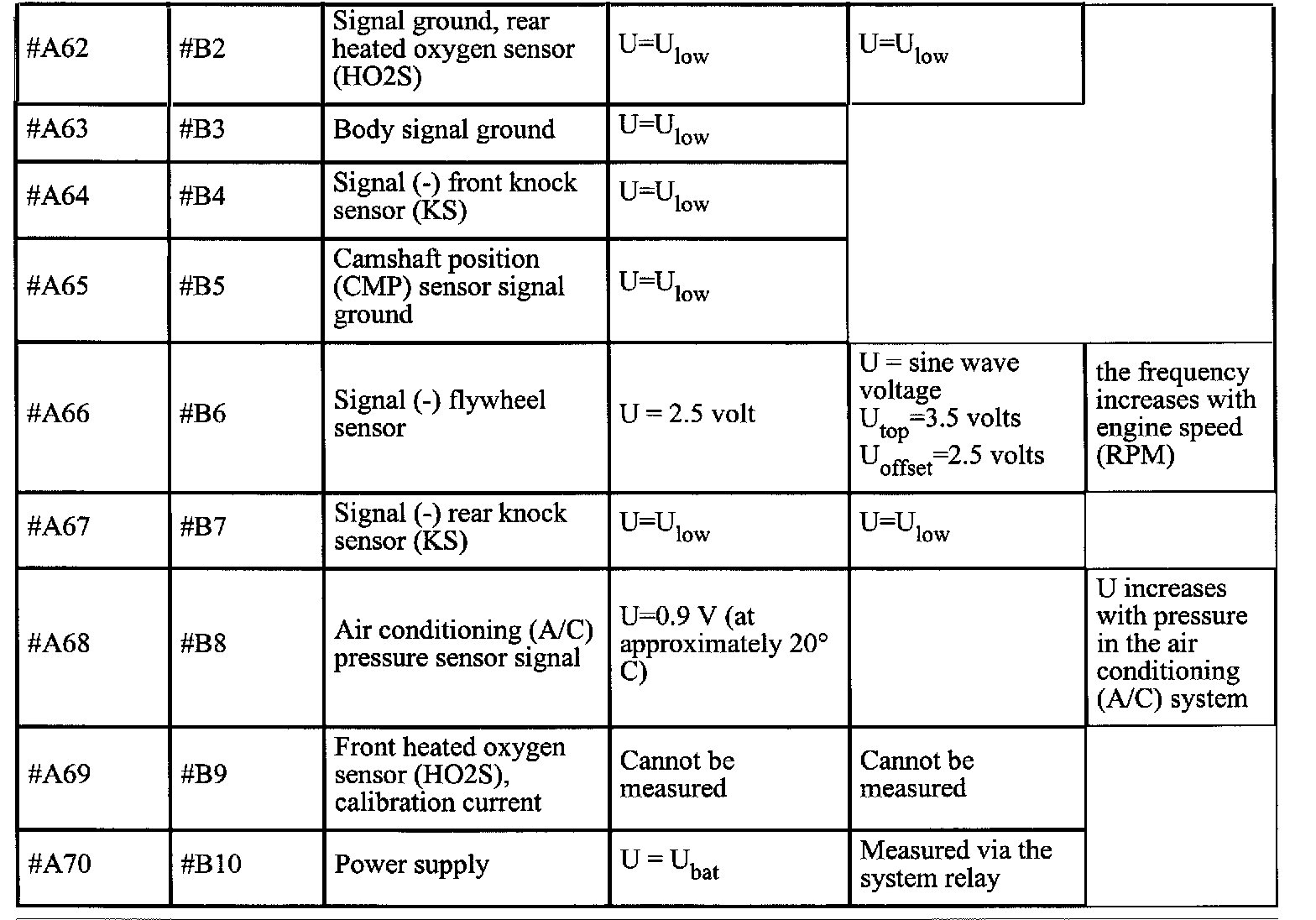

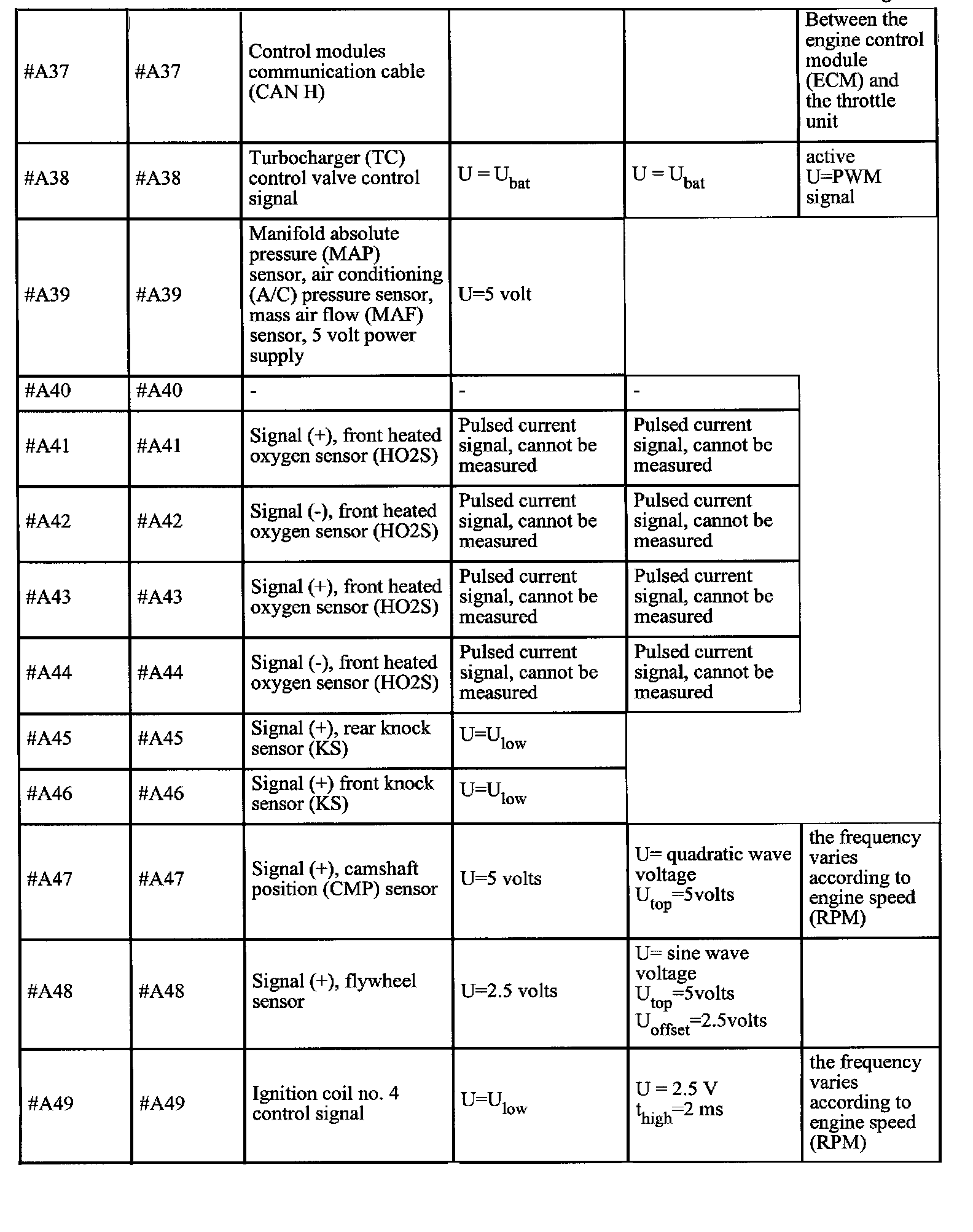

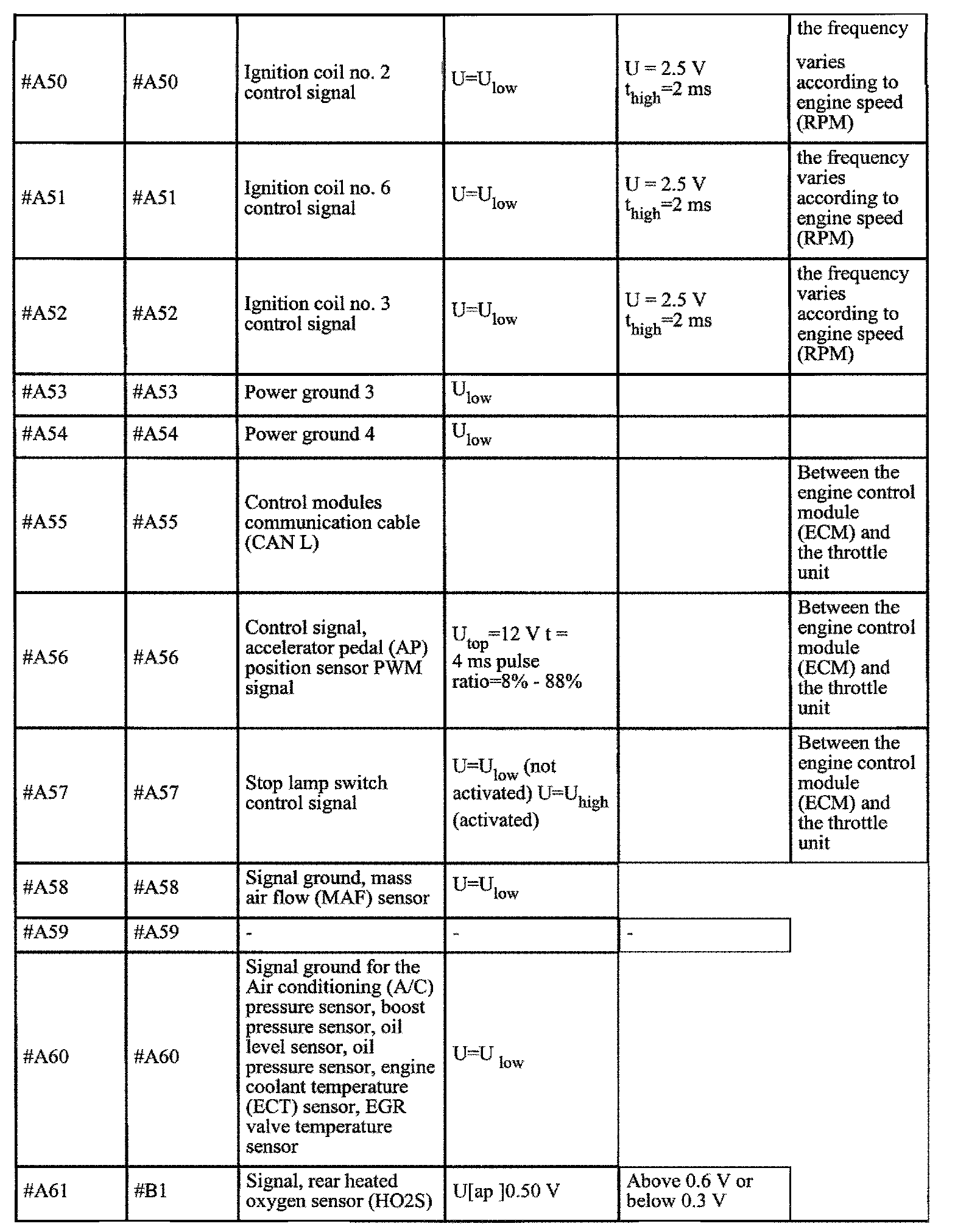

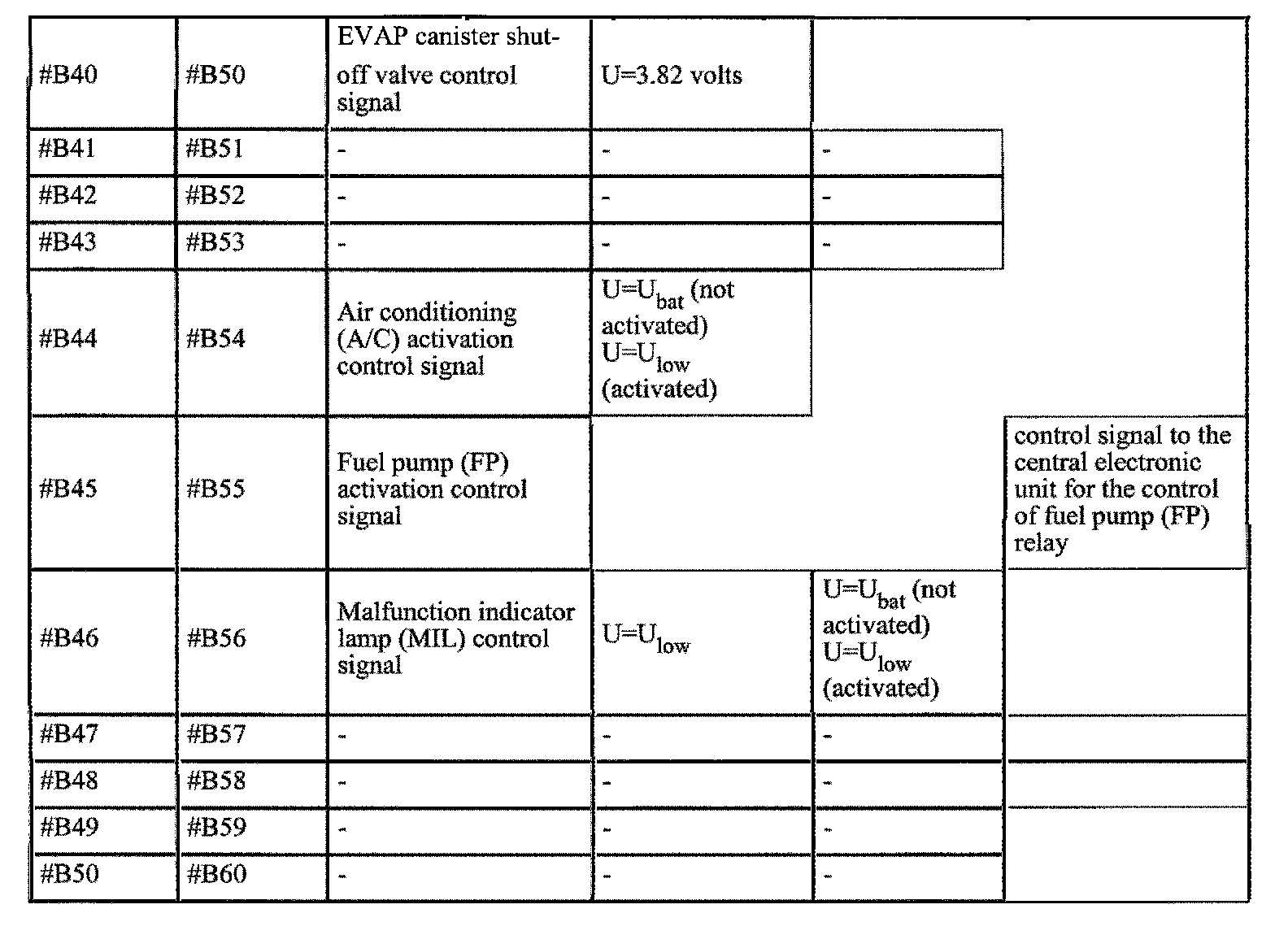

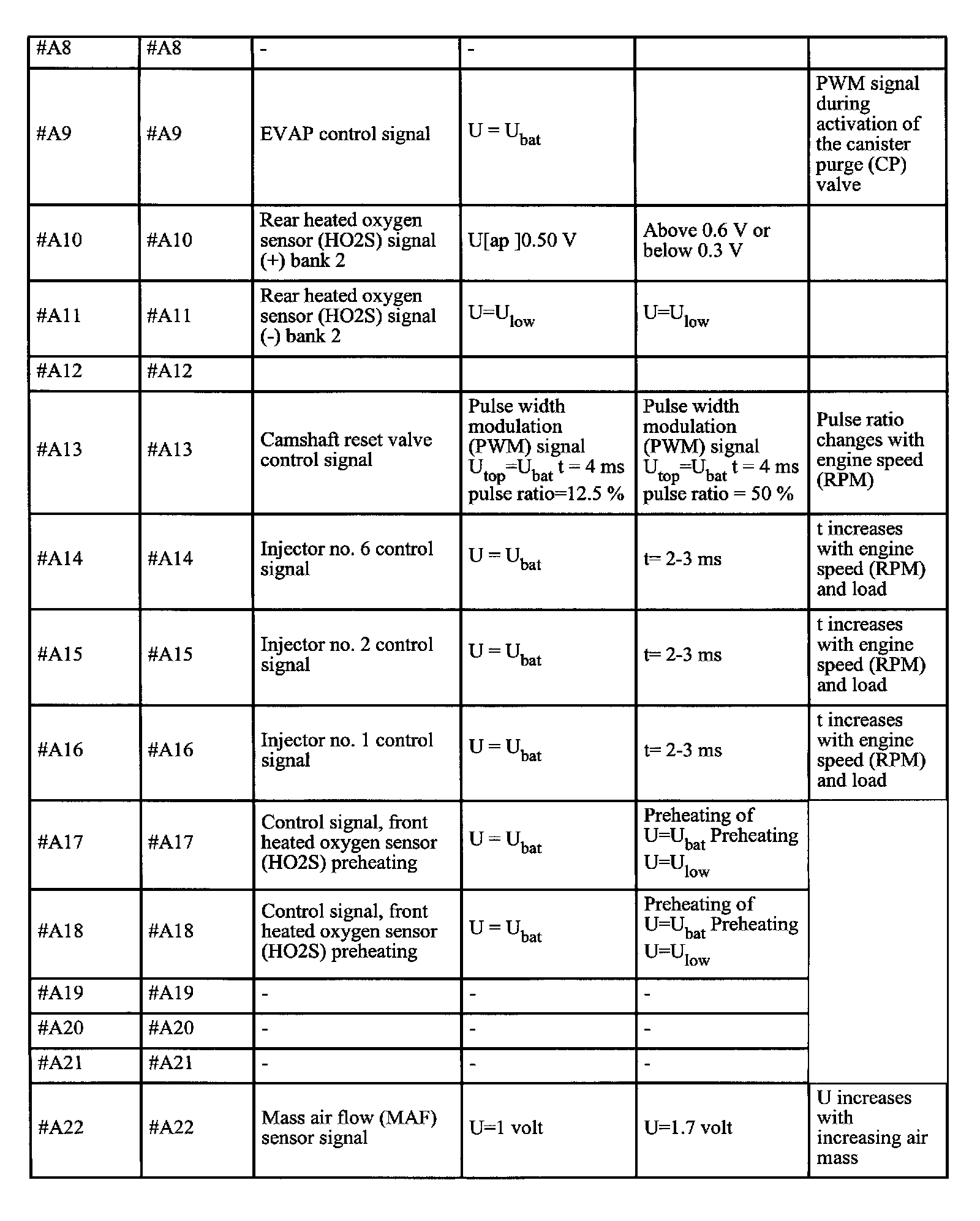

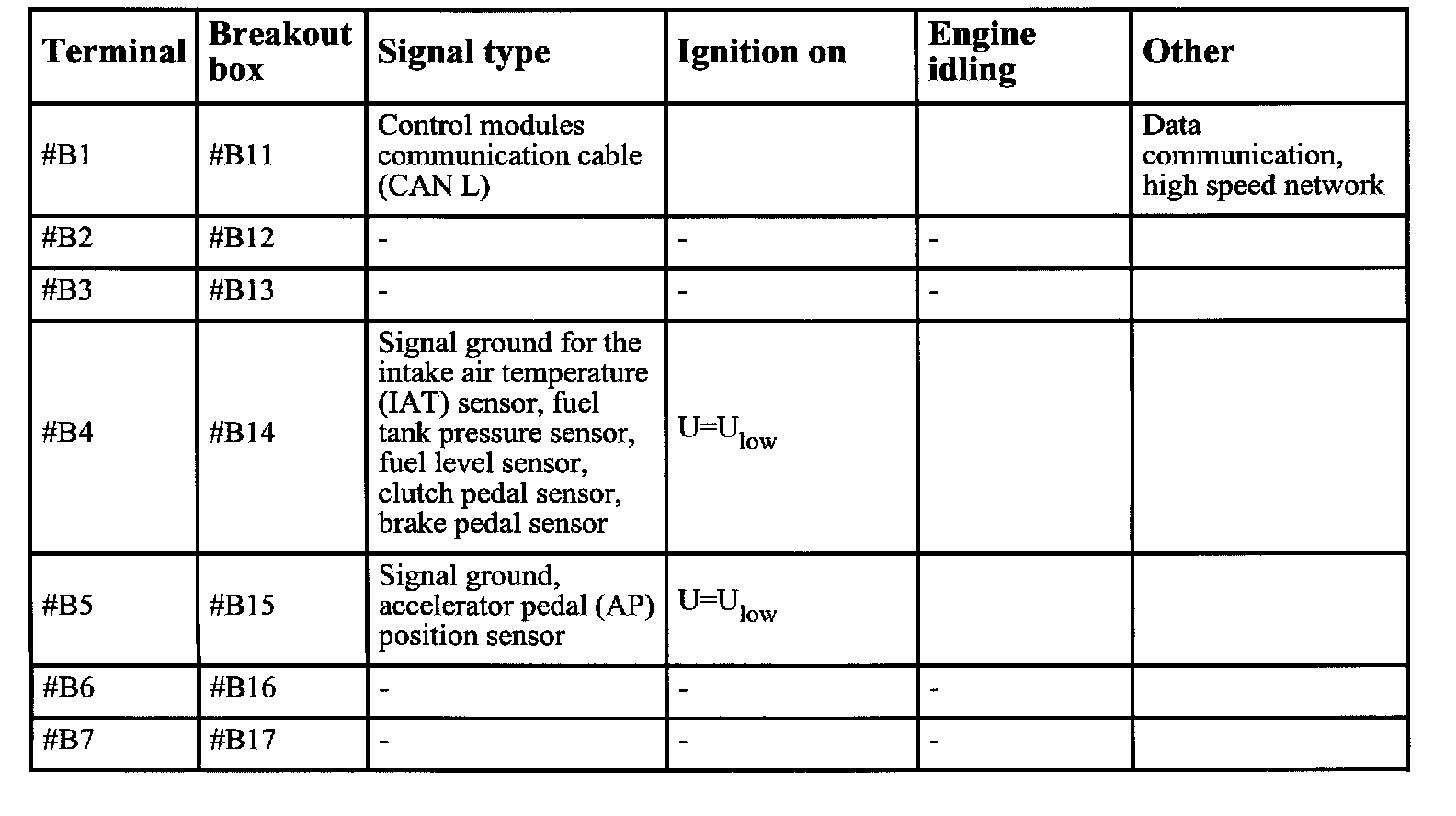

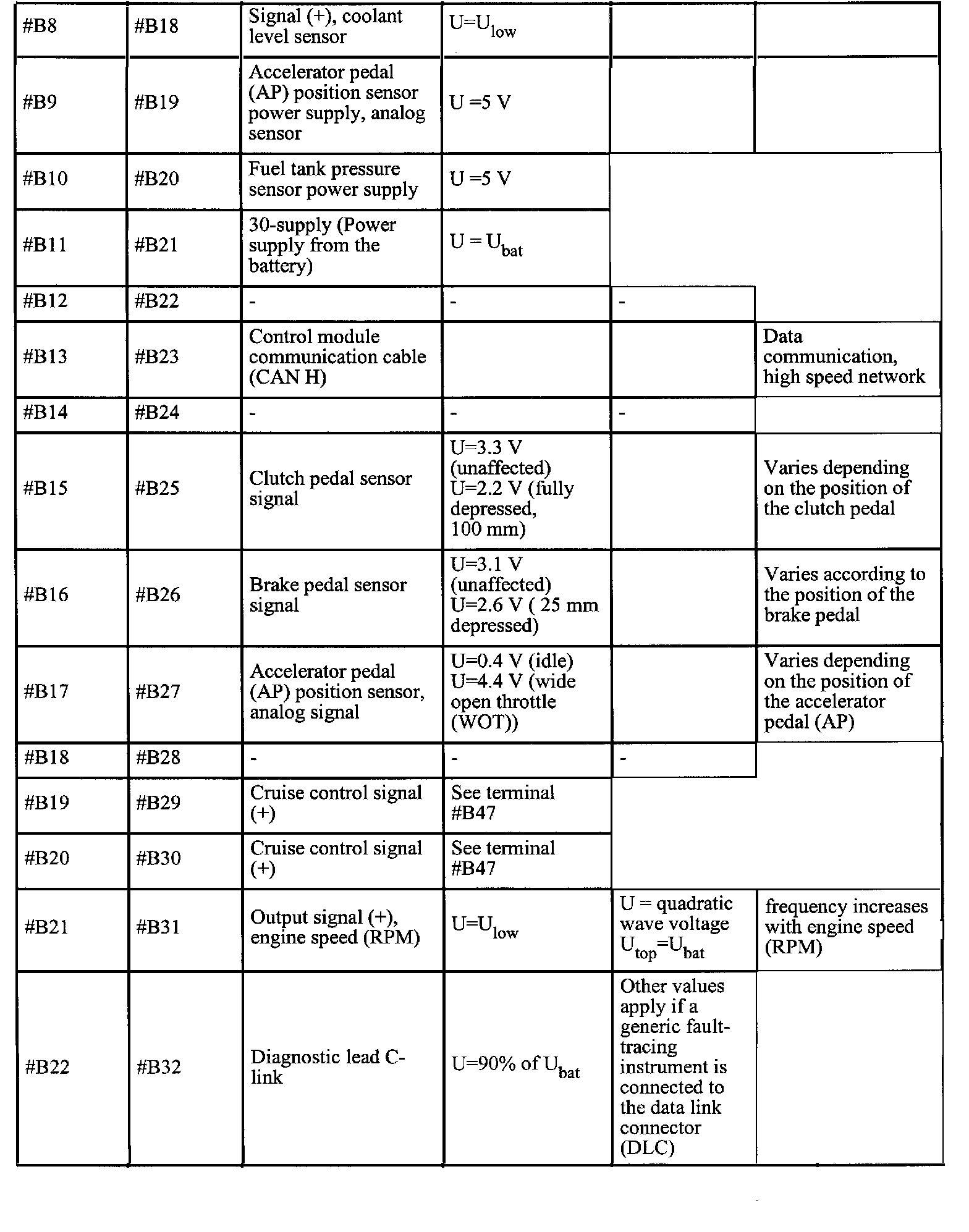

Engine Control Module













Part 1 Of 6:





Part 2 Of 6:





Part 3 Of 6:





Part 4 Of 6:





Part 5 Of 6:





Part 6 Of 6:






Part 1 Of 4:





Part 2 Of 4:





Part 3 Of 4:





Part 4 Of 4:
