Signal Description, Phone Module (PHM)
Signal description. Phone module (PHM)
Connecting the breakout box and checking the ground terminal
Note! It is important to connect the breakout box and check ground terminals before taking readings.
Definitions

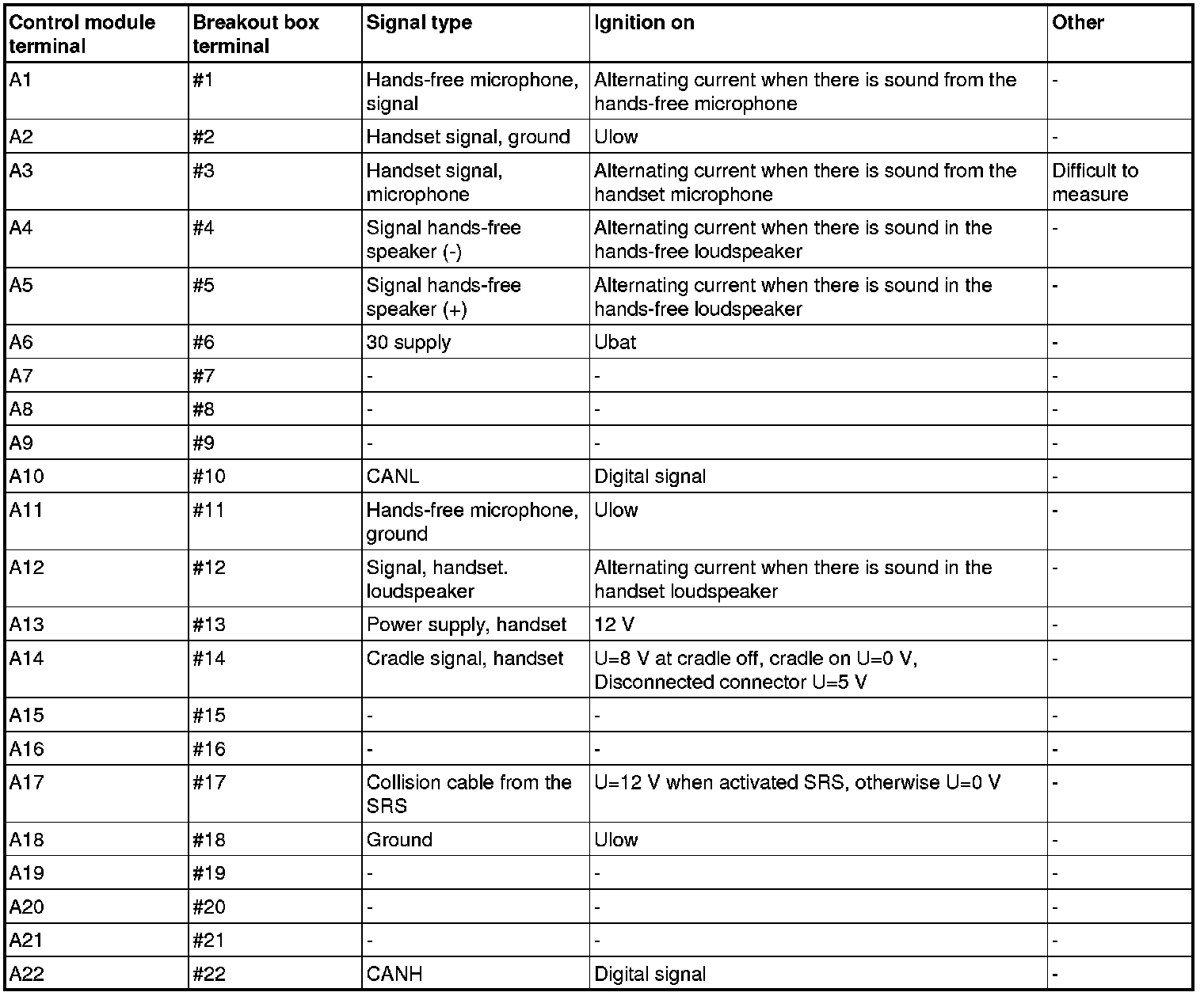

Connector A, car-phone module (PHM)

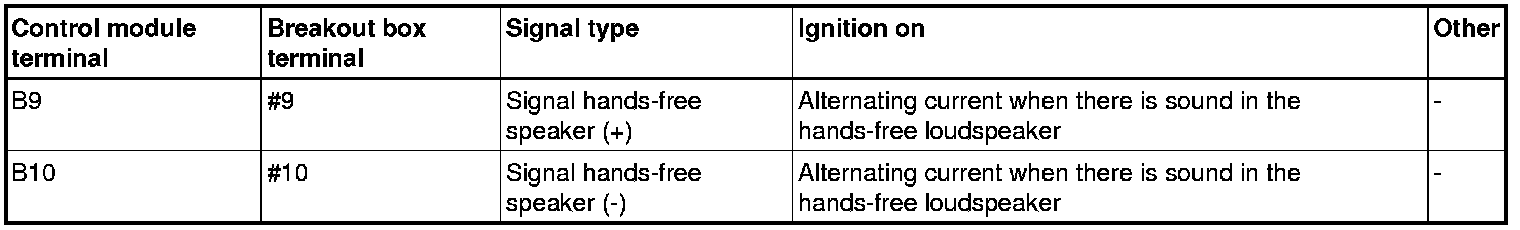

Connector B, hands-free speaker connector on the car-phone module (PHM)

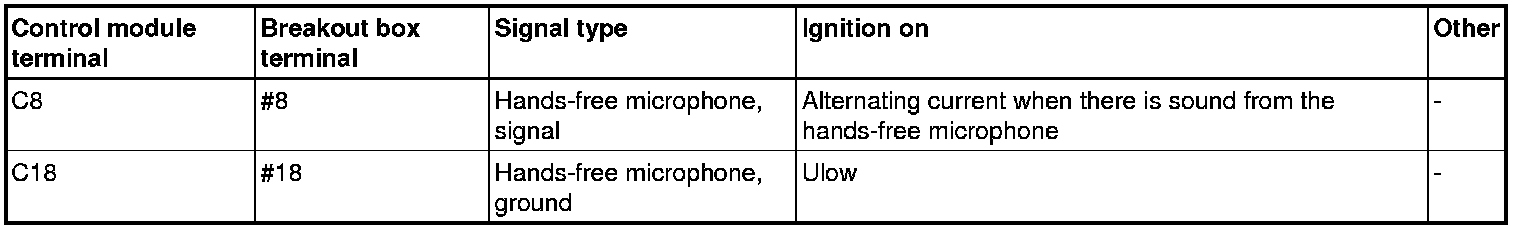

Connector C, hands-free microphone connector in the A-post
Connector for cars manufactured up to week 34, 2001 inclusive

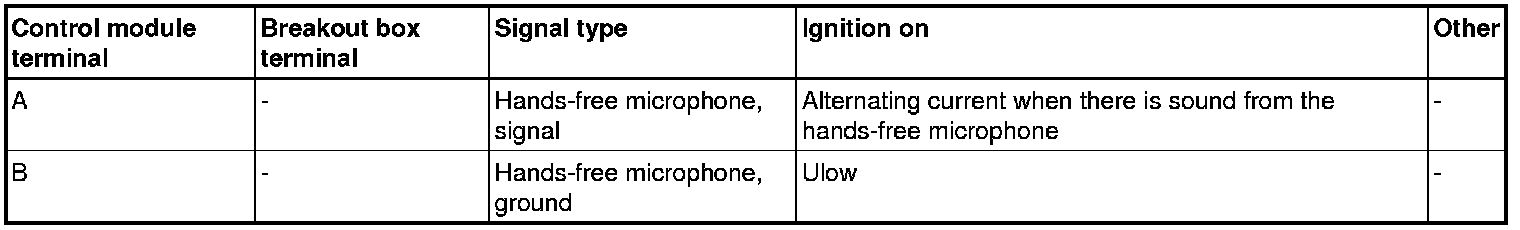

Connector for cars manufactured from week 35, 2001 inclusive

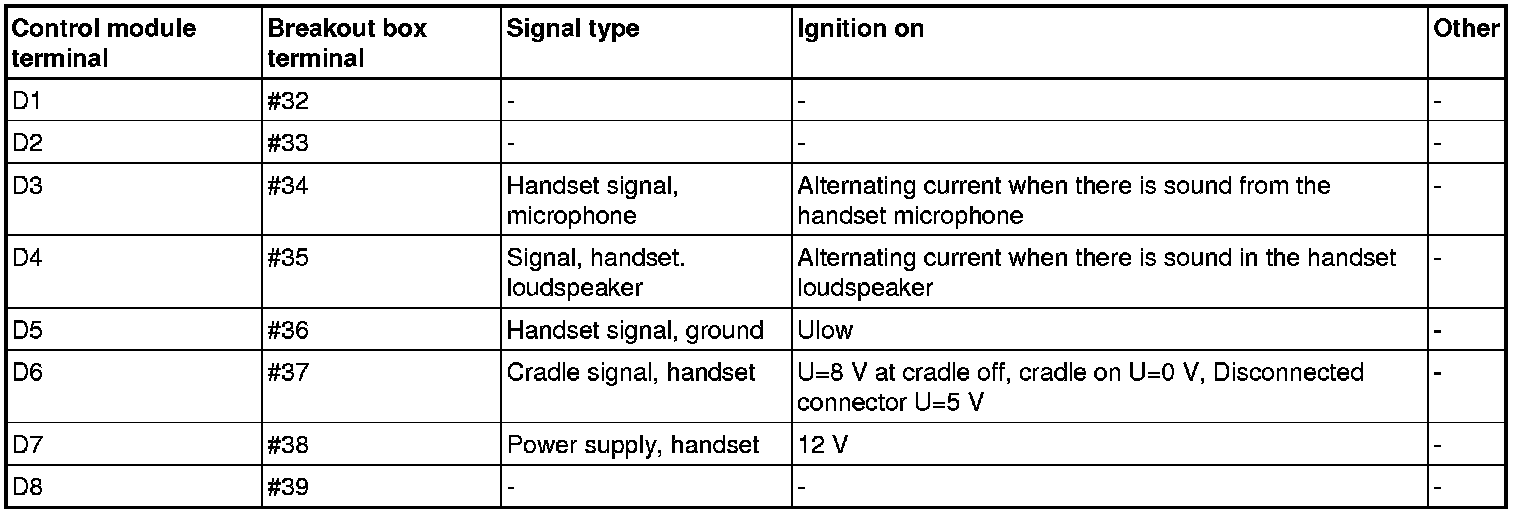

Connector D, Handset connector

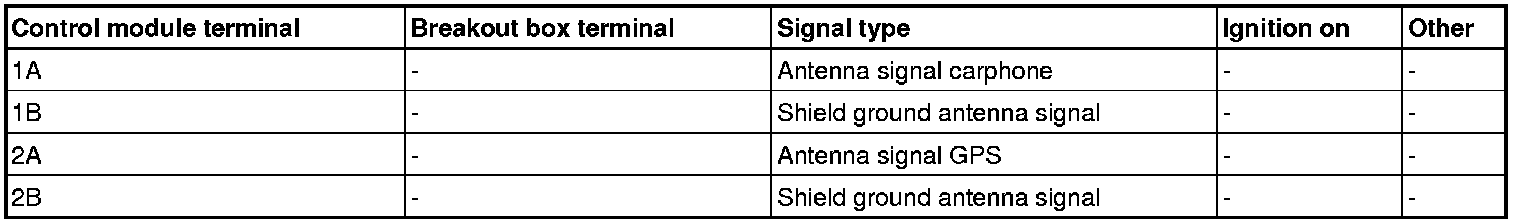

Connector E, GPS/car-phone antenna, double Hirose GT5 in the right A-post

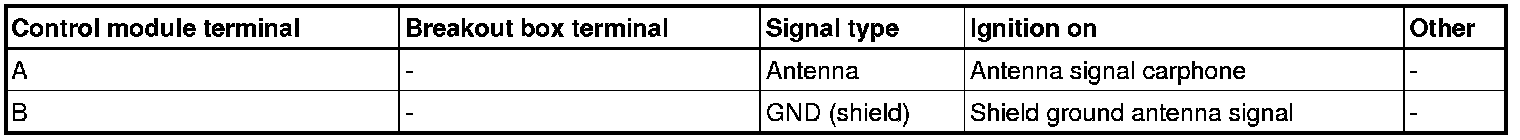

Connector F, car-phone antenna (brown connector), single Hirose GT5

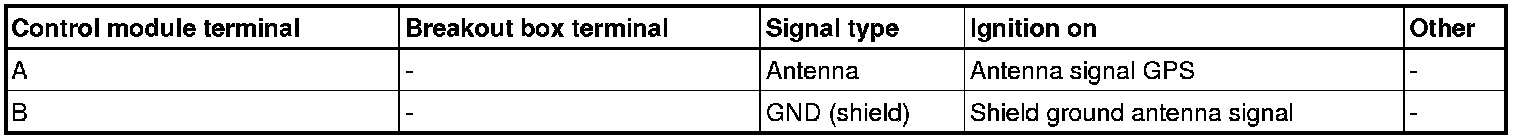

Connector G, GPS- antenna (gray connector), single Hirose GT5
Note! Applies only to car phones with Volvo On Call.

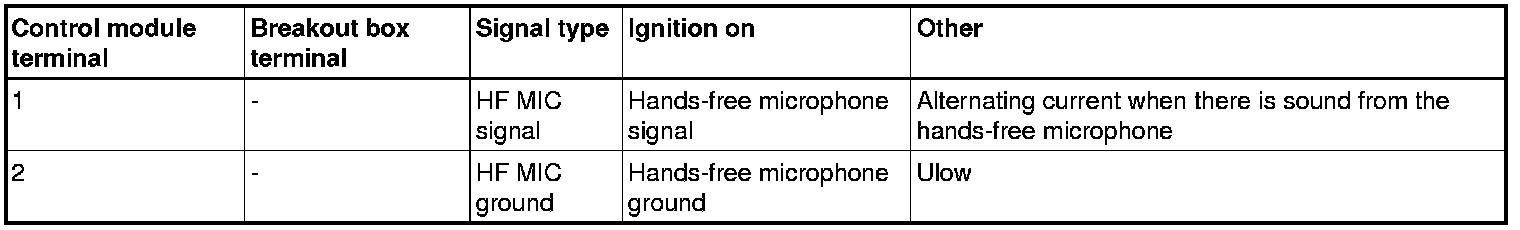

Connector H, Hands-free microphone. Only on cars manufactured up to week 34, 2001 inclusive
