Removal and Replacement

Non-return valve, windshield washer fluid, replacing

Removal

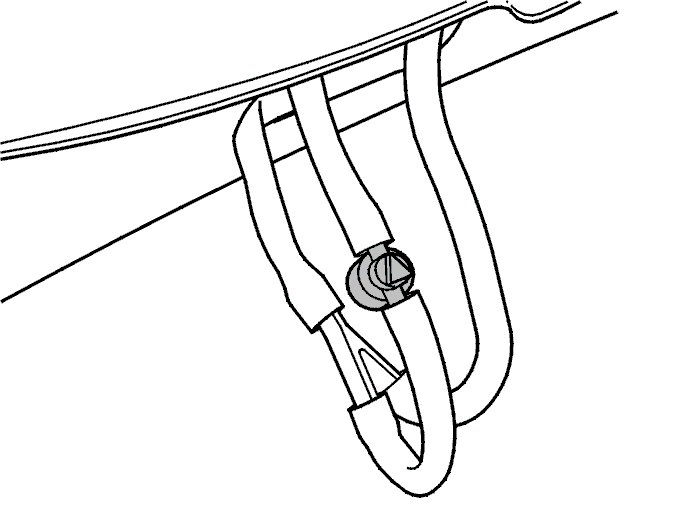

Check valve




- Detach and pull out the hose, including the non-return valve. See Washer nozzle, replacing, B5244T5, B5254T2 Removal and Replacement.




- Detach the hoses from the non-return valve.

Note! Note the direction of flow marking on the non-return valve.

Installation

Check valve
- In reverse order.

Note! Check the direction of flow of the non-return valve.
