Gear Selector Lever Knob, Spaceball

Gear selector lever knob, Spaceball











Gear selector lever knob, Spaceball

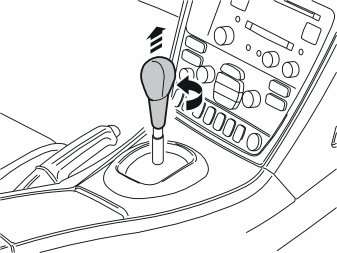

- Press the gear selector lever knob down and twist a ¼turn to the left.









Illustrations A and B

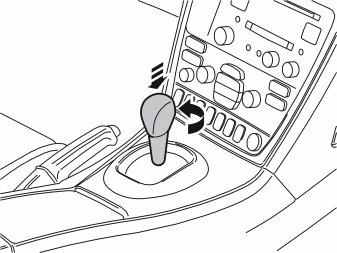

- Pull the gear selector lever knob off the gear selector lever. It may be necessary to twist and turn the gear selector lever knob slightly to remove it.

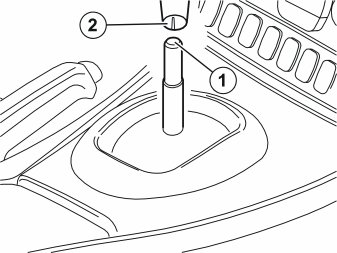

Hint: Once the gear selector lever knob has been turned 45°, push it forwards and pull from the lug (1) on the gear selector lever. The lug (1) on the gear selector lever can only be inserted diagonally through the hole in the lower section (2) of the gear selector lever knob.

- Install the new gear selector lever knob on the gear selector lever. Once turned a ¼turn to the left, press down and twist straight forward
- Pull the gear selector lever knob to check that it is secure.
