Transmission, Check Before Installing

Transmission, check before installing

Note: As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

Checking before installing

Note: The input shaft must be lubricated before the transmission is installed.





Check that the transmission and engine mating surfaces are absolutely clean.
Also check that the guide sleeves on the engine are in place and fault free.

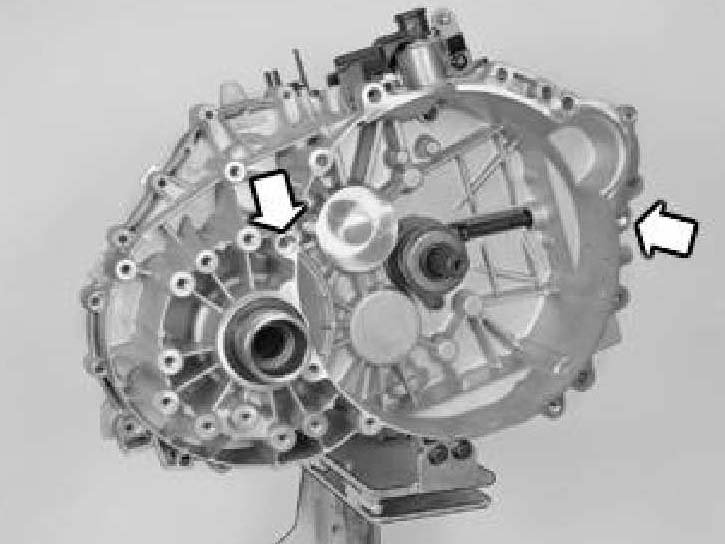

Lubricate the holes in the transmission (for the guide pins). Use a little grease. This also applies to the guide holes for the starter motor.
