Cell Phone - Bluetooth Hands Free Kit Information
NO: 39-50DATE: 9-7-2005
MODEL:
XC90 All
2001- S60/V70/XC70/S80 (excl. Executive, Elite, Premier, 75th anniversary)
2005- S40 from ch. no. 80924 // V50 from ch. no. 78750
SUBJECT: Bluetooth Hands Free Kit Information
REFERENCE: VRC2/Aftersales information
The purpose of this TNN is to provide information
The Volvo Bluetooth hands free kit will integrate most Bluetooth enabled cell phones into the Volvo audio system. It consists of a base kit, and an adapter harness which is vehicle specific. The system is wired into the speaker output of the Volvo audio system and will automatically mute the audio and navigation system when making an outgoing call or receiving an incoming call.
In addition, the system uses speech recognition for initiating call and menu commands.

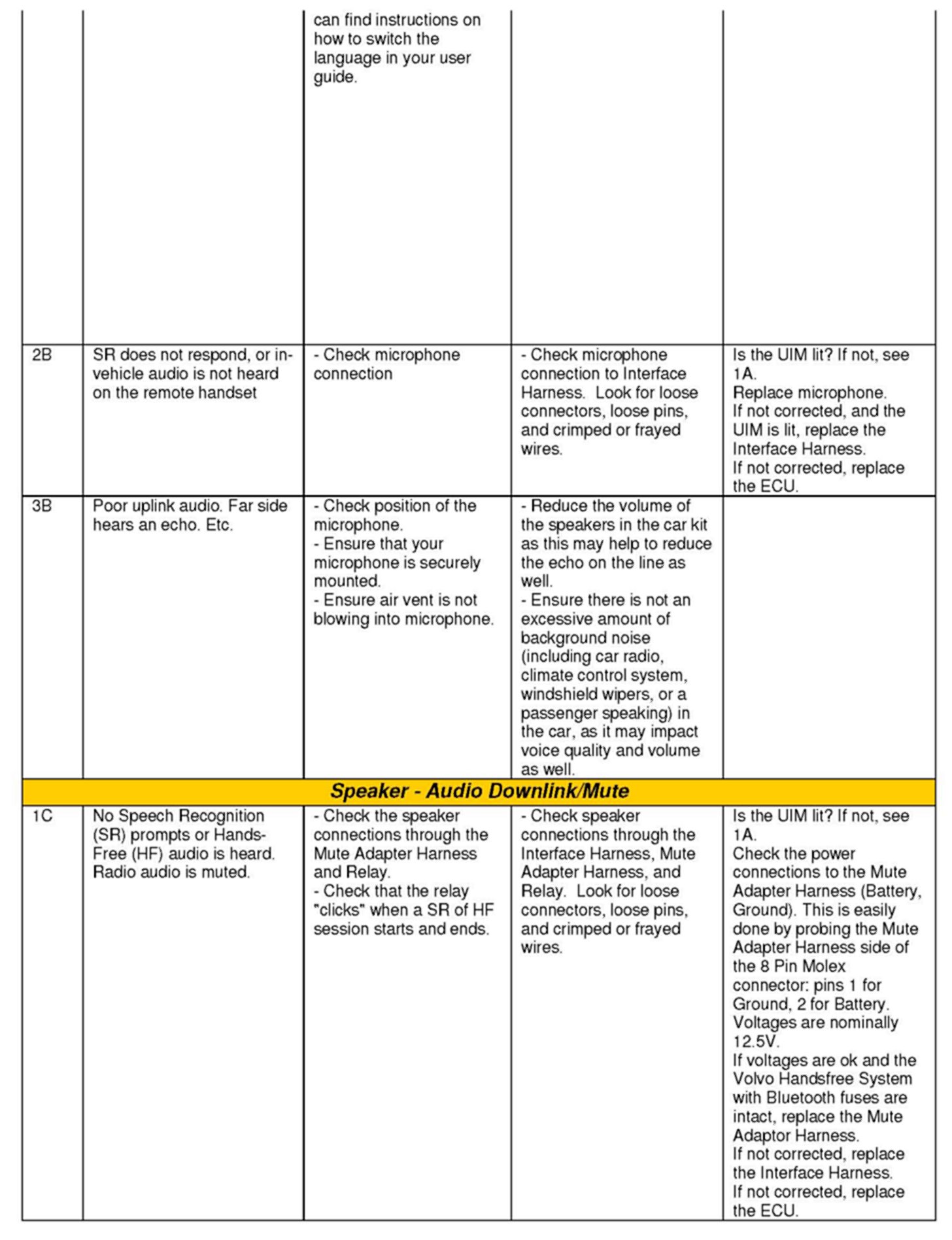

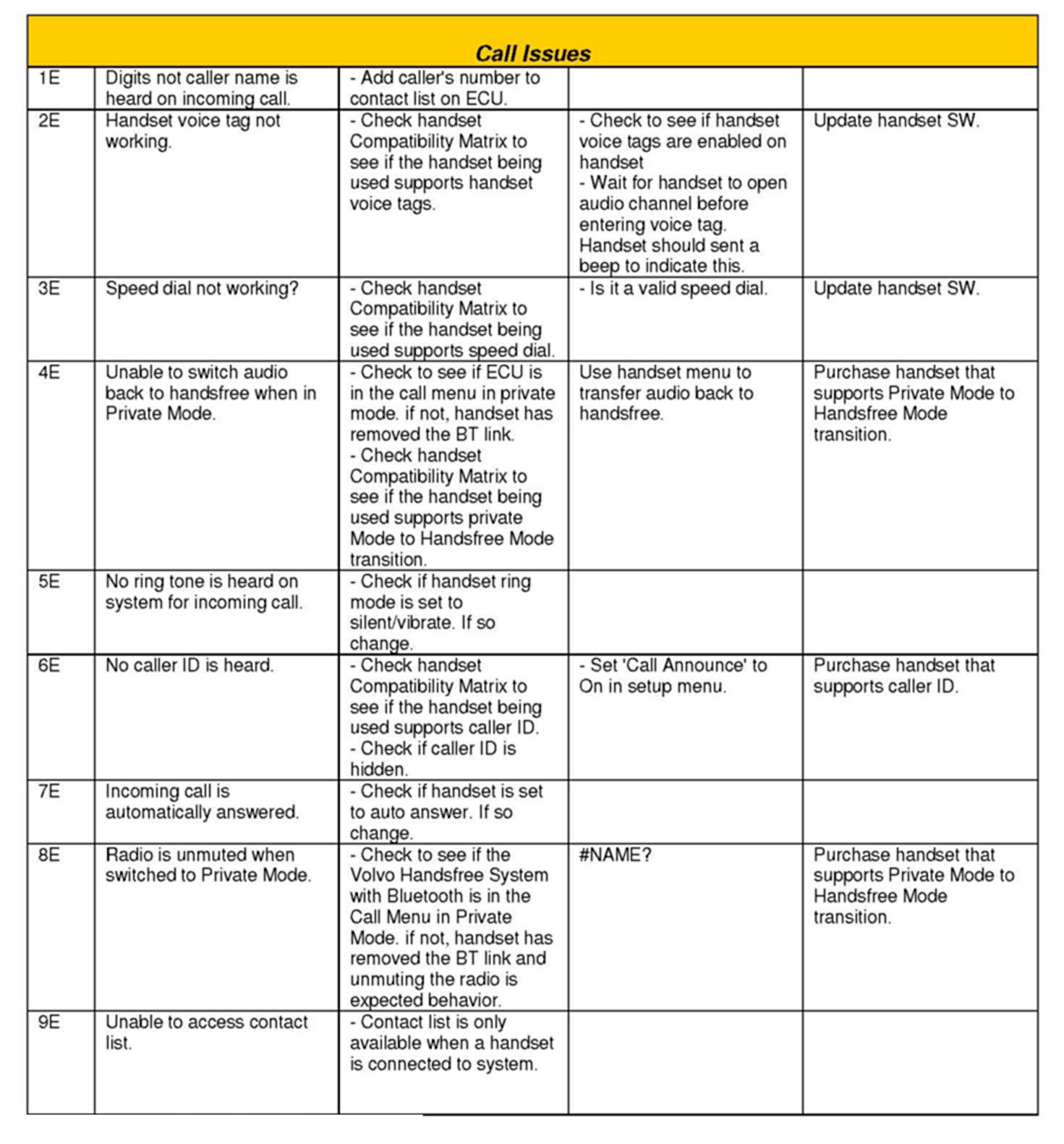

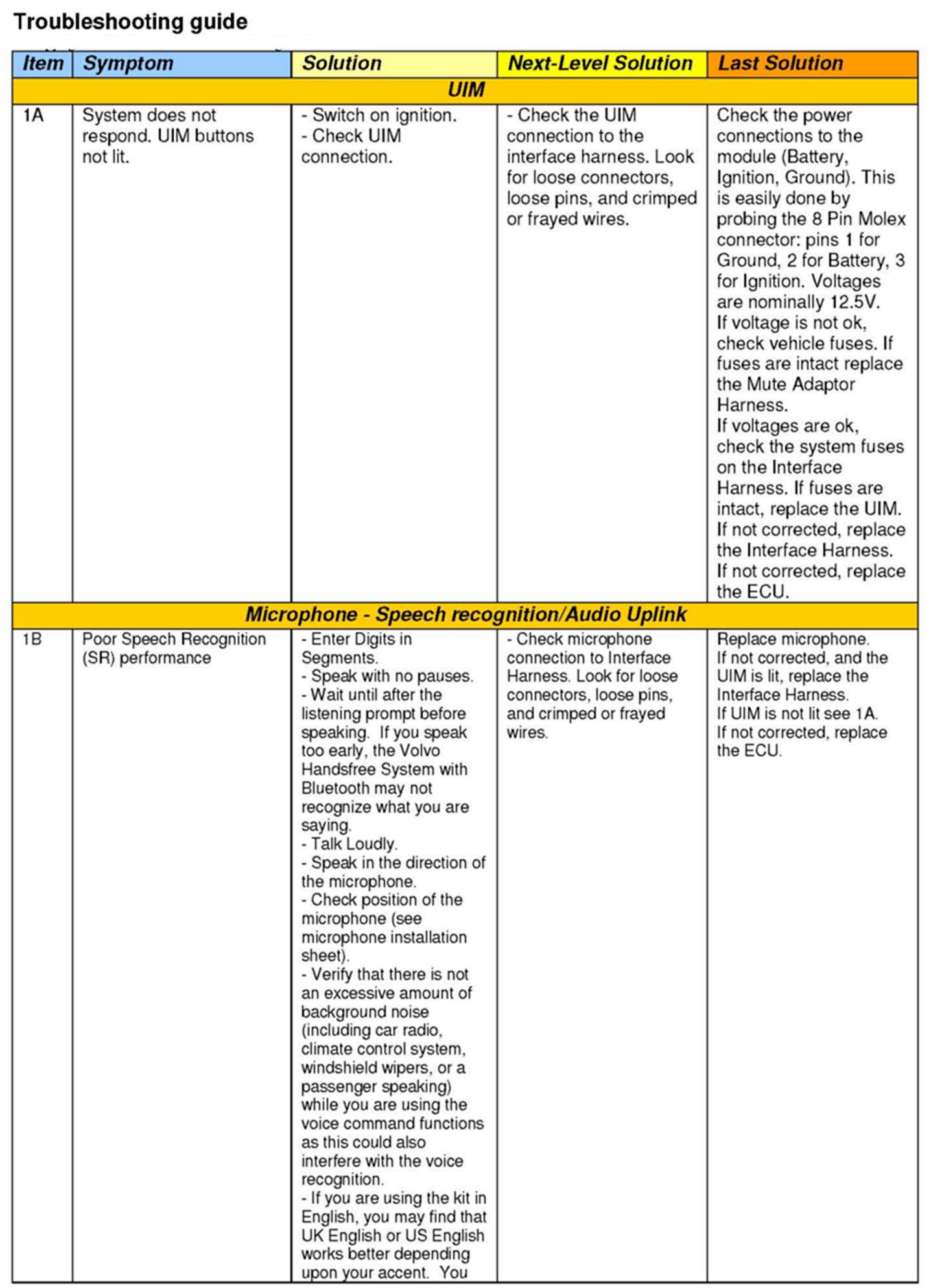

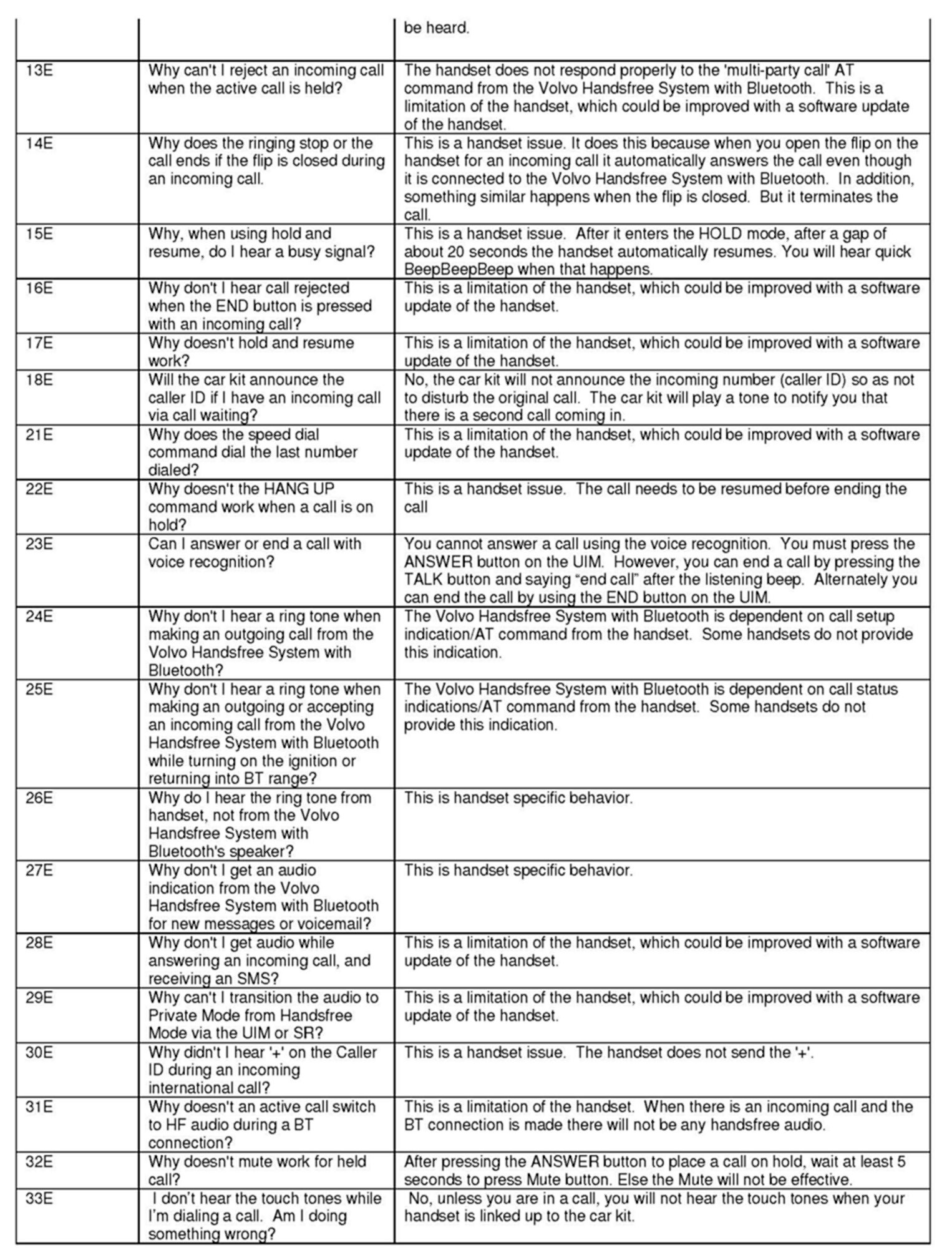

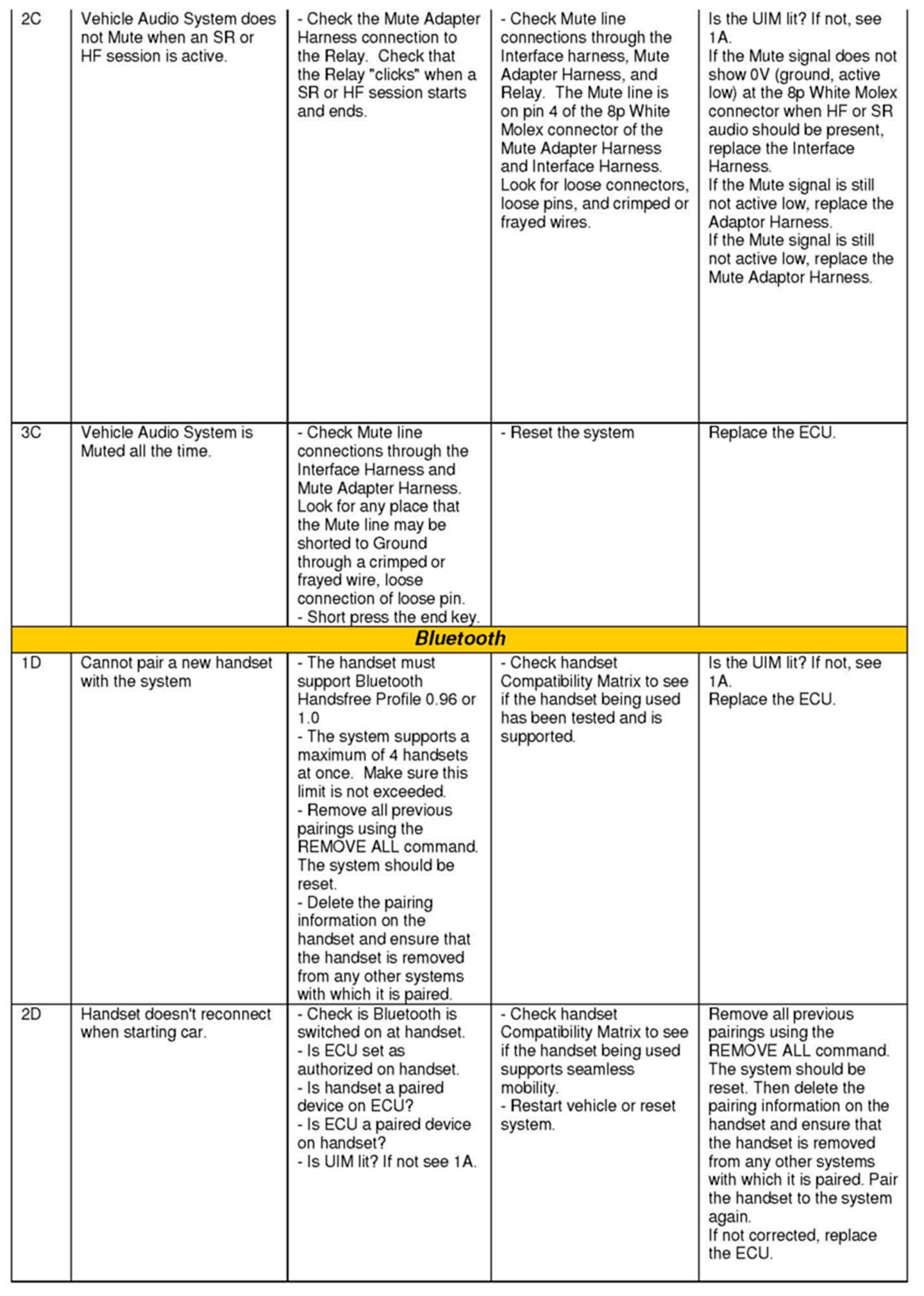

Fault tracing guide and FAQs Information regarding the Bluetooth kit
Please go to; VRC2 external links < Aftersales Business Volvo Hands Free Compatibility Matrix > for links to the following information;
^ Phone compatibility matrix
^ Phone pairing procedures and examples
^ Volvo Handsfree with Bluetooth Brochure
^ Volvo Handsfree with Bluetooth training Overview

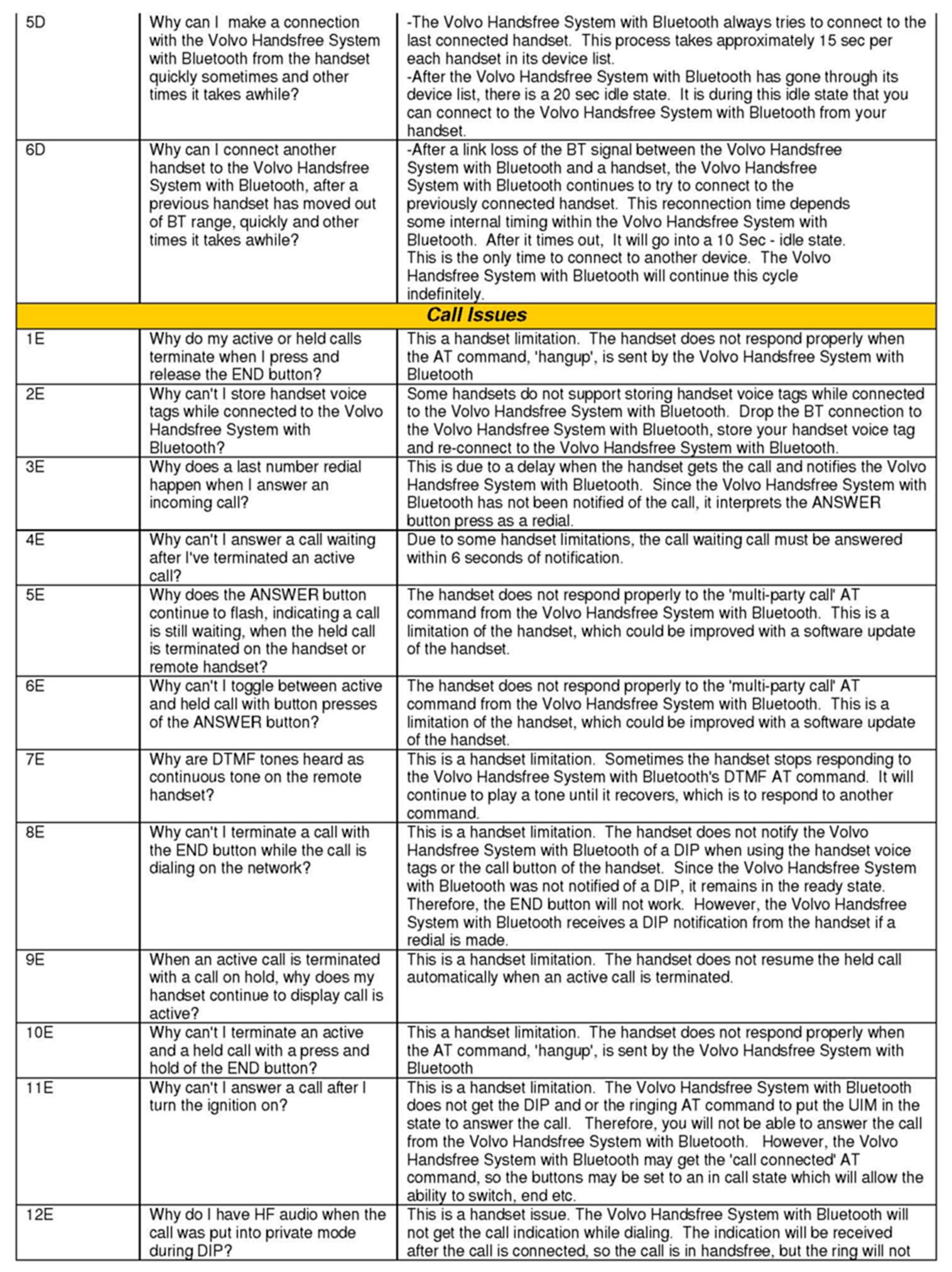

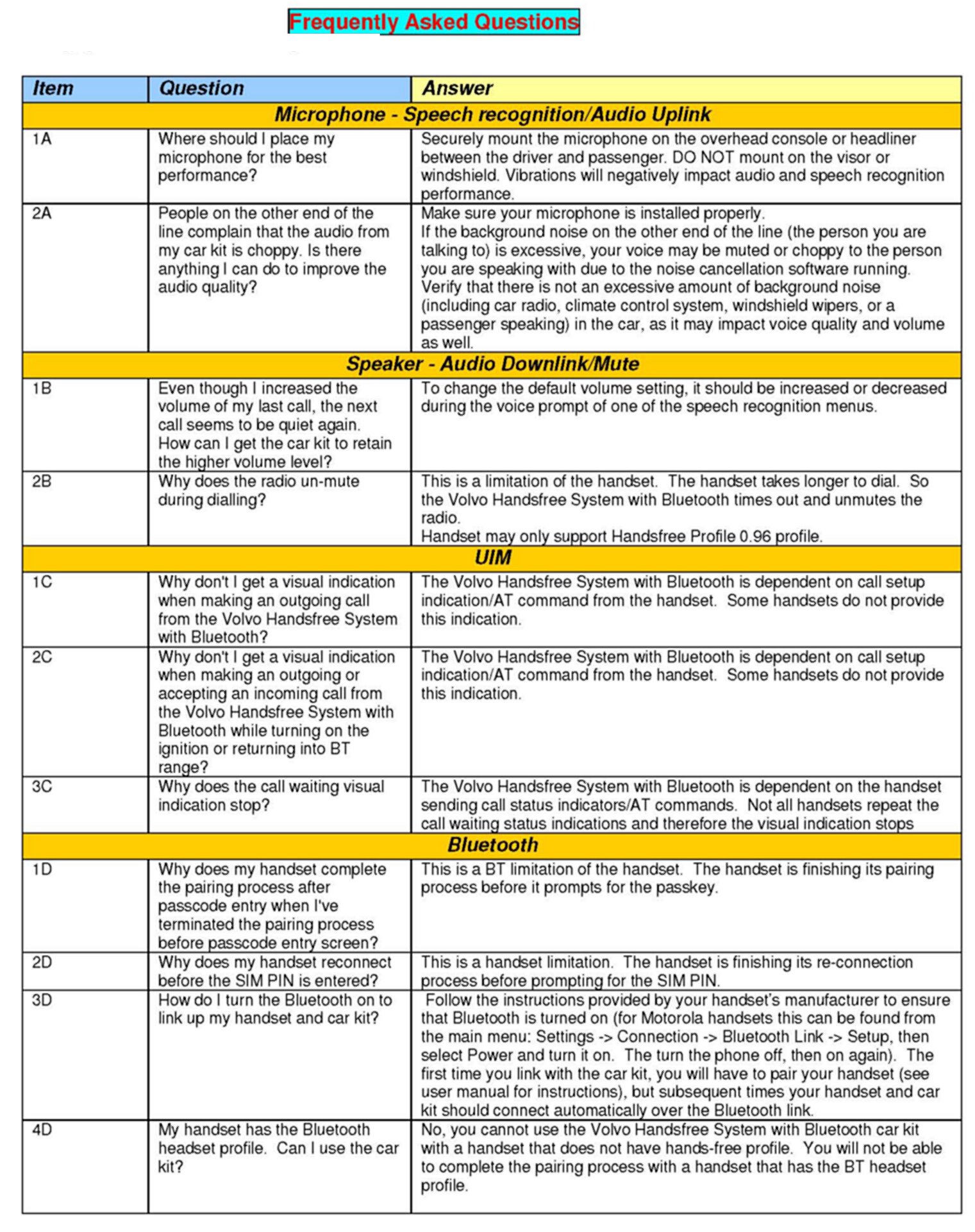

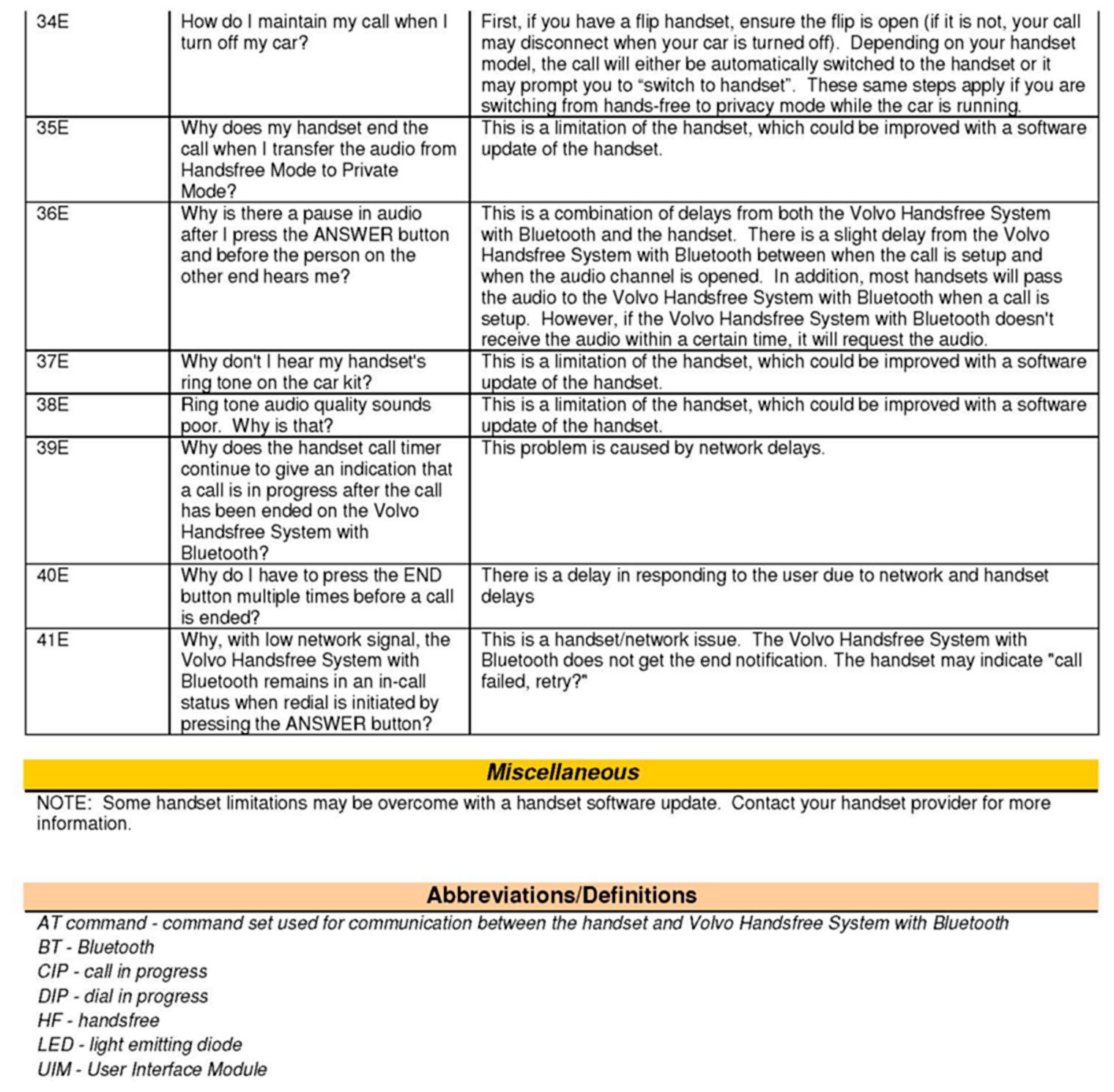

^ Frequently asked questions
^ Interactive users guide for the IHF1000
Questions regarding phone compatibility, set up, and Motorola(R) specific operational problems can be forwarded to the Motorola(R) technical assistance Hotline. 877-MOTO-2-GO (877-668-6246)
Installation questions on Genuine Volvo Handsfree Bluetooth should be forwarded to the Volvo Technical Hotline. Please have the installation instructions handy if you need assistance.

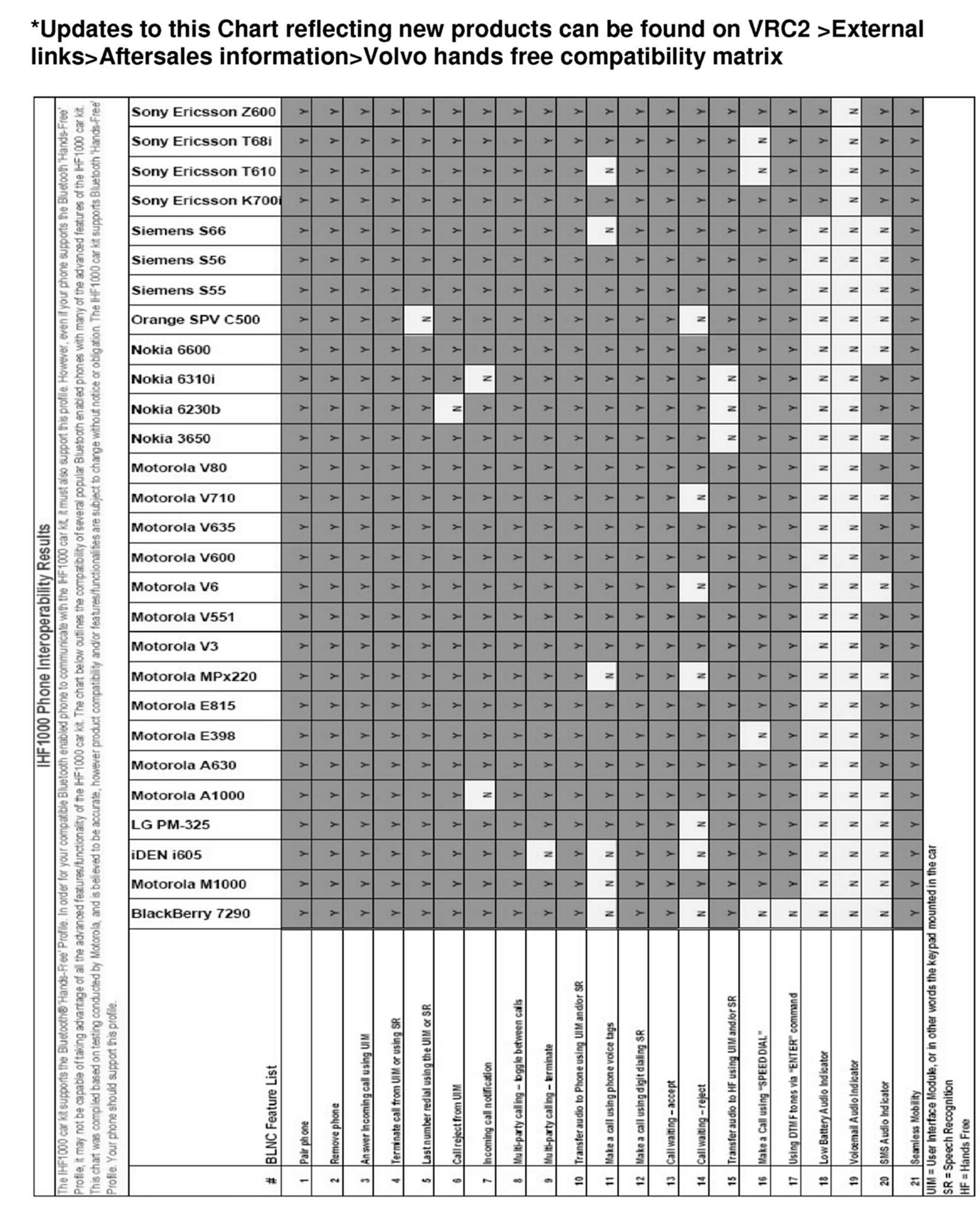

Above is a compatibility matrix chart as of 8/25/2005 * that will help you decide whether or not the customer's phone will work with the system
Application information;
The installation will consist two Part numbers, the base kit and the adapter harness.
The Base kit will include a Bluetooth Control unit, Control unit harness, a microphone and a controller module (UIM). The Adapter harness is specific to the vehicle and/or the audio system installed. Specific application info is below.
S40/V50
The Bluetooth hands free kit is only compatible with Integrated Audio Module (IAM) based systems (S40 from chassis no. 80924 and V50 from chassis no 78750). Cars built before the break points indicated are equipped with AFM systems, Bluetooth hands free cannot be installed in these vehicles.

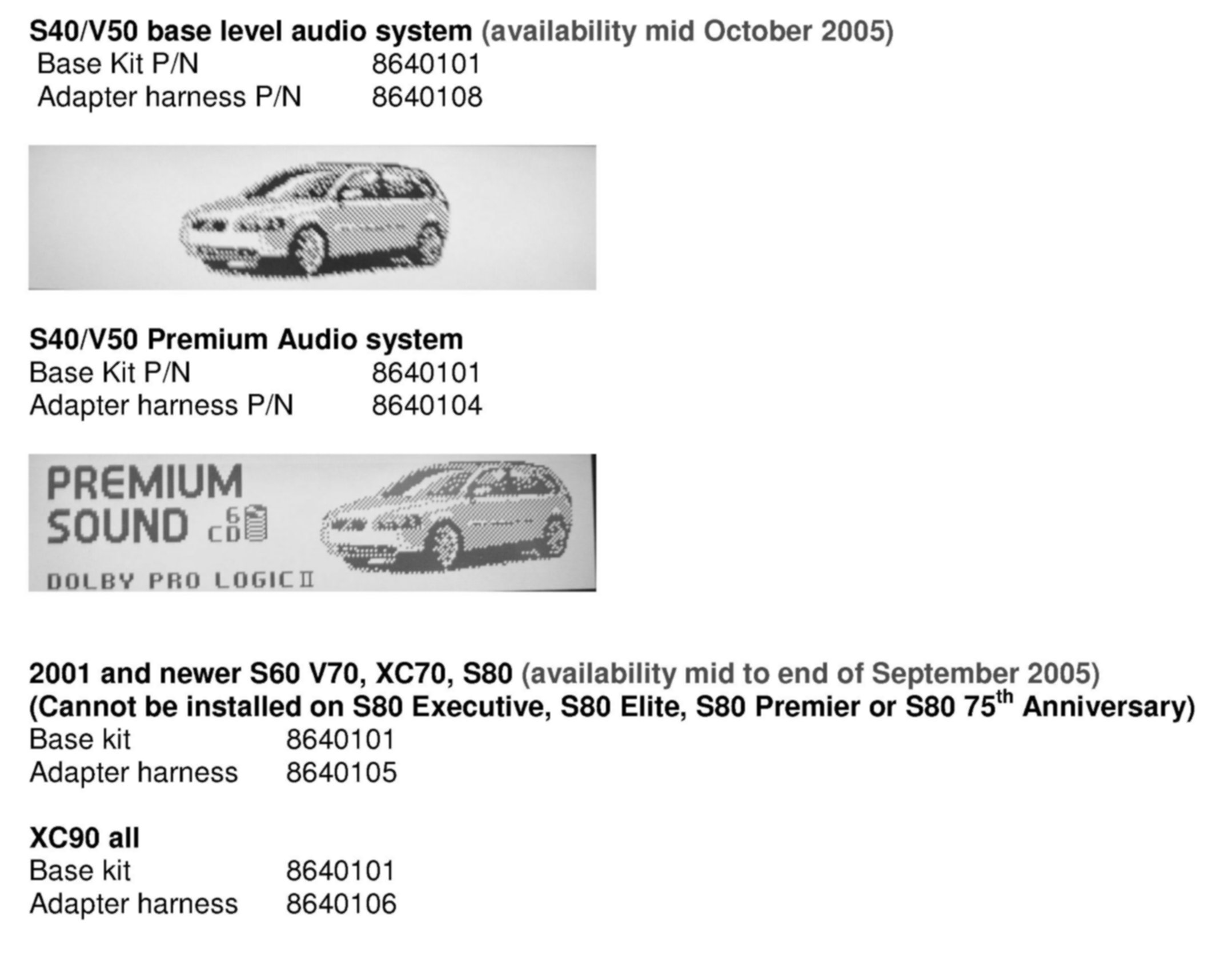

There are 2 adapter harnesses available depending on the level of the Audio system. The photographs of the radio display during "boot up" will help identify which level system you are working with.
