Suspension Control ( Automatic - Electronic ): Locations

Location of components

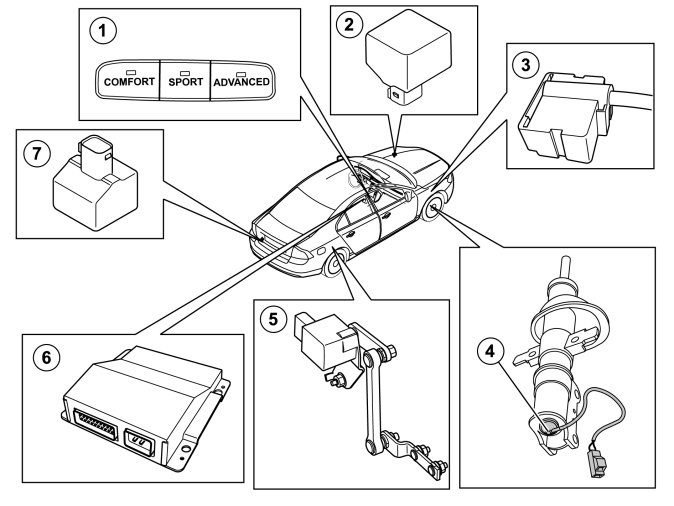

Location Of Components:

1. Switch
2. Acceleration sensor, body (x2), front
3. Acceleration sensor, suspension (x2), 1 at each front wheel
4. Damper solenoid (x4) - 1 at each wheel
5. Position sensor (x2) - 1 at each rear wheel
6. Suspension module (SUM)
7. Acceleration sensor, body (x1), rear
