Component Tightening Torque

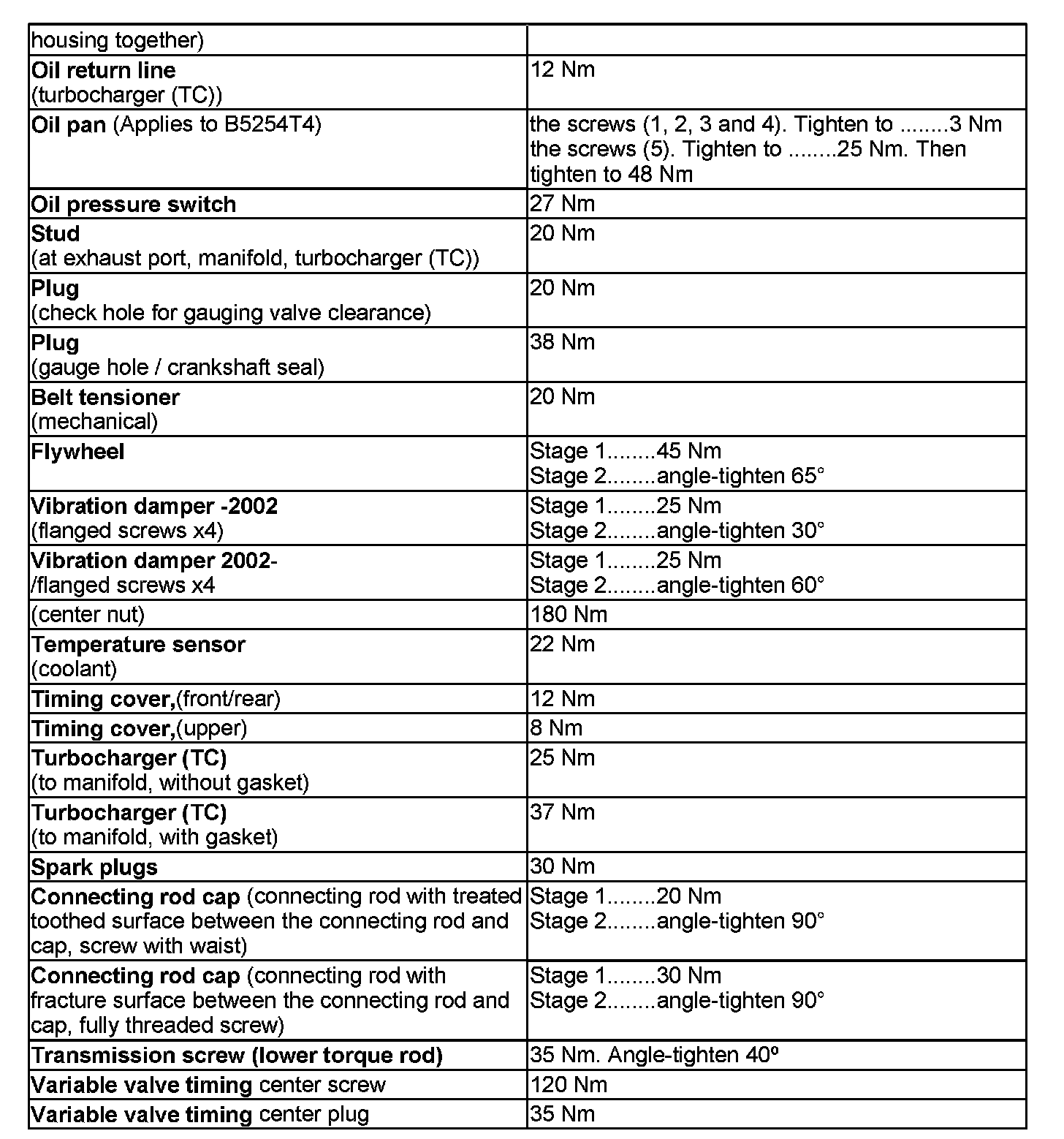

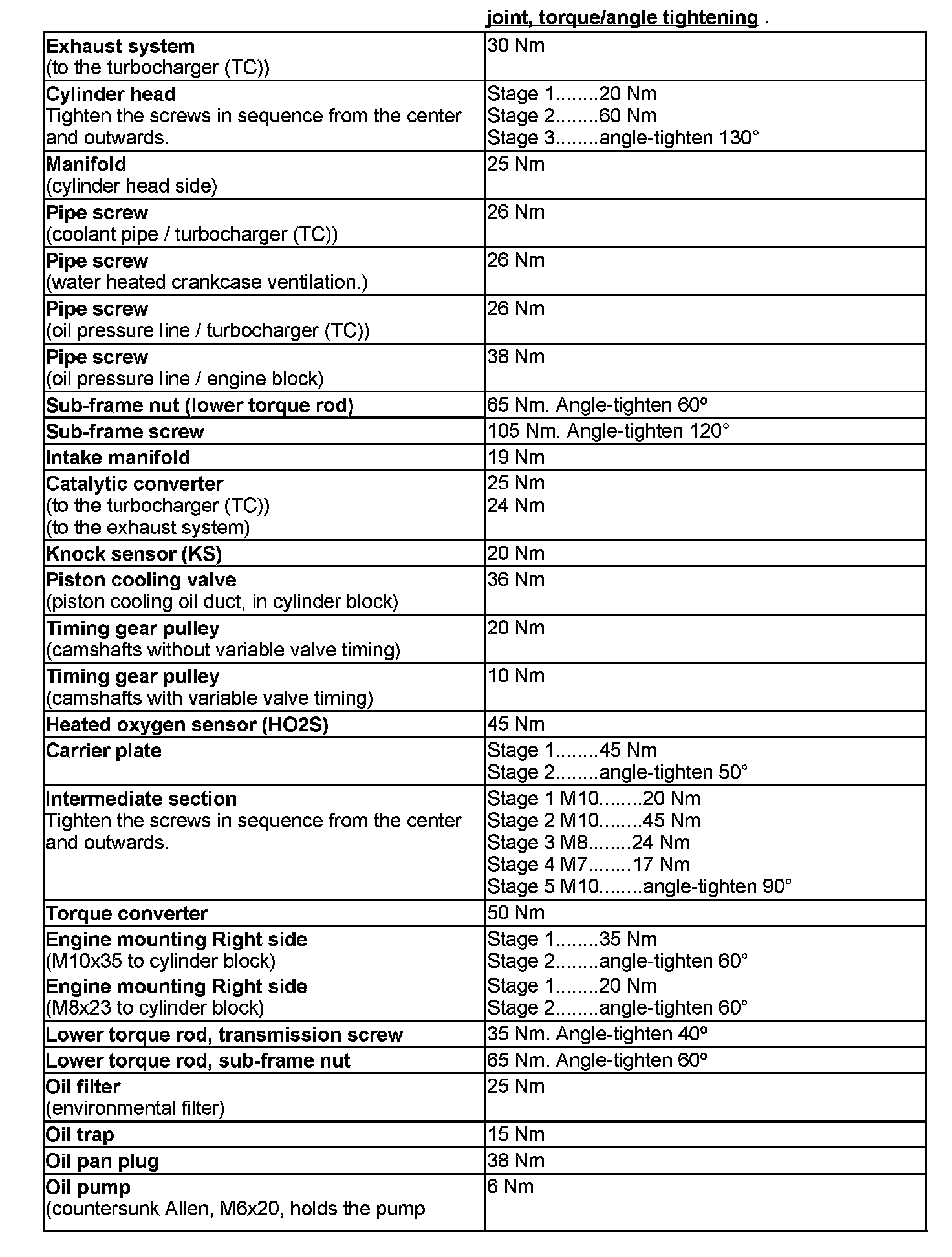

Summary of specific components and tightening torques

Note: Screws coated with locking fluid or sealant must be replaced with new when reinstalled.

Always use new screws and nuts when angle tightening. Any exceptions to this rule will be indicated in the method.

Angle-tightening in tight spaces. See Screwed joint, torque/angle tightening.
