Crankshaft Main Bearing

Carrier Plate
Stage 1 45 Nm
Stage 2 angle-tighten 50°

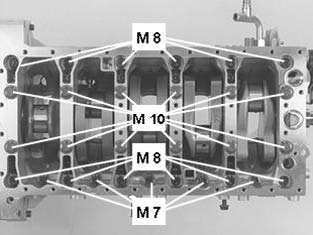

Intermediate Section
Tighten the screws in sequence from the center and outwards
Stage 1 M10 20 Nm
stage 2 M10 45 Nm
Stage 3 M8 24 Nm
stage 4 M7 17 Nm
Stage 5 M10 angle-tighten 90°
