Home >> Volvo >> 2004 >> S60R AWD L5-2.5L Turbo VIN 52 B5254T4 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Rain Sensor >> Diagrams >> Electrical Diagrams

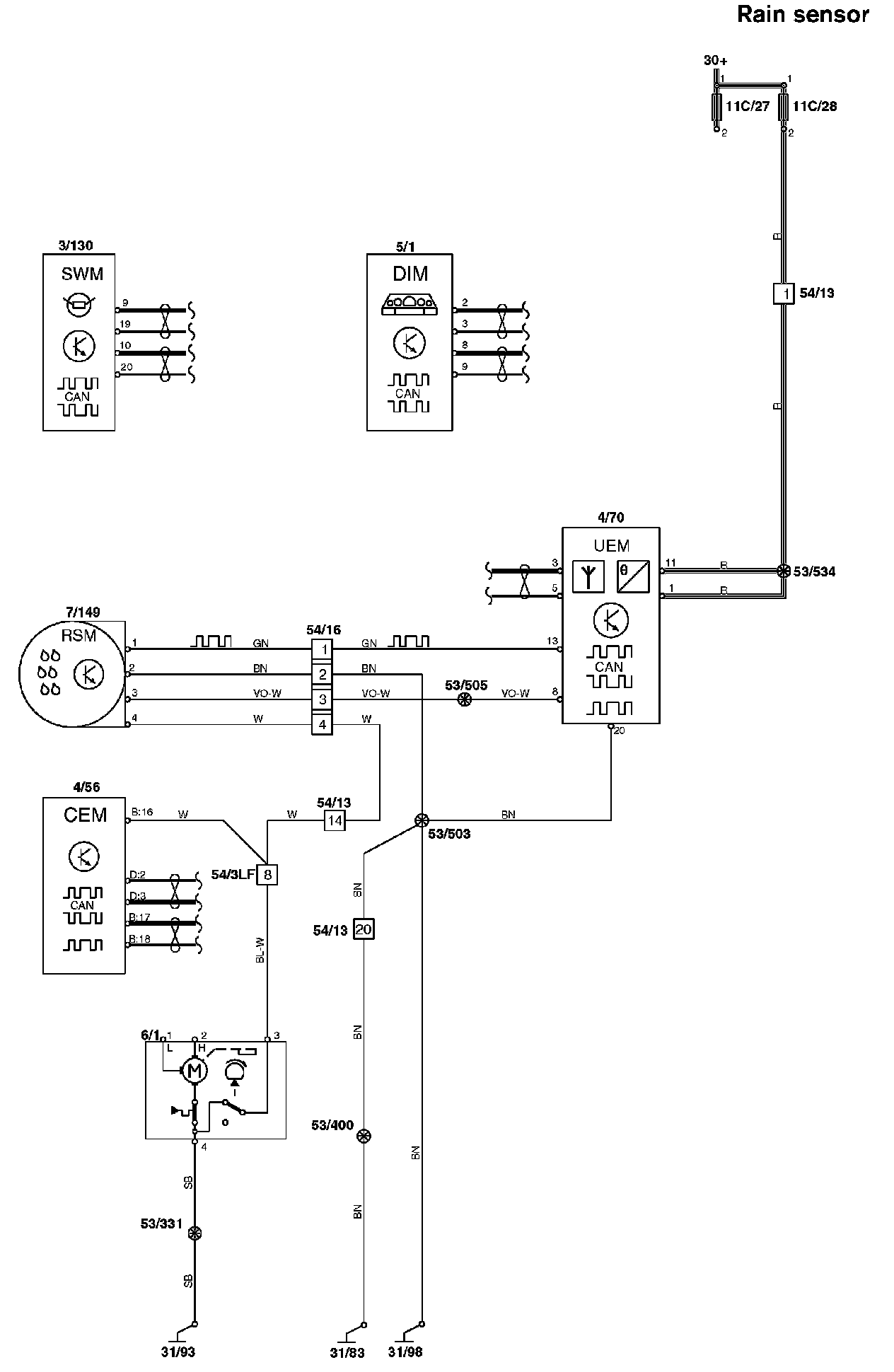

Electrical Diagrams



Rain Sensor

Rain Sensor:






Diagram Legend: Diagram Legend

Wire Color Code and Other Abbreviations: Wire Color Code and Other Abbreviations
