Backup Lamp Switch: Service and Repair

Back-up lamp switch, replacing

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Preparatory work
Ignition off.
Remove the air cleaner (ACL) housing and the gear selector cables from the levers and the bracket on the gearbox. See Transmission cables, replacing. Service and Repair.

Note! Ensure that the mechanical cables do not crack or break.

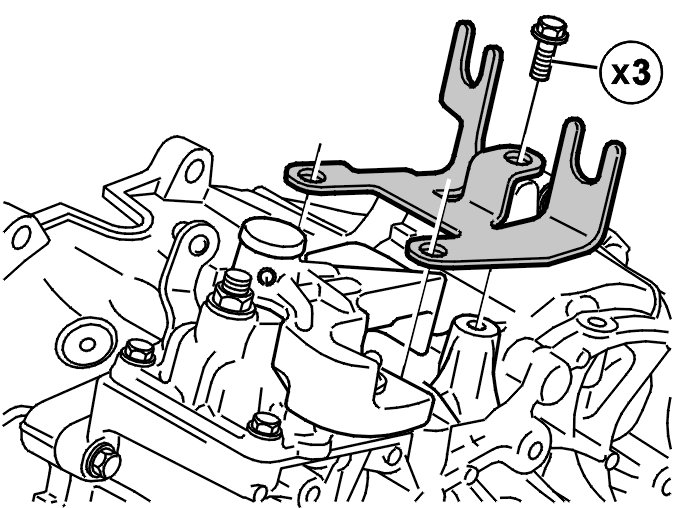

Removing the bracket for the gear selector cables




Remove the bracket from the gearbox.




Clean thoroughly around the connectors.

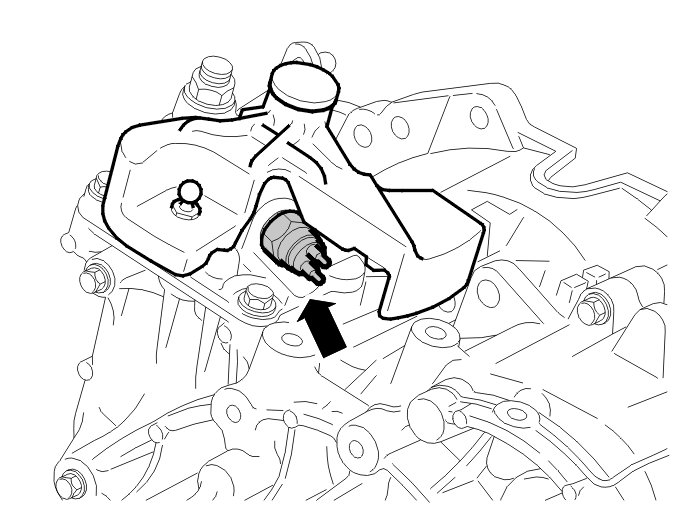

Remove the connector and the back-up lamp switch from the gearbox.

Installation

Installing reversing lamp switch
Install the back-up lamp switch. Tighten. See relevant specifications.

Installing the leads




Install the cables in the connector with the opening for the primary lock facing up as illustrated. Press in the secondary lock.

Joining cables
Splice the new connector with cables to the existing wiring. See: Joining the cables Joining the Cables

Installing connectors




Install the connector with cables on the back-up lamp switch.
Install a tie-strap as illustrated so that the cable harness is not in contact with the gear selector cable.




Install the bracket on the gearbox using the 3 M8 screws. Tighten.

Installing the gear selector cables
Install the air cleaner (ACL) housing and the gear selector cables. See Transmission cables, replacing, B5244T5, M66 Service and Repair.
