Cabin Temperature Sensor / Switch: Testing and Inspection



Trouble-Shooting Information







Condition

- No diagnostic trouble codes are stored
- Fault is permanent

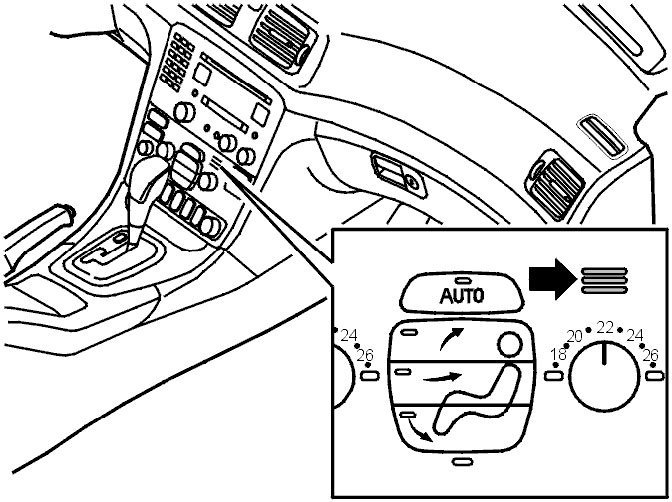

NOTE: If the interior temperature sensor air inlet is covered, the climate control module (CCM) will not receive the correct interior temperature value so the temperature cannot be correctly regulated. These types of error are not included in trouble-shooting.

Possible source

- Blocked blower motor
- Defective measuring instrument or interior temperature sensor.
