Keypad Unit, Steering Wheel, Replacing

Keypad unit, steering wheel, replacing

Removing the keypad




Remove the driver's airbag module. See Airbag driver and passenger (SRS), replacing Service and Repair.
Remove screw (1).
Disconnect the ground lead.
Disconnect the green connector (2).
Remove the three screws (3). Remove the plastic bracket.

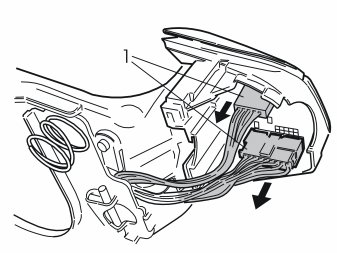

Disconnect the connectors (1) for the keypad. Press the catches in.




Remove the screw (1) from keypad.
Press in the catch (2) and pull the keypad from the socket.




Remove the screw (1) from keypad.
Press in the catch (2) and pull the keypad from the socket.

Installing keypad

Install:
- the keypad
- the screw
- the connectors for the keypad
- the three screws
- the green connector
- the ground lead and screw
- the driver's airbag module. See Airbag driver and passenger (SRS), replacing Service and Repair.
