SRS - Electrical Diagram Correction

Cars
S60/S60R/S80
2004

Section:
3

Group:
39

No.:
0044

Year:
04

Month:
6

Reference:

TP 3970032, Department (39) Wiring diagram, S60/S60R/S80 2004

Wiring diagram, correction

Background

The wiring diagram of the Supplemental Restraint System (SRS) is corrected for the above publication. For other systems, see the TP number above.

Please note in relevant information that there is a service bulletin for the aforementioned car models.

System

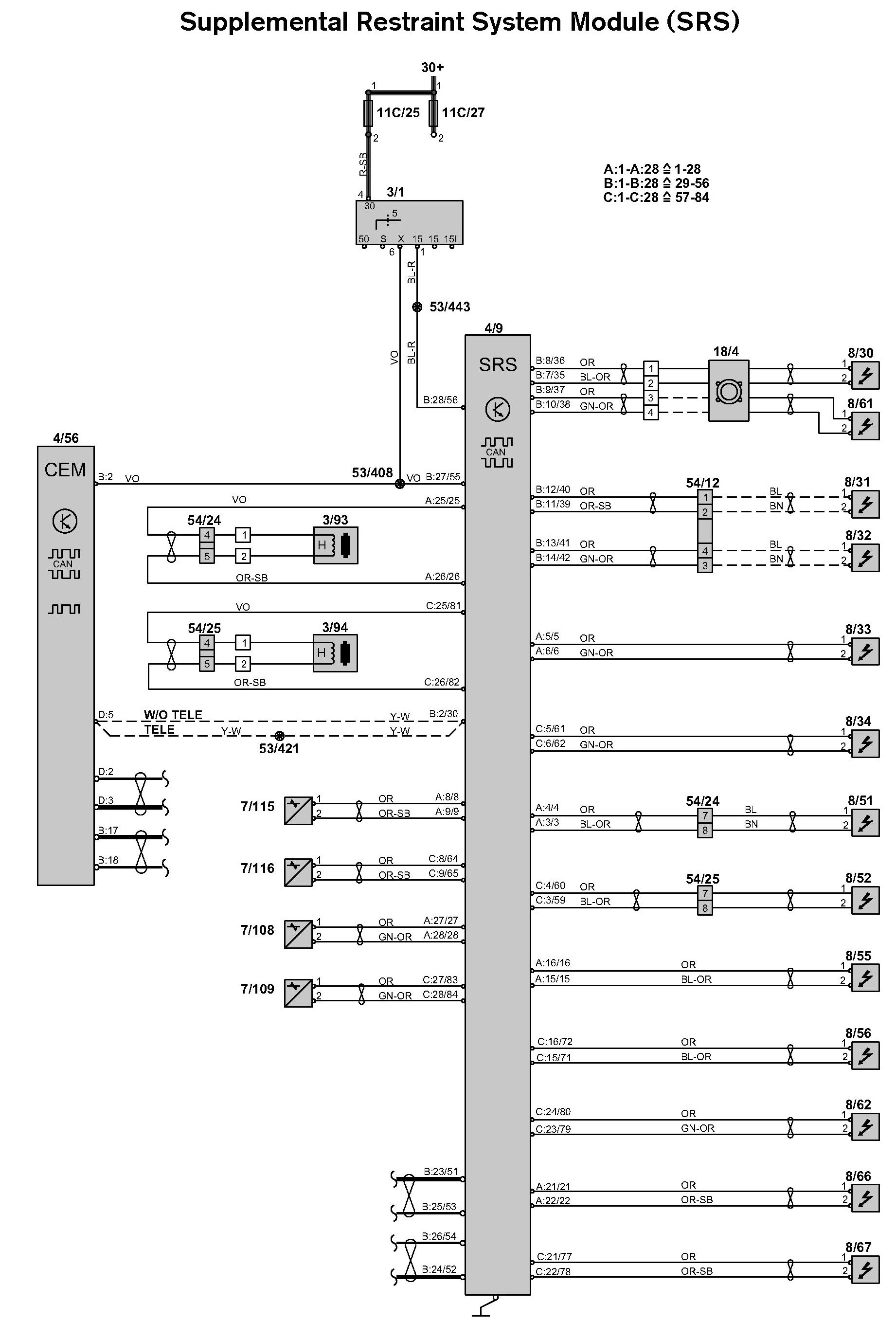

Supplemental Restraint System Module (SRS) 560/560R/580

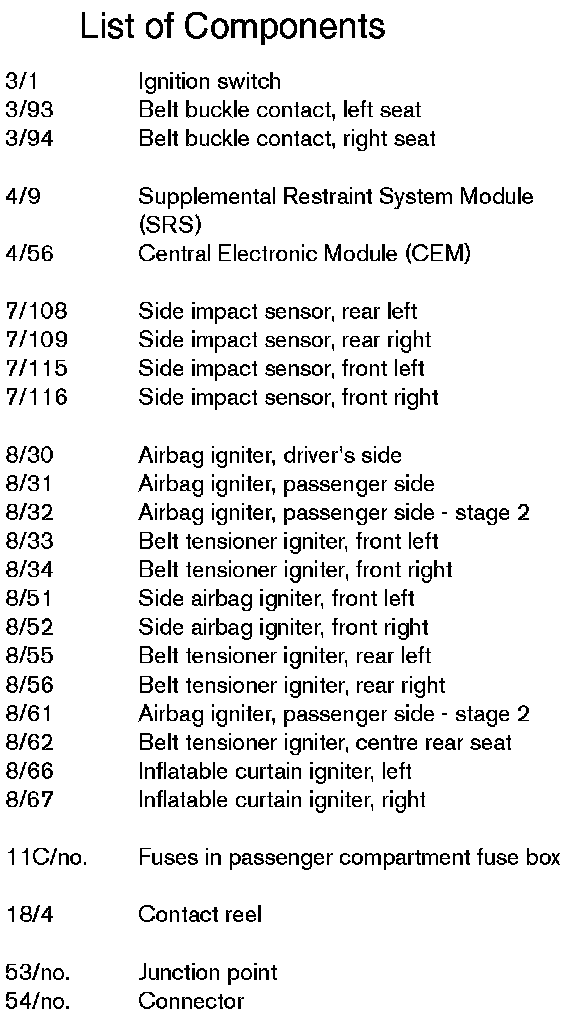

List of components
