Protective Cover

Protective cover









INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The front page gives the date of this edition and the edition it replaces
- The second page shows the tools needed for the installation and the contents of the installation kit
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section
- Cut out the text page in order to follow the illustrations and text at the same time.

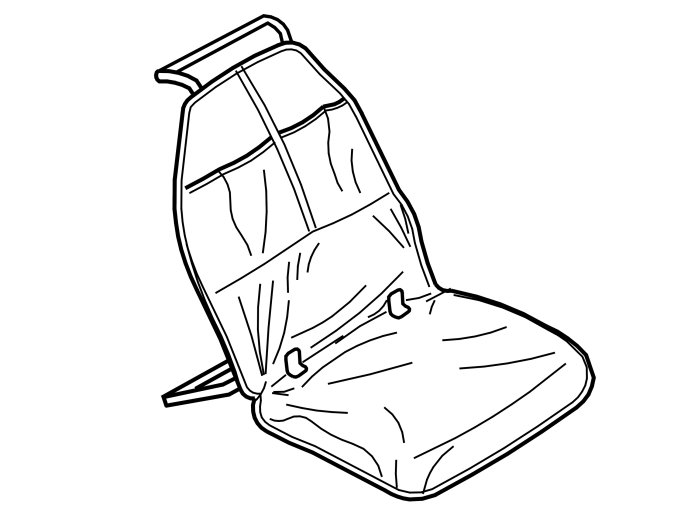

Protective cover

Rear facing child seat in the front seat

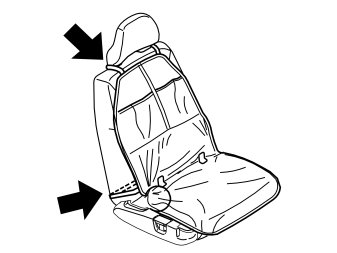

The protective cover can be installed on the front passenger seat when using the rear facing child seat.
- Thread the elastic straps around the head rest and the backrest of the front seat.





Passenger seat with Isofix
- Position the protective cover according to the previous method

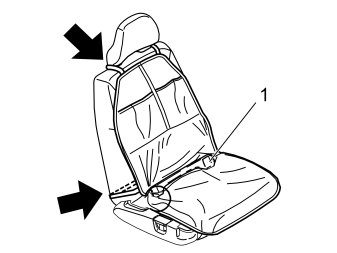

- The Isofix guide (1) is inserted through the cut-out in the protective cover and secured in the Isofix mounting.

Rear facing child seat on the outer rear seat

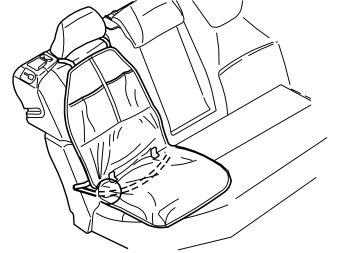

The protective cover can be installed on the rear seat when using the rear facing child seat in the outermost position on the rear seat.
- Thread the top elastic strap around the head restraint.





Outermost position of the rear seat with Isofix
- Position the protective cover according to the previous method
- The Isofix guide (1) is inserted through the cut-out in the protective cover and secured in the Isofix mounting.

Integrated booster cushion / loose booster cushion in the outermost position in the rear seat

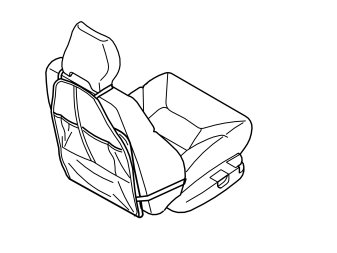

The protective cover can be installed on the reverse of the front seat when using the integrated child cushion / booster cushion in the outermost position on the rear seat.

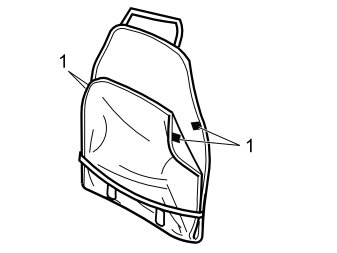

- Fold the protective cover together in the centre. Secure the ends to each other using the Velcro strips (1).




- Thread the elastic straps around the backrest and the head restraint.
