ISOFIX, Rear

Isofix, rear






















Isofix, rear

Note! It is recommended that an authorised Volvo workshop installs this accessory.

Note! The instructions for the S80 only apply to models from week 20 year 2000 inclusive.

Applies to the V70 (00-)
- Fold up the rear seat cushion.

Applies to S60 and S80
- Detach and lift out the rear seat cushion.

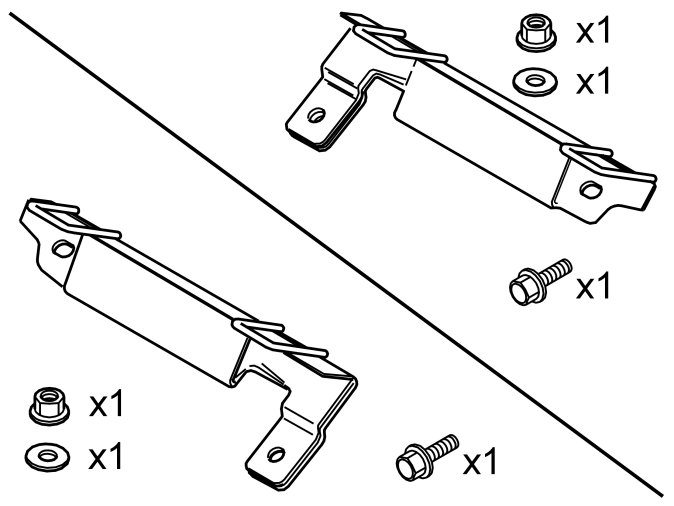

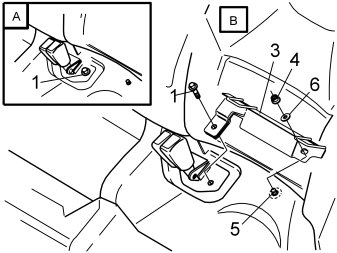

Illustration A applies to the installation of ISOFIX on the side where the single buckle for the car seat belt is positioned





Illustration B applies to the installation of ISOFIX on the side where the double buckle for the car seat belt is positioned





Note! The geometry of the seat belt in the S80 is reversed compared with the V70 (00-). The seat belt double buckle is positioned on the opposite side.

The operation is carried out on both sides

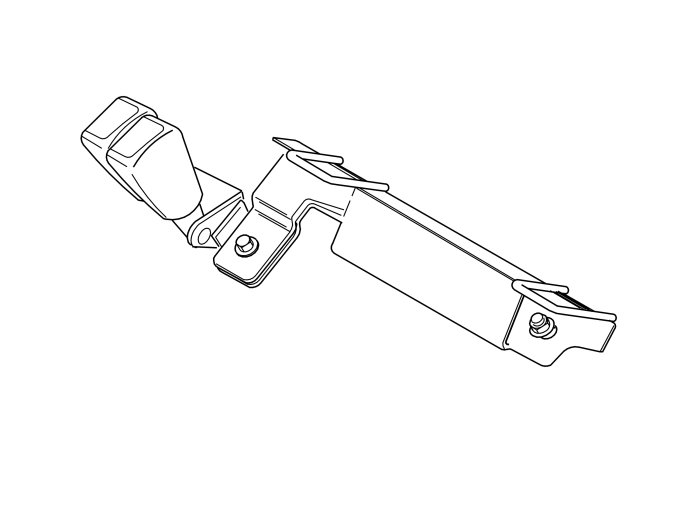

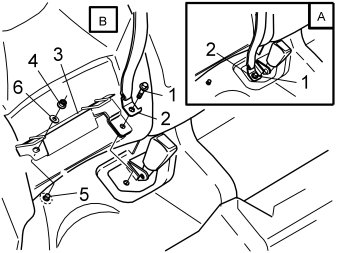

- Remove the screw (1). At the single buckle - remove the end mounting (2) from the centre seat belt
- Replace the screw (1) with the new screw from the kit
- Remove the perforated section of the insulation from under the ISOFIX bracket (3).This is to expose the existing stud (5)
- Position the Isofix bracket (3) as illustrated
- Install the screw (1). At the single buckle - also install the end mounting (2) for the centre seat belt
- Install the nut (4) and washer (6) from the kit
- Tighten the screw (1). Tighten to 40 Nm (30 ft-lb). Then tighten the nut (4). Tighten to 30 Nm (22 ft.lb).

Applies to the V70 (00-)
- Fold the rear seat cushion back into place.

Applies to S60 and S80
- Reinstall the rear seat cushion.
