Child Seat, ISOFIX Mounting, Rear

Child seat, Isofix mounting, rear


























Isofix, rear

Note! It is recommended that an authorized Volvo workshop carries out the installation of this accessory.

Note! For the S80, the installation instruction only applies to cars from and including week 20, year 2000.

Applies to the V70 (00-)
- Fold up the rear seat cushion.

Applies to the S60 and S80
- Detach and lift out the rear seat cushion.

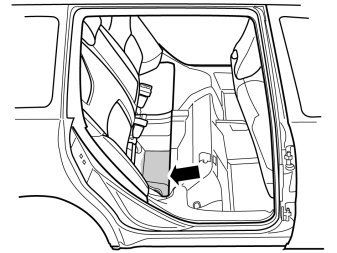

- Fold the insulation mat on the right-hand side to one side.

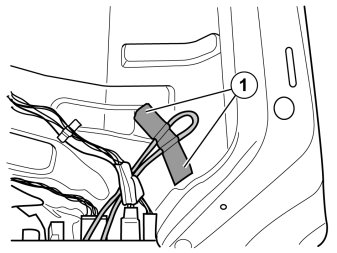

- Tape the insulation mat (1) as illustrated.

Image A applies to the installation of ISOFIX on the side where the seat belt's single buckle is located.





Image B applies to the installation of ISOFIX on the side of the car where the seat belt's double buckle is located.





Note! The S80 has the opposite seat belt geometry to the V70 (00-), i.e. the seat belt's double buckle is located on the opposite side.

Carry out on both sides
- Remove the screw (1). For the single buckle - remove the middle seat belt's end mounting (2).
- Replace the screw (1) with a new screw from the kit.
- Expose the existing stud (5) by removing the perforated part of the insulation under the ISOFIX bracket (3).
- Position the ISOFIX bracket (3) as illustrated.
- Install the screw (1). For the single buckle - together with the middle seat belt's end mounting (2).
- Install nut (4) and washer (6), from the kit.
- Tighten the screw (1) to 40 Nm (30 lbf.ft.) and then tighten nut (4) to 30 Nm (22 lbf.ft.).

Applies to the V70 (00-)
- Fold the rear seat cushion back into place.

Applies to the S60 and S80
- Reinstall the rear seat cushion.
