Child Seat, ISOFIX Mounting Front

Child seat, ISOFIX mounting front






















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The front page gives the date of this edition and the edition it replaces

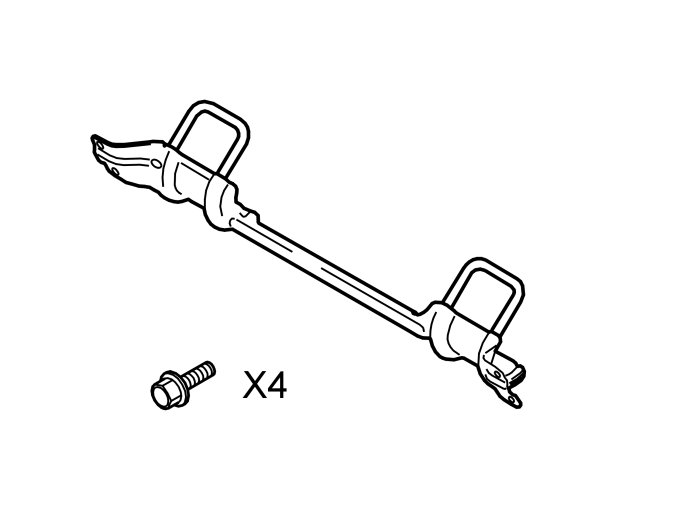

- The second page shows the tools needed for the installation and the contents of the installation kit
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section
- Cut out the text page in order to follow the illustrations and text at the same time.






Child seat, ISOFIX mounting front

Warning! Never place the child seat on the front passenger seat if the car is equipped with activated SRS (Airbag) on the passenger side.If you have difficulties installing a child safety product contact the manufacturer for clearer installation instructions.

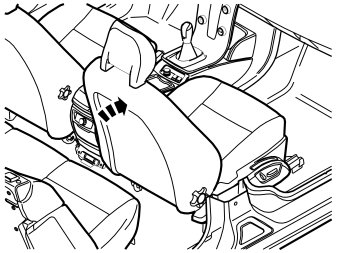

- Fold the backrest forward on the front passenger side.

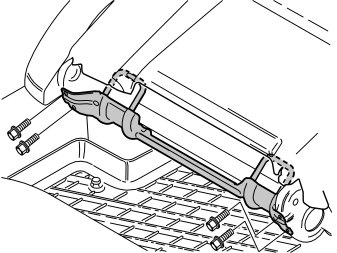

- Install the ISOFIX attachment to the SIPS tube with the four screws from the kit. Tighten the screws to 10 Nm (7.5 lbf.ft.)
- Reset the backrest.
