Electrical Diagrams

SRS Supplemental Restraint System

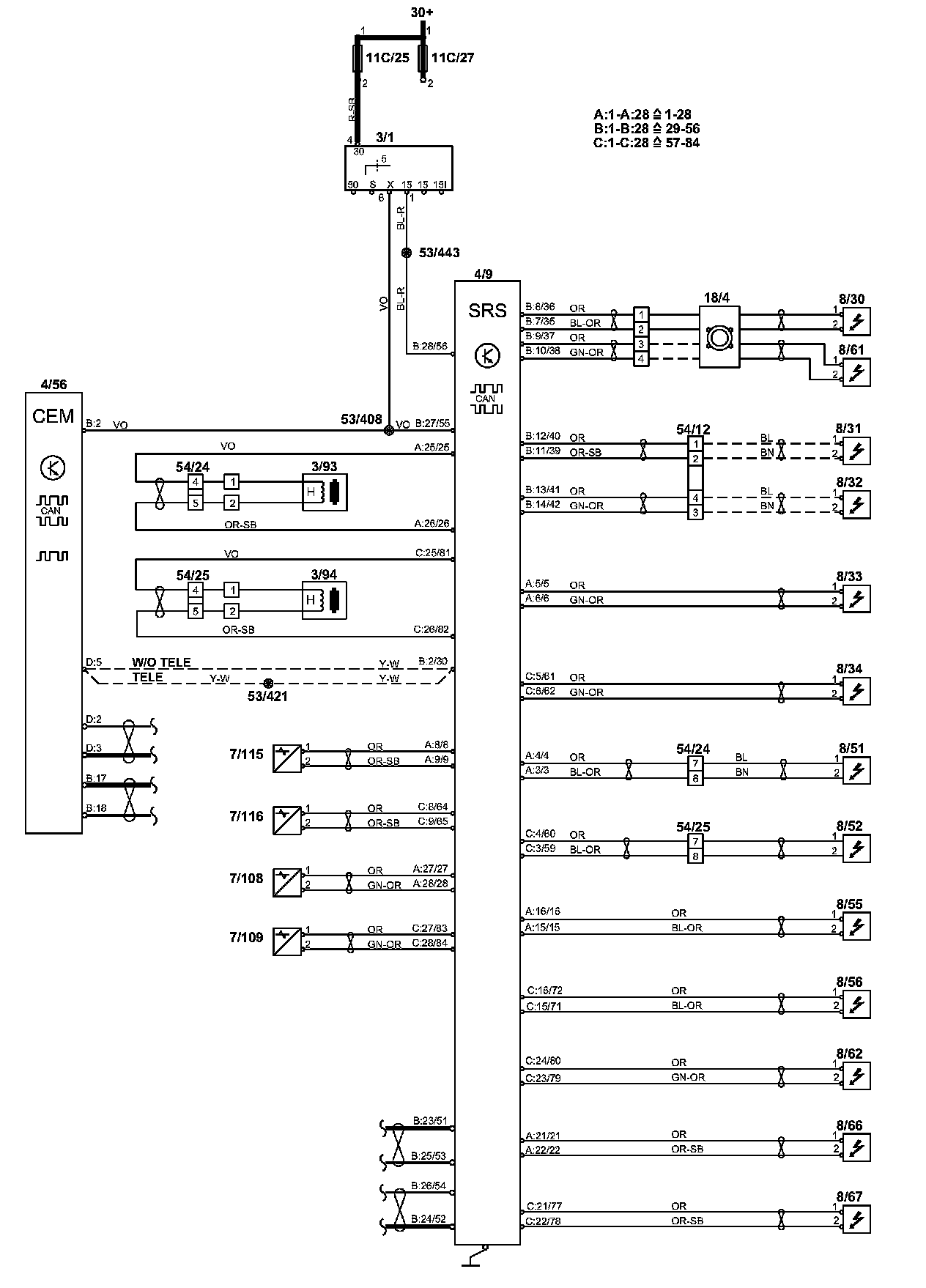

Supplemental Restraint System Module (SRS):

Diagram Legend: Diagram Legend

Wire Color Code and Other Abbreviations: Wire Color Code and Other Abbreviations


NOTE: This article contains corrected data processed from TSB# 3390044.
