Suspension - Rear Shock Noise On Small Bumps
NO: 76-04DATE: 2-9-2004
MODEL: S60 R & V70 R
M. YEAR: 2004
CHASSIS: 285 349395-381121
384 315516-350413
SUBJECT: Noise from Rear Shocks R - Cars
THIS TNN SUPERCEDES THE PREVIOUS TNN 76-04 DATED 1-22-04 PLEASE UPDATE YOUR FILES.
Corrected labor op information
DESCRIPTION:
A noise from the rear shock absorbers may occur when driving over small road disturbances.
SERVICE:
The SUM (Suspension Module) should be loaded with the new SW Quality Upgrade 30682143.
The SUM has to be calibrated after downloading this software. See VADIS for procedure:
Vehicle Communication/ Group 7/ Suspension Module/ Calibrating the system.
NOTE!
The Headlights need to be in the on position prior to calibration; If the headlights are not turned on during calibration they could be set out of position.

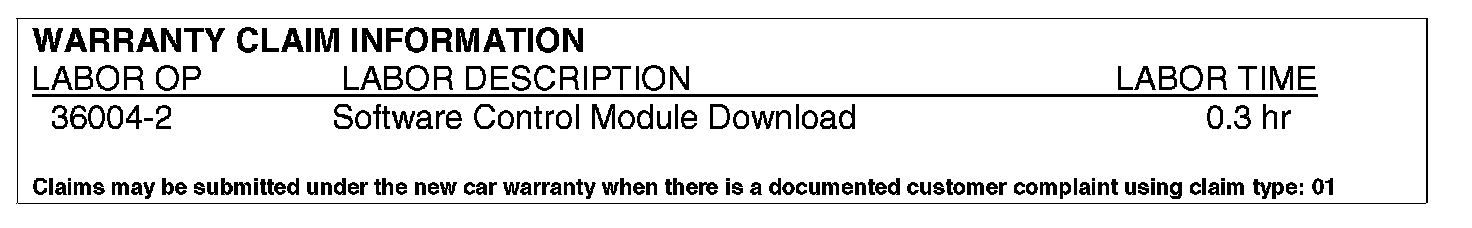

Warranty Claim Information
