ABS/TCS - BCM, DTC 0076 & BCM 0117 Set After SW Update

Title BCM, DTC 0076 & BCM 0117 (updated with VIDA method)

Ref No US16840.1.2 en-GB

Issuer -

Partner 3 US 7510 Volvo Cars North America

Func Group 5931

Func Desc control unit

Status Released

Status Date 02-17-2012

Issue Date 02-17-2012

Reference

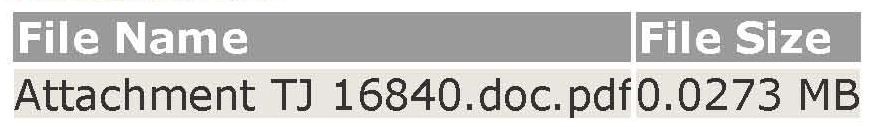

Attachment

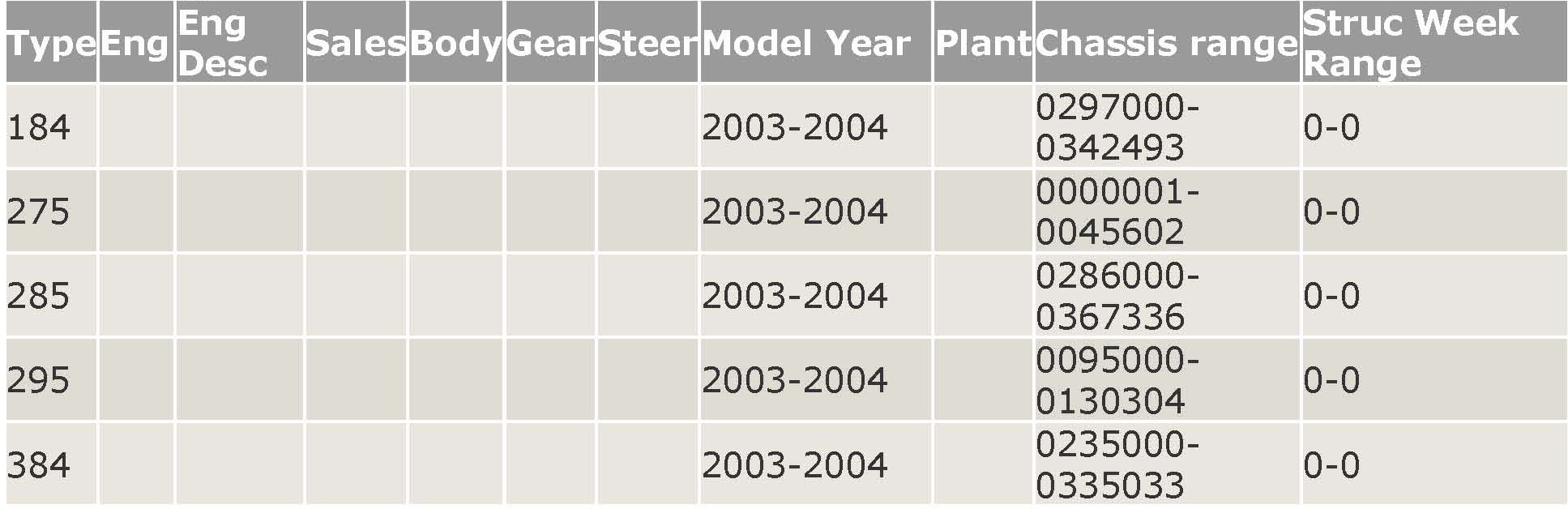

Vehicle Type

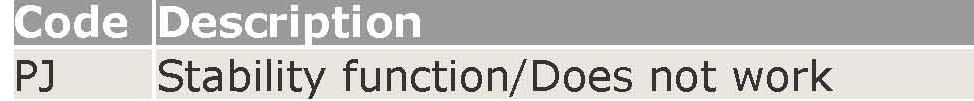

CSC Customer Symptom Codes

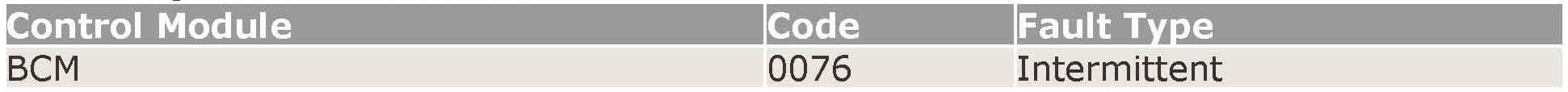

DTC Diagnostic Trouble Codes

Text
DESCRIPTION:

DSTC (Dynamic Stability Traction Control system) equipped vehicles within the chassis range listed below may set BCM (Brake Control Module) DTC 0076 after performing a BCM software download. On the XC9O DTC 0117 may also accompany BCM DTC 0076.

SERVICE:

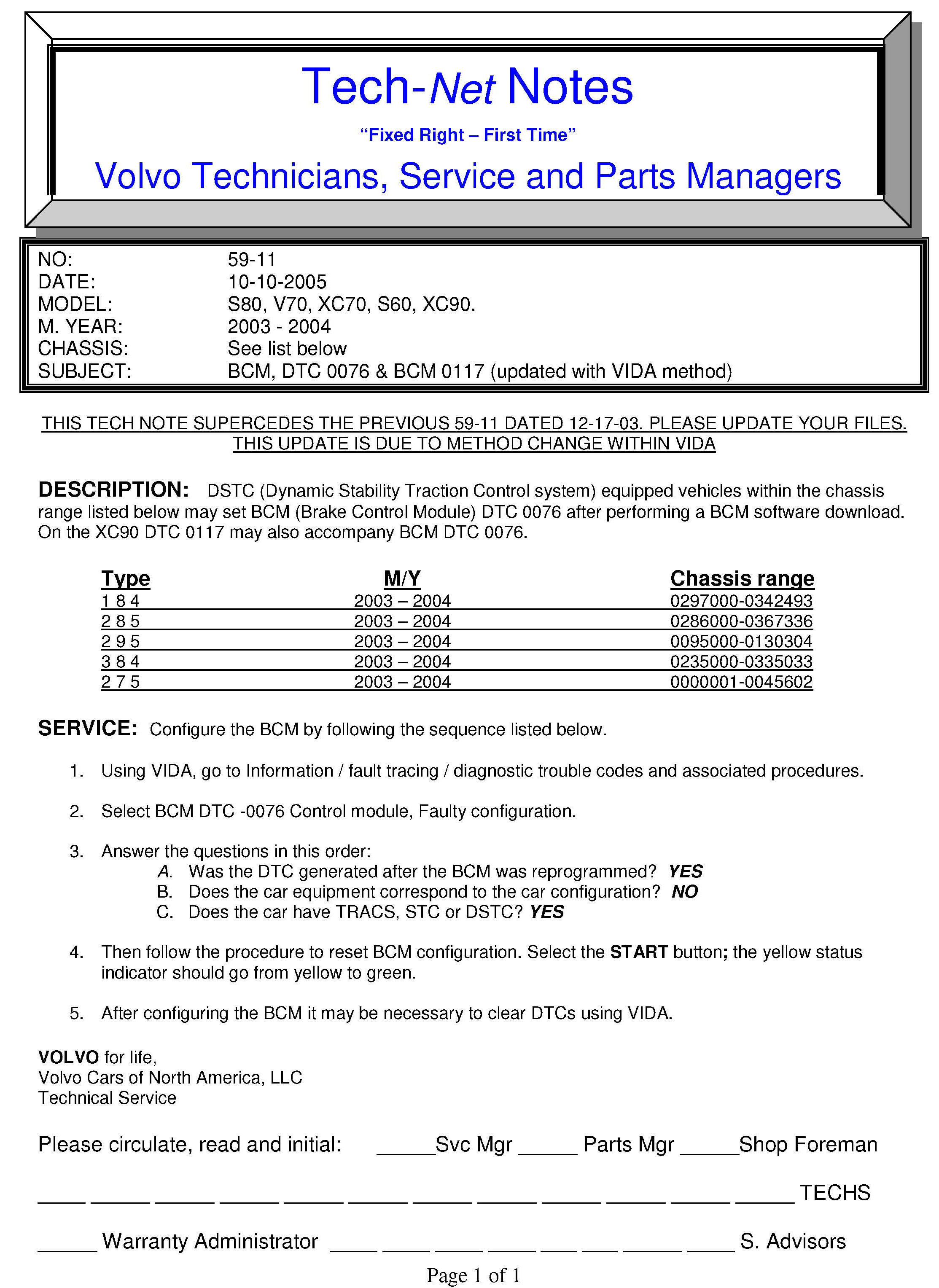

See attachment.
