AW55-50SN/AW50AWD

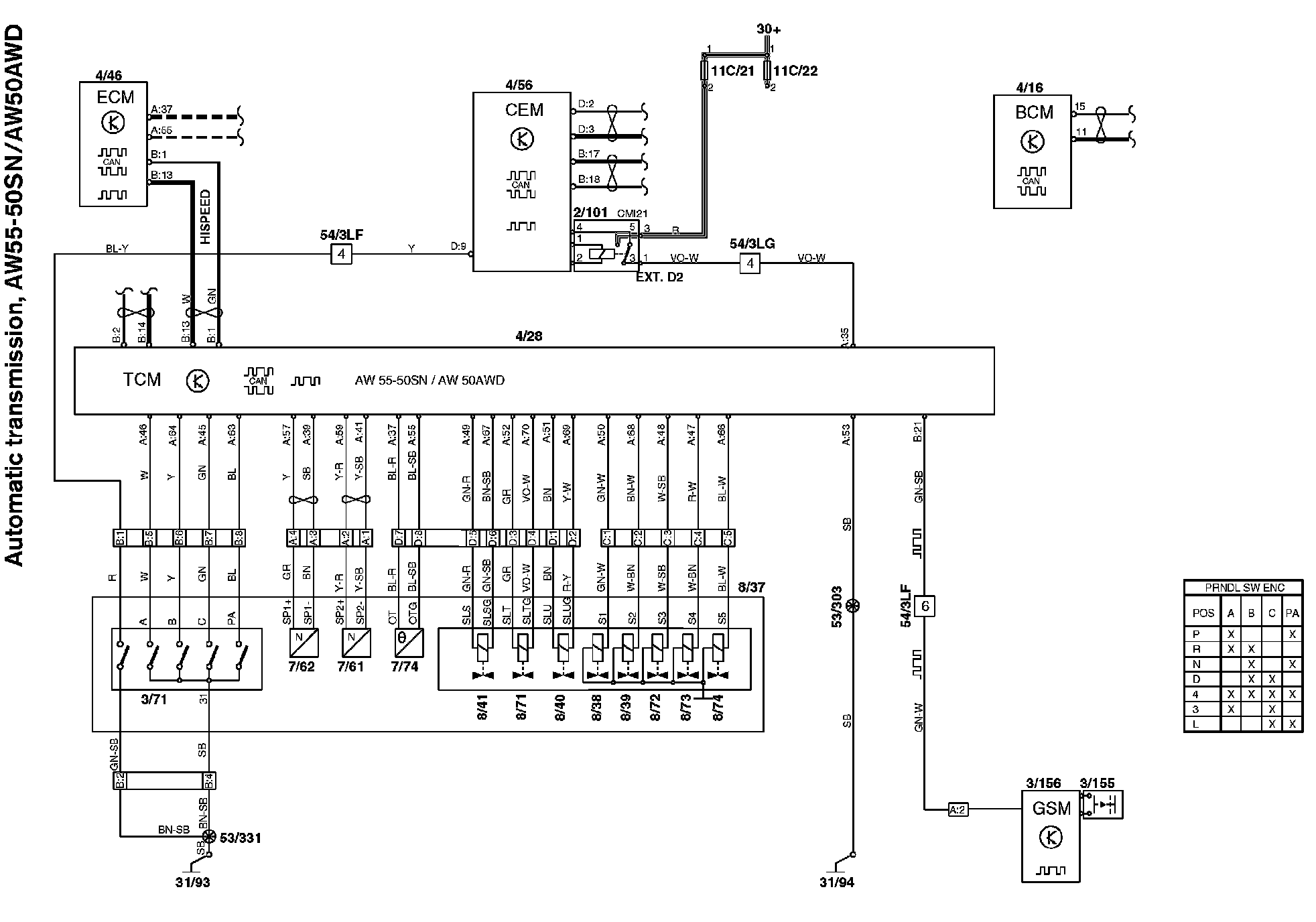

Automatic Transmission, AW55-50SN/AW50AWD

Automatic Transmission, AW55-50SN/AW50AWD:






Diagram Legend: Diagram Legend

Wire Color Code and Other Abbreviations: Wire Color Code and Other Abbreviations
