11C/no. Fuses In Passenger Compartment

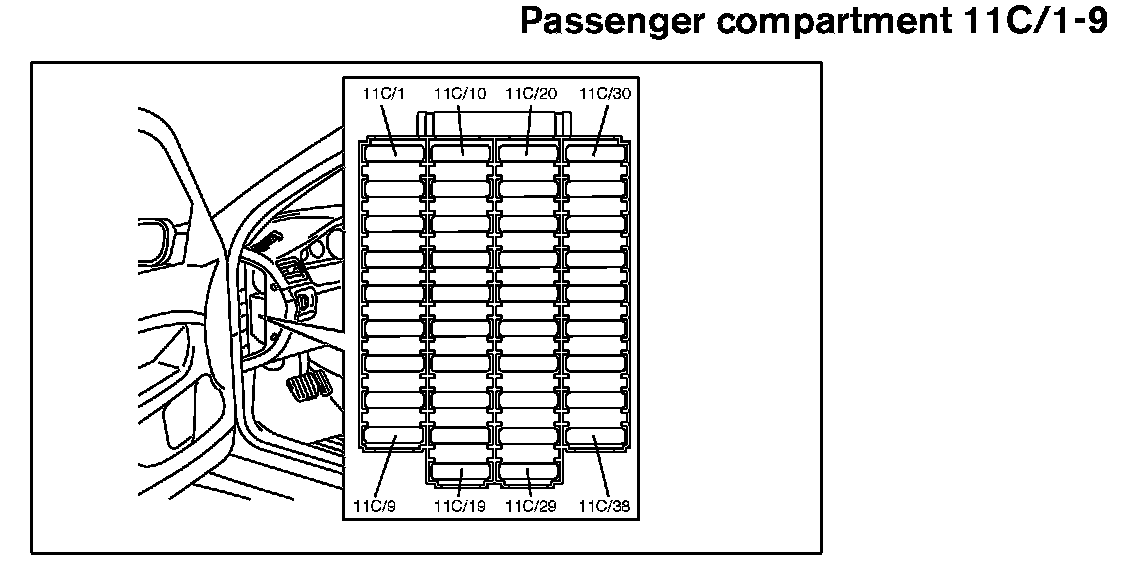

Fuses In The Passenger Compartment:

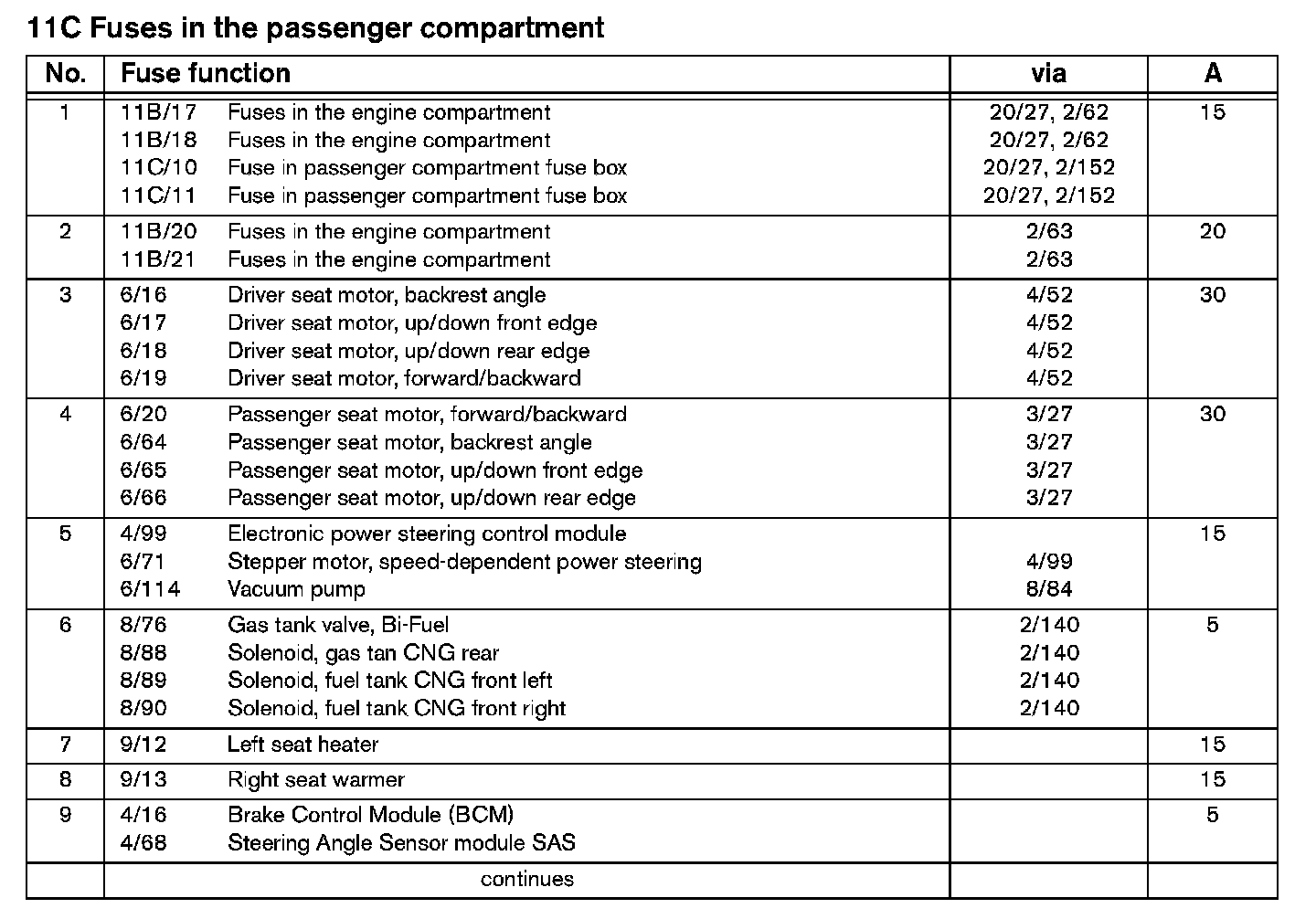

Fuses 11C/1-9:

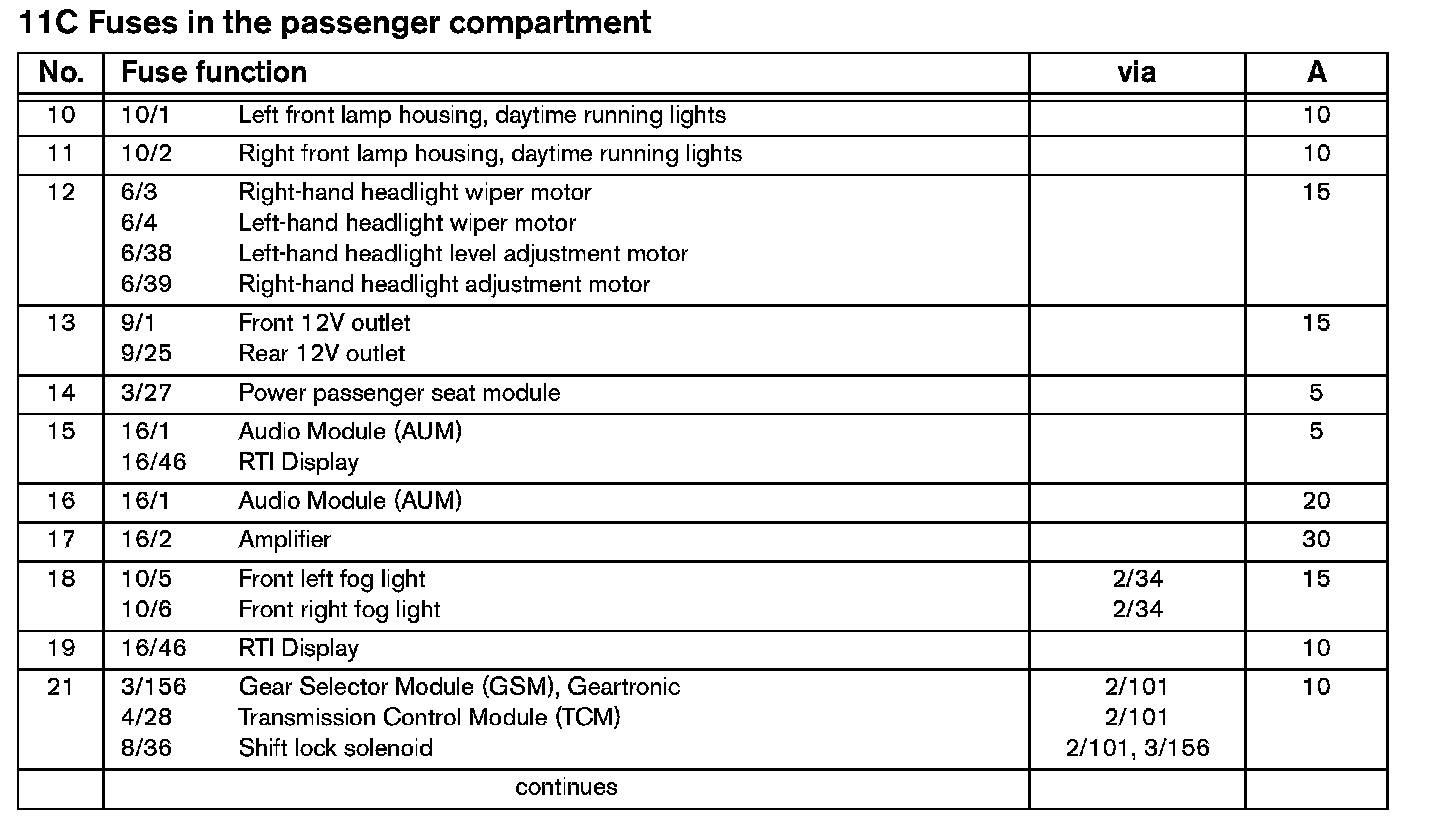

Fuses 11C/10-21:

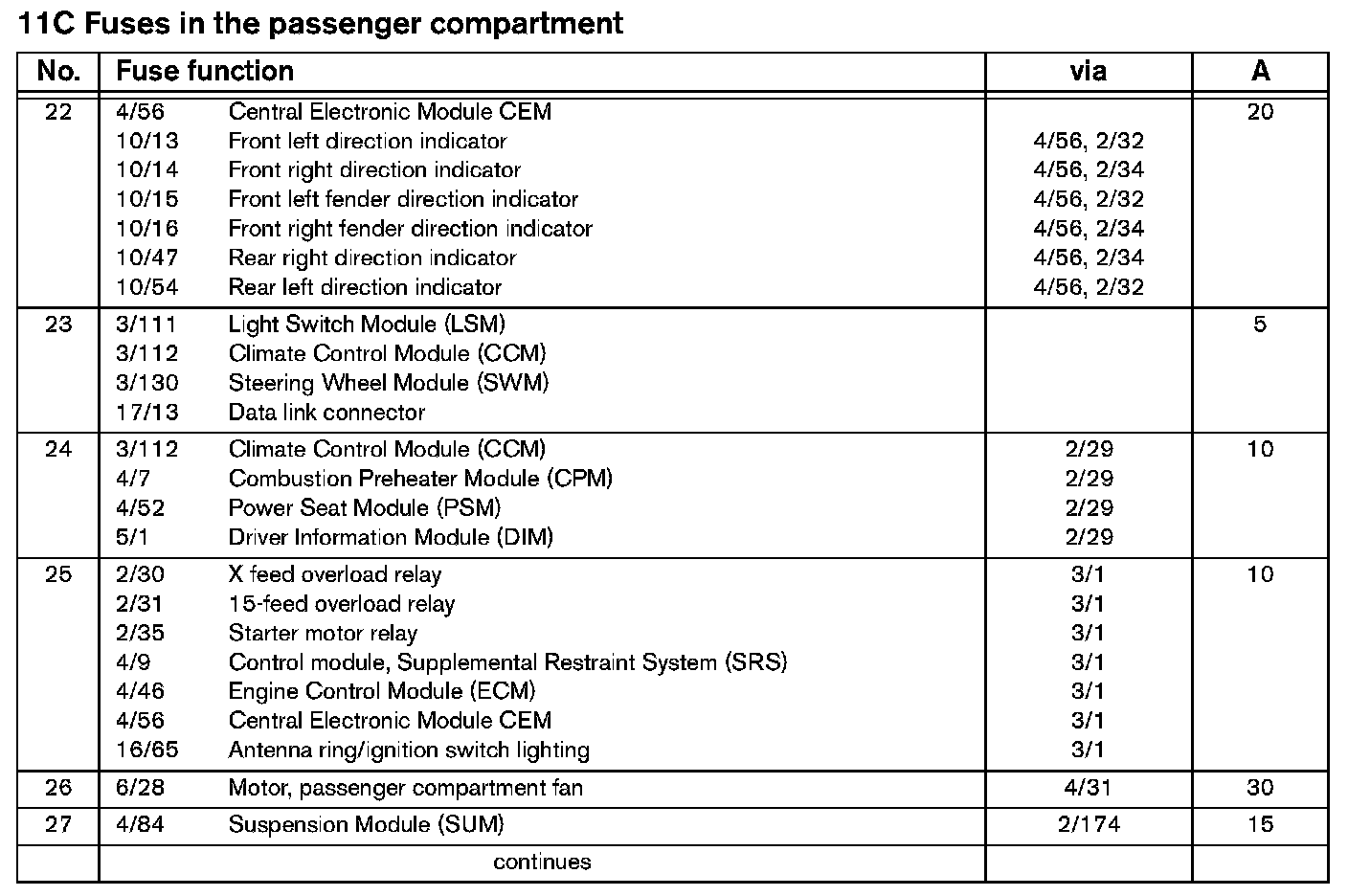

Fuses 11C/22-27:

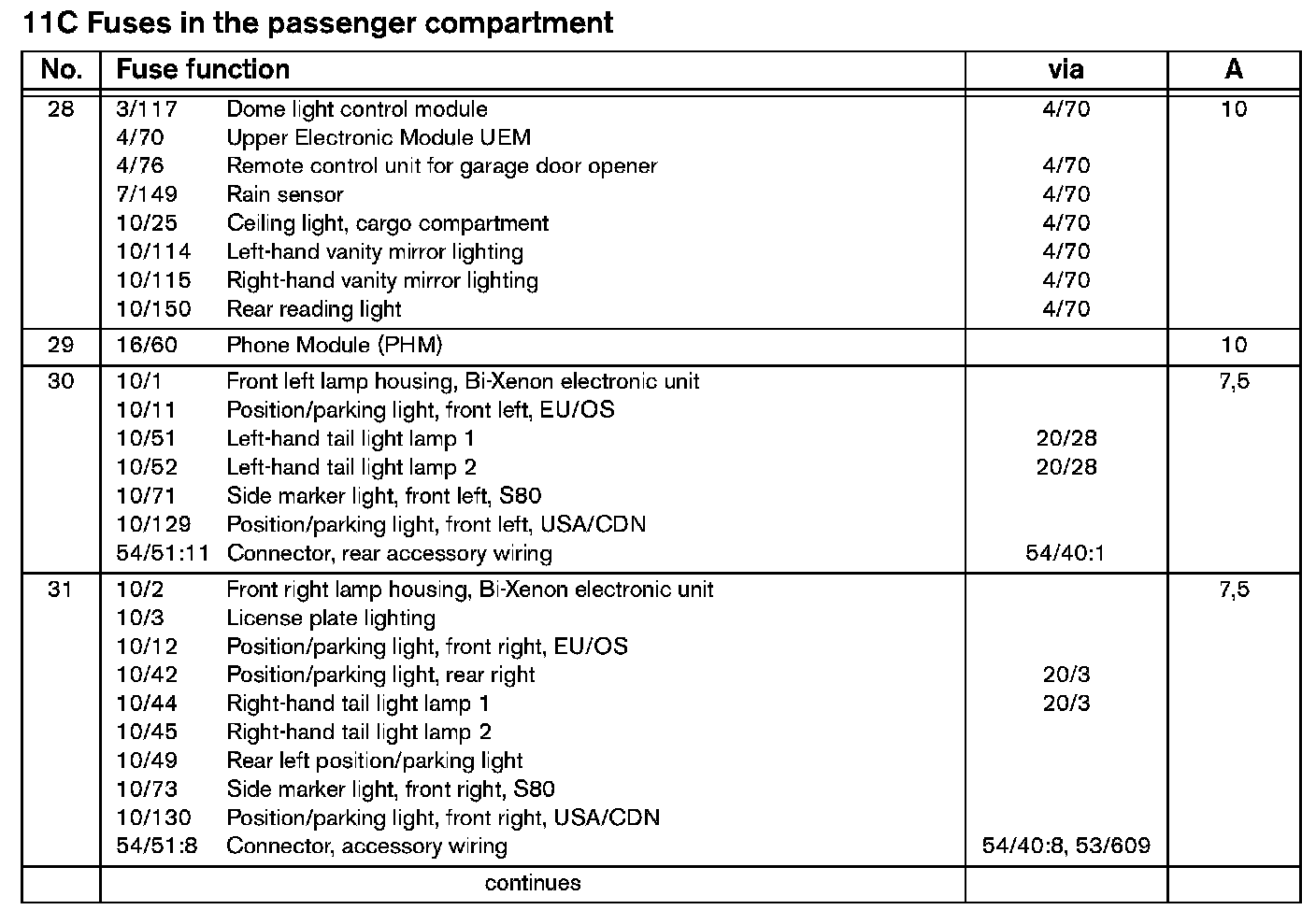

Fuses 11C/28-31:

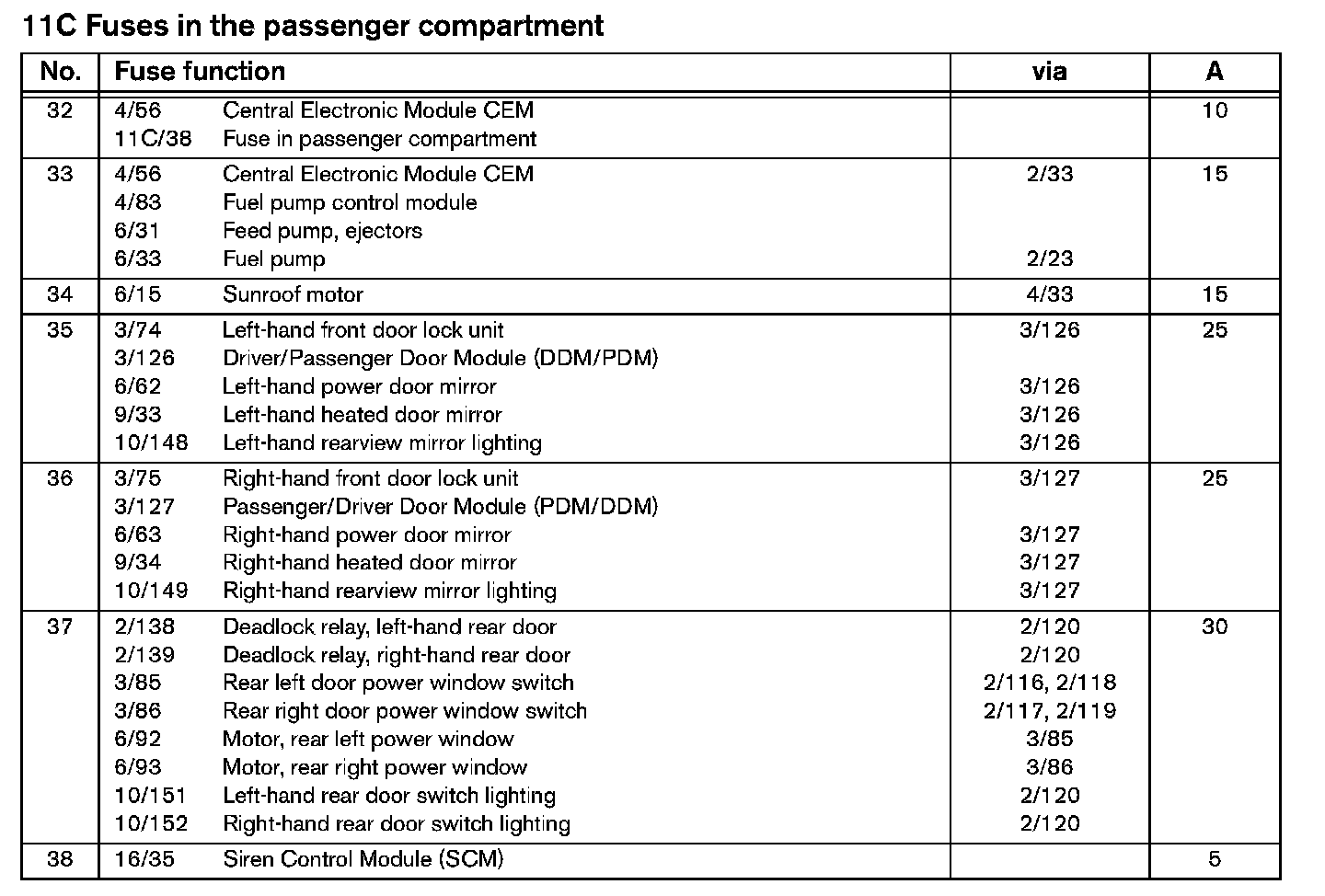

Fuses 11C/32-38:
